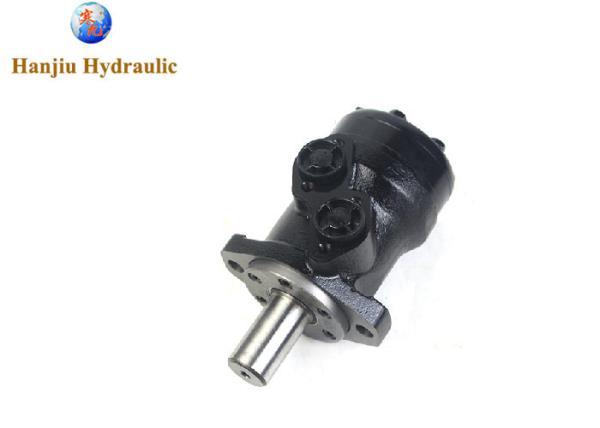

BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors
Specifications
Brand Name :
Hanjiu
Model Number :
BMR80
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
50 units
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal .
Supply Ability :
100,000 units / Year
Delivery Time :
10-15 working days
Packaging Details :
Carton packing , with a tray or wooden box if needed .
Product name :
Hydraulic Orbital Motors
Displacement :
36cc,50cc,80cc,100cc,125cc,160cc......500cc
Applications :
sweepers, road sweepers
Replacement :
Hanjiu BMR = OMR, Eaton S,T series , M+S MR etc
Max.torque :
peak 270 N.M
Max.flow :
cont 60/int.75 L/min
Description

Hydraulic orbit motor BMR-80-2-B-D motors Low Speed High Torque Motors

the oribt motors have low speed and high torque, perfect fit the machines' hydraulic systems

bring the new performance to the machines,and cut the equipments manufacturer costs.

Product details:

product type BMR motors
displacement 80cc
flange 2-φ13.5 Rhomb-flange pilot φ82.5x8
shaft 32mm key shaft
oil ports G1/2 manifold mount 4-M8,G1/4


Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors


BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors

BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors


BMR-80-2-B-D Hydraulic Orbit Motor Low Speed High Torque Motors


Hanjiu Technology supply the high-end hydraulic orbital motors, widly used on sweepers, tractor attachments, loader attachments,

we will do our best to supply the machines manufacuturers, to improve their machines hydraulic systems, cut their costs down

and provide the solutions once they meet some problmes .
