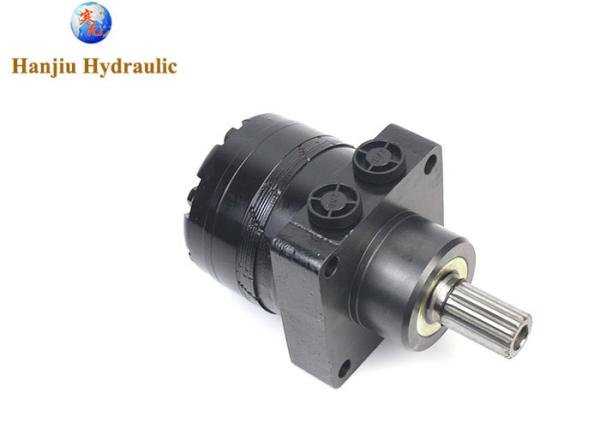

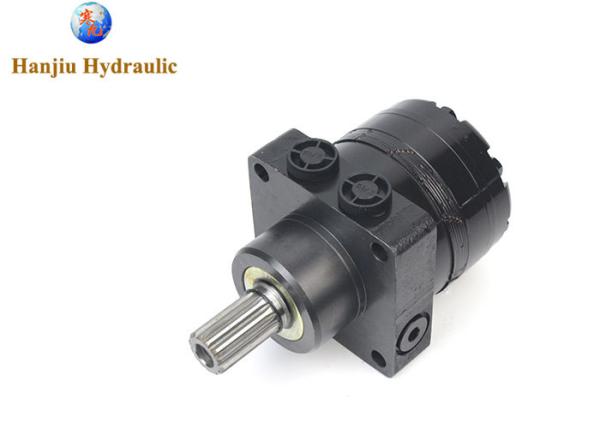

Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity
Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-250
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the seller to get a quote
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
55 work days
Packaging Details :
Box, Pallet
Item :
orbital motor
OEM # :
BMER-2
Manufacturer :
Hanjiu
Displacement :
250ml/r
Mounting flange :
wheel mounting flange
Shaft type :
14teeth spline shaft
Description

Danfoss RE series wheel motors 505230W3809ABAAA spline shaft torque motor with Valve Cavity

Hanjiu technology provide the BMER Series motors, matching Danfoss RE series motors,same specificaiton ,

same performance.

Here is main specifications:

Series: Parker TG Motor
Shaft: 14teeth spline shaft
Rotation:

Standard rotation
Displacement (cm3/rev): 0230
Mounting: Wheel mounting
Geometric Displacement: 230cm3/rev (14.2 in3/rev)
Maximum Oil Flow (continuous / intermittent): 75 lpm (20 gpm) / 90 lpm (24 gpm)
Max. Differential Pressure (continuous / intermittent): 205 bar (3000 PSI) / 240 bar (3500 PSI)
Maximum Supply Pressure: 276 bar (4000 PSI)
Maximum Torque - Continuous / Intermittent: 990 Nm (8900lb-in) / 1140Nm (10250 lb-in)
Maximum Output(continuous / intermittent) 16.5 KW /19kw

Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90

90

Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity

Danfoss RE Series Wheel Motors 505230W3809ABAAA Spline Shaft Torque Motor With Valve Cavity

About Hanjiu:

Hanjiu Technology provide the low-speed and high-torque hydraulic orbital motor that we have independently developed can be used interchangeably with the following models of torqmotor Danfoss in form, fit, and function.
