Specifications
Brand Name :
HANJIU
Model Number :
Eaton Charlynn 113-1163-006
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
175 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Orbital motor, Hydraulic motor
Brand :
HANJIU
Model No. :
113-1163-006
Displacement :
500ml/r
Flange :
Wheel mount
Shaft :
1:8 45mm Tapper Shaft
Port size :
1 5/16-12UN
Drain line :
7/16-20UNF
Description

Eaton Charlynn 113-1163-006 replacement, 500cc with wheel mount, 1:8 45mm Tapper Shaft

Quick review:

BMK6-500-W-T1-SF5 = Eaton Char lynn 113-1163-006

Output volume (cc/rev): 500

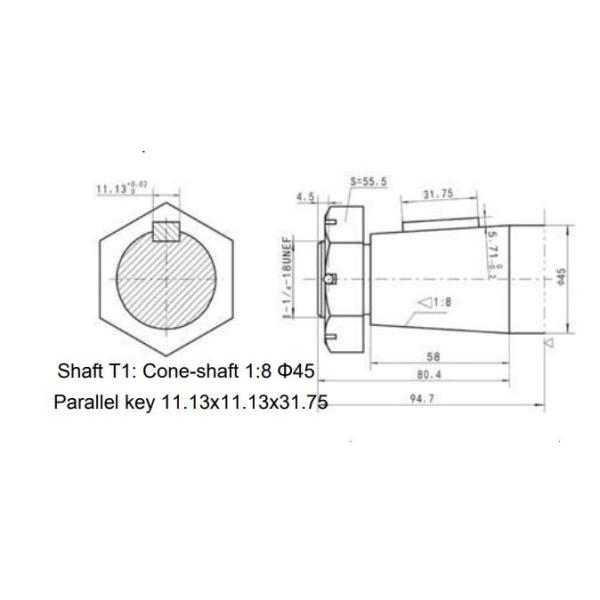

Shaft Ø (mm): 1:8 45mm Tapper Shaft
max r.p.m.: 455
Torque max. (Nm): 1880
Pressure difference (bar): 300
Volume flow max. (l/min): 225
Shaft seal version: Standard
Engine version: standard

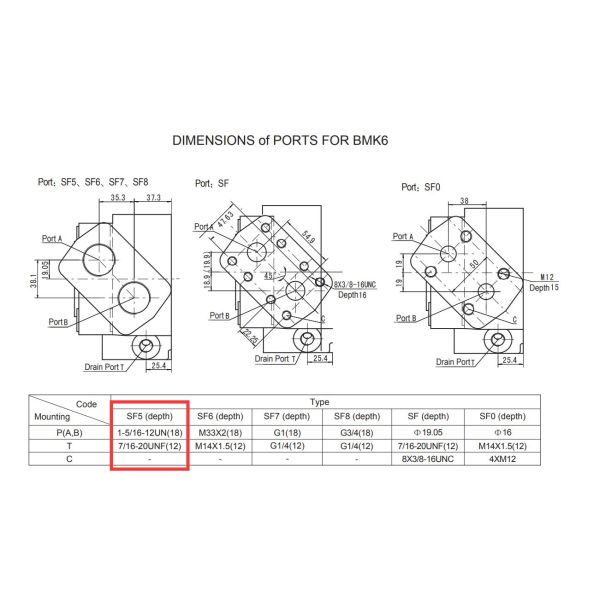

Connection: 1 5/16-12UN
Leakage oil connection: 7/16-20UNF

Main specifiction:

TYPE BMK6
200

BMK6

250

 BMK6
315		 BMK6
400		 BMK6
500		 BMK6
630

BMK6

800

BMK6

1000
Displacement(ml/r) 195.6 246.1 311.6 391.3 490.8 623 802.4 981.6
Max.speed(rpm) cont. 765 610 480 382 304 240 186 152
int. 865 830 690 570 455 360 280 230

Max.Pressure.Drop(Mpa)		 cont. 20 20 20 20 20 17.5 14 14
int. 30 30 30 30 27.5 22.5 15.5 14
peak. 30 30 30 30 30 24 17.5 17
Max.Torque(N.m) cont. 565 710 920 1160 1445 1480 1580 1675
int. 840 1080 1325 1625 1880 1890 1880 1860
Max.Flow(cont.)(L/min) cont. 150 150 150 150 150 150 150 150
int. 170 205 225 225 225 225 225 225
Weight(kg) 26.3 26.8 27.3 28 28.8 29.6 30.5 32

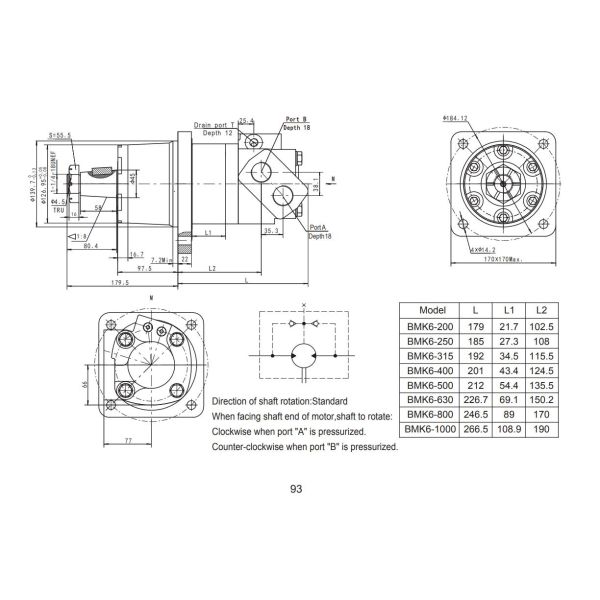

Measurement:

Eaton Charlynn 113-1163-006 Replacement 500cc With Wheel Mount 1:8 45mm Tapper Shaft

Eaton Charlynn 113-1163-006 Replacement 500cc With Wheel Mount 1:8 45mm Tapper Shaft

Eaton Charlynn 113-1163-006 Replacement 500cc With Wheel Mount 1:8 45mm Tapper Shaft

More BMK6 hydraulic motor available to compatibel with Eaton Charlynn 6000 (112-, 113-, 114-):

112-1064 112-1065 112-1066 112-1067 112-1068 112-1107 112-1145
112-1094 112-1095 112-1096 112-1097 112-1098 112-1099 112-1069
112-1058 112-1059 112-1060 112-1061 112-1062 112-1109 112-1163
112-1088 112-1089 112-1090 112-1091 112-1092 112-1093 112-1063
113-1082 113-1083 113-1084 113-1085 113-1086 113-1100 113-1087
113-1070 113-1071 113-1072 113-1073 113-1074 113-1093 113-1075
114-1031 114-1032 114-1033 114-1034 114-1035 114-1055 114-1036
114-1043 114-1044 114-1045 114-1046 114-1047 114-1048 　

Eaton Charlynn 113-1163-006 Replacement 500cc With Wheel Mount 1:8 45mm Tapper Shaft

More Char-lynn version hydraulic motors available:

Eaton Charlynn 113-1163-006 Replacement 500cc With Wheel Mount 1:8 45mm Tapper Shaft

About Hanjiu:

From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
