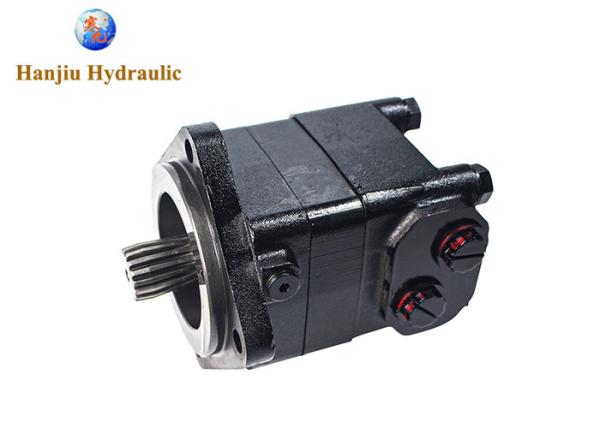

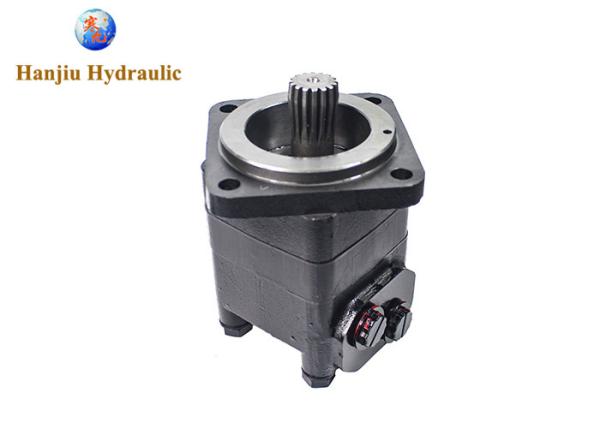

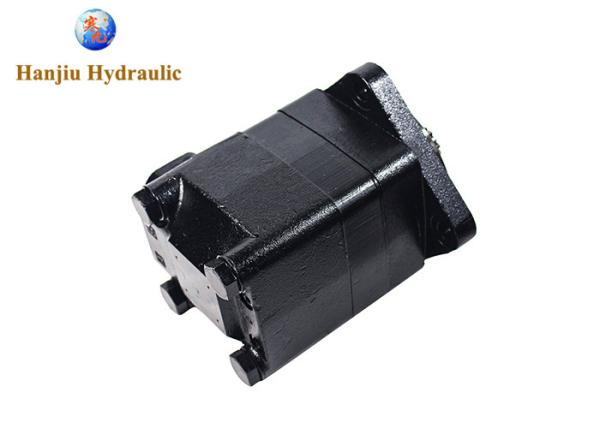

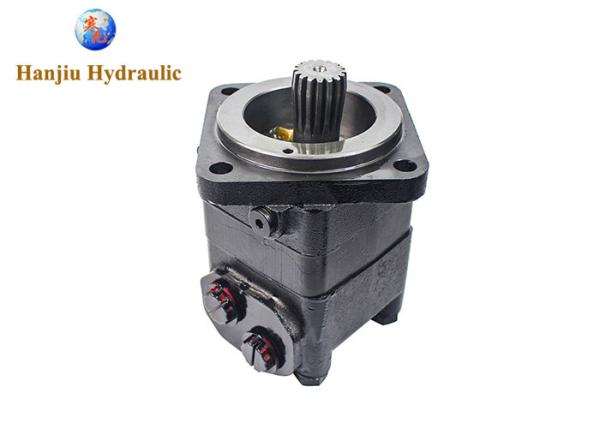

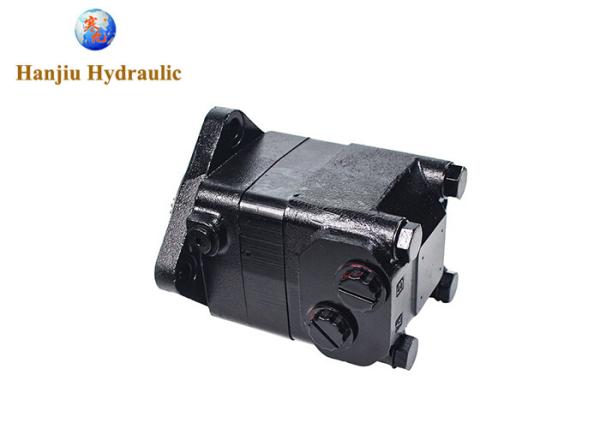

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
Specifications
Brand Name :
HANJIU
Model Number :
Eaton Charlynn 114-1080-006
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
175 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Orbital motor, Hydraulic motor
Brand :
HANJIU
Model No. :
114-1080-006
Displacement :
315ml/r
Flange :
Square flange
Shaft :
short shaft 16-DP12/24
Port size :
1 1/16-12UN O-ring
Drain line :
9/16-18UNF
Description

Eaton Charlynn 114-1080-006 replacement, 315cc with square flange, short shaft 16-DP12/24

Quick review:

BMTS-500-E-S = Eaton Char lynn 114-1080-006

Output volume (cc/rev): 315
Shaft Ø (mm): short shaft 16-DP12/24
max r.p.m.: 460
Torque max. (Nm): 1346.3
Pressure difference (bar): 280
Volume flow max. (l/min): 225
Shaft seal version: Standard
Engine version: standard
Connection: 1 1/16-12UN O-ring
Leakage oil connection: 9/16-18UNF

Main specifiction:

Main Specifications:
Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Measurement:

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24

More BMK6 hydraulic motor available to compatibel with Eaton Charlynn 6000 (112-, 113-, 114-):

112-1064 112-1065 112-1066 112-1067 112-1068 112-1107 112-1145
112-1094 112-1095 112-1096 112-1097 112-1098 112-1099 112-1069
112-1058 112-1059 112-1060 112-1061 112-1062 112-1109 112-1163
112-1088 112-1089 112-1090 112-1091 112-1092 112-1093 112-1063
113-1082 113-1083 113-1084 113-1085 113-1086 113-1100 113-1087
113-1070 113-1071 113-1072 113-1073 113-1074 113-1093 113-1075
114-1031 114-1032 114-1033 114-1034 114-1035 114-1055 114-1036
114-1043 114-1044 114-1045 114-1046 114-1047 114-1048 　

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24

More Char-lynn version hydraulic motors available:

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24

About Hanjiu:

From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.

Eaton Charlynn 114-1080-006 Replacement 315cc With Square Flange Short Shaft 16-DP12/24
