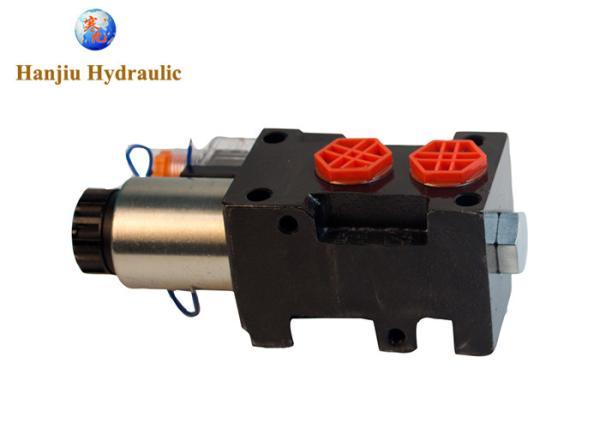

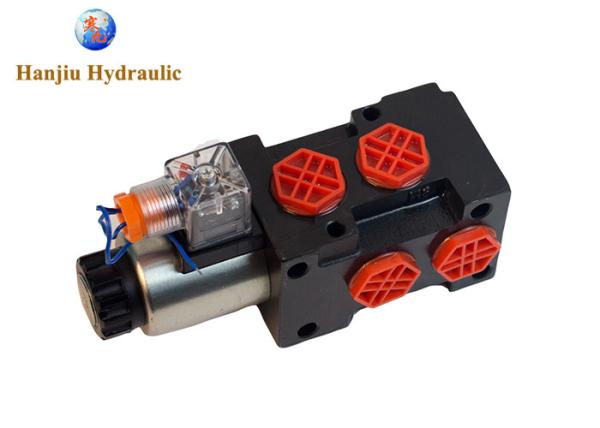

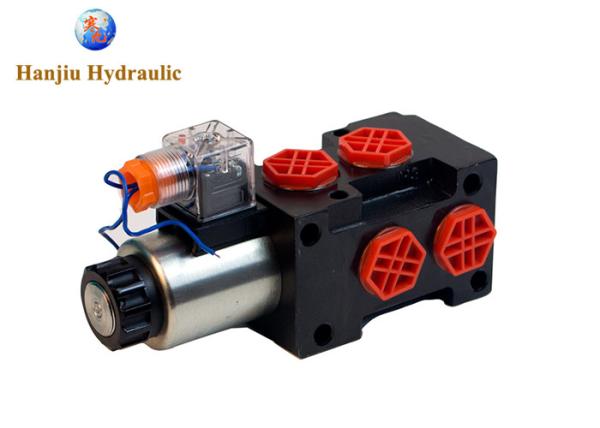

Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL
Specifications
Brand Name :
HANJIU
Model Number :
HSV6-A-1-24DL
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Contact the seller to ask
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
HSV6-A-1-24DL
Spool :
1 Spool
Nominal Pressure: :
25MPa (3625 PSI)
Max Flow: :
50L/MIN
Oil Port: :
7/8-14UNF
Voltage: :
DC12V, 3-plug
Country/Region of Manufacture: :
China
Brand: :
Hanjiu
Description

Hydraulic Solenoid Selector/Diverter Valve, 13 GPM, 24vDC HSV6-A-1-24DL

Quick Review:

MFG: HSV6-A-1-24DL

Benefits:

This solenoid operated valve allows you to easily add another hydraulic circuit to your equipment.
Works with Double or Single Acting Cylinders
Can be used on Open, Closed or FPC hydraulic systems
Stackable valves can be combined to add up to 3 additional functions
#8 SAE O-Ring ports ensure solid seal and prevent blockages
Features:

24v DC
DIN 43650 Connector (Sold Separately)
6 Ports with #8 SAE (3/4”-16) Thread
Max Operating Pressure: 3625 PSI
Flow Rating: 13 GPM
Made in China, by Hanjiu

Specification:

parameter value
Number of Work Sections from 1 to 3
Max working pressure 315 bar
Operating pressure 210 bar
Rated flow 50 l / min
Working temperature from -30 ° С to + 50 ° С
Fluid viscosity from 20 to 400 mm 2 / s
Fluid temperature from -20 ° С to + 70 ° С
Filtration Grade 9 NAS1638
Supply Voltage / Power Consumption 12VDC * / 36W and 24VDC * / 29W
Switching frequency max 15,000 times per hour
Duty cycle one hundred%

Description:

HSV6 series selection valve can be realized in the different flow pressure between the oil road switch.

Multiple directional valves can be connected to feed oil into or out of different devices. Can also be connected to the oil pump, the hydraulic oil to two different oil routes.


Ordering code

HSV6---X---X---X---X

1 2 3 4 5

1.series code

2.Model type: A/B/C

3.Number of sections:1-3( Model A,B available for stack)

4.Ports size

Code Port Thread size
P1

G1/2
P2

G3/8
P3

7/8-14UNF

5.Solenoid type

Model type

type A

Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL

Type B

Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL

Type C

Hydraulic Solenoid Selector Diverter Control Valve 13GPM 24vDC HSV6-A-1-24DL

Features:

  • Works with Double or Single Acting Cylinders.
  • Allows you to easily add an additional function to your existing hydraulic system without a lot of additional plumbing or electrical components.
  • Up to 3 valves can be manifolded together with all thread rod (not included).
