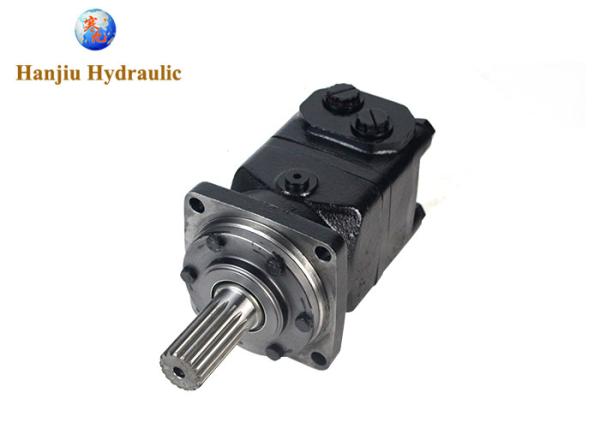

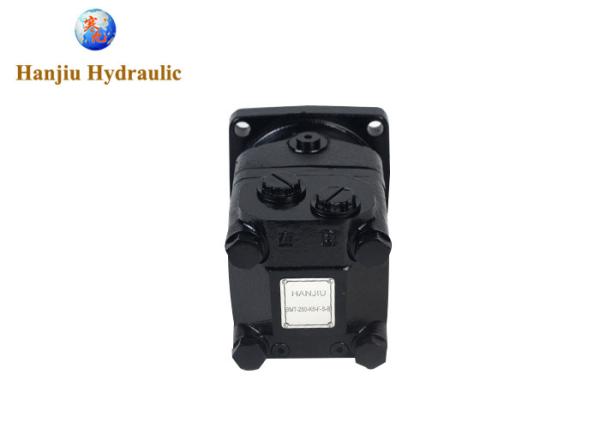

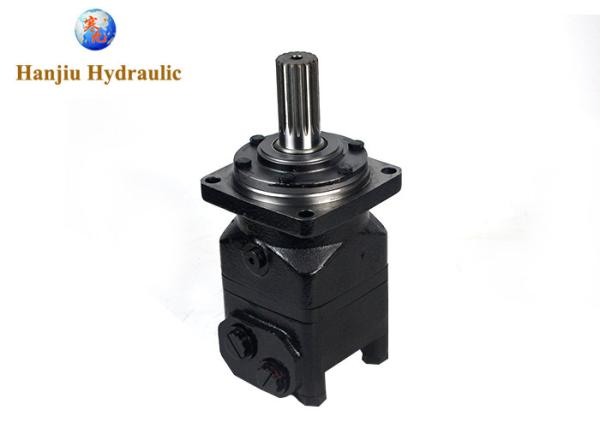

17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss
Specifications
Brand Name :
HANJIU
Model Number :
BMT250
Certification :
CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
300000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Hydraulic Drive Motor
Manufacturer :
HANJIU
Model No. :
BMT250
Size :
250ml/r,
Features :
Replace OMT, MT, 6K
Suit for :
Construction & Mining
max speed :
196rpm-233rpm
max torque :
1318N.m-1498N.m
max output :
25.3kw-27.5kw
max pressure :
14mpa-16mpa
Description

17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 for Danfoss

Replace Part number: 151B2058, OMT250-151B2058, OMT250151B2058, 151B-2058

Specification:
Motorseries: O-Series
Basic Motor: OMT
Displacement: 250
Mounting Thread Dimension: None
Shaft Style: Splined-17T
Shaft Size: 1 1/2 inch ; 3/8-16 UNC tap
Shaft Key: None
Port Size: Side port
Port Dimension: 1 1/16-12 UN
Drain Port Style: Standard
Drain port Dimension: 9/16-18 UNF

Market we serve:

  • Turf Equipment
  • Aerial
  • Agriculture Machinery
  • Construction Equipment
  • Factory Automation
  • Material Handling Equipment
  • Oil & Gas
  • Forestry Equipment
  • Mining

Specifications:

Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

MOUNTING DIMENSIONS OF OMT HYDRAULIC ORBIT MOTOR
Displacement
OMT160, OMT200, OMT230, OMT250, OMT315, OMT315, OMV400, OMV500, OMV630, OMV800.
Shaft
Cylindrical Shaft Ø40, Ø38.1, Ø31.75. Splined Shaft Ø38.1, Ø34.85. Cone Shaft Ø45
Ports
G3/4 Manifold 4-M10, G1/4. G3/4,G1/4. M27×2 Manifold 4-M10, M14×1.5
Flange
4-Ø14 Square-flangeØ160, pilot Ø125×9, 4-Ø18Wheel-flange Ø200, pilot Ø160×7
Applications
Crane, Mixer, Winches, Excavator, Conveners, Drill Rig, Concrete Truck Mixer.
Warranty
One year

17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss



17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 For Danfoss

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
