Specifications
Brand Name :
HANJIU
Model Number :
BMM-32-MAE
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
67 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
0 - 35 work days
Packaging Details :
box, pallet
Product :
Orbital Hydraulic Motor
Model No. :
BMM-32-MAE
Size :
32 ml/r
Flange :
3-M6 Circle-flange, pilot Ø31.5×5
Shaft :
Shaft Ø16, parallel key 5×5×16
Rotation :
Clockwise
Port :
G3/8, G1/8
Features :
Danfoss OMM32 interchangeable
Description

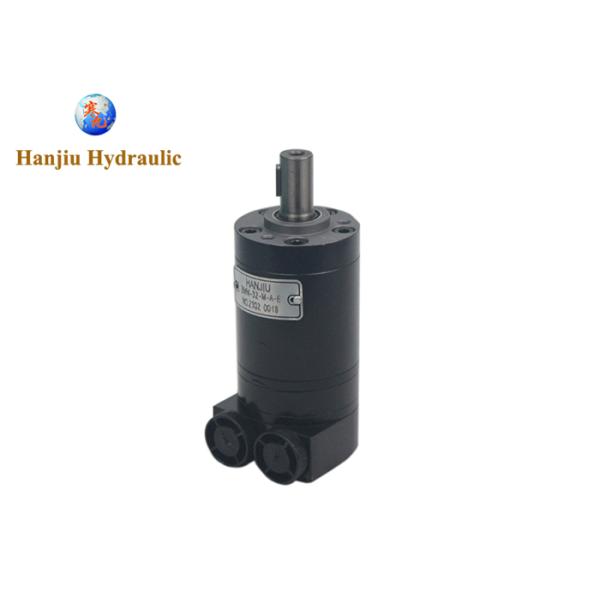

Orbital Hydraulic Motor OMM32-151G0006 BMM-32-MAE Compatible with Danfoss

Quick review:

Hanjiu BMM = Danfoss OMM

Model Number:

BMM-32-MAE

Details:

Product Orbital Hydraulic Motor
Model No. BMM-32-MAE
Size 32 ml/r
Flange 3-M6 Circle-flange, pilot Ø31.5×5
Shaft Shaft Ø16, parallel key 5×5×16
Rotation CCW
Port G3/8, G1/8
Features Danfoss OMM32 interchangeable

Specification:

type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)
rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)
rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)
rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4

Orbital Hydraulic Motor OMM32-151G0006 BMM-32-MAE Compatible With Danfoss

Orbital Hydraulic Motor OMM32-151G0006 BMM-32-MAE Compatible With Danfoss

OMM32 motor is an innovative motor designed for various industrial applications. With its advanced features and capabilities, the OMM32 motor offers exceptional performance and efficiency.

The OMM32 motor is built with high-quality materials, ensuring durability and reliability. It is designed to withstand harsh operating conditions, making it suitable for use in industries such as manufacturing, construction, and agriculture.

One of the key features of the OMM32 motor is its high power output. It delivers a significant amount of torque, allowing it to efficiently drive heavy machinery and equipment. This makes it an ideal choice for applications that require a strong and reliable power source.

Another notable feature of the OMM32 motor is its energy efficiency. It is designed to minimize energy consumption, resulting in lower operating costs. This not only benefits businesses by reducing electricity bills but also contributes to a greener environment by reducing carbon emissions.

The OMM32 motor is also known for its compact size and lightweight design. This makes it easy to install and integrate into various systems. Its small footprint allows for flexible installation options, even in tight spaces.

Furthermore, the OMM32 motor is designed for ease of maintenance. It requires minimal upkeep, reducing downtime and ensuring continuous operation. This feature is particularly beneficial for industries where downtime can result in significant financial losses.

In conclusion, the OMM32 motor is a reliable and efficient motor designed for industrial applications. Its advanced features, high power output, energy efficiency, compact size, and ease of maintenance make it a preferred choice for businesses across various industries. Whether it is driving heavy machinery or powering equipment, the OMM32 motor delivers exceptional performance, ensuring smooth operations and maximum productivity.

HANJIU Technology’s Orbital Motor is internationally renowned

More O series motors available

DANFOSS Hydraulic Motors
  • OMM
  • OMP
  • OMR
  • OMS
  • OMH
  • OMT
  • OMV

Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
