Specifications
Brand Name :
HANJIU
Model Number :
BMRS-250-H6-S-G-N1
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
50 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
0 - 35 work days
Packaging Details :
box, pallet
Product :
Orbital Hydraulic Motor
Model No. :
BMRS-250-H6-S-G-N1
Size :
250 ml/r
Flange :
4-Ø13.5Rhomb-flange, pilot Ø82.5×2.8
Shaft :
Sub-shaft Ø25.4,splined tooth SAE 6B
Rotation :
Clockwise
Port :
G1/2, G1/4
Features :
Danfoss OMM interchangeable
Description

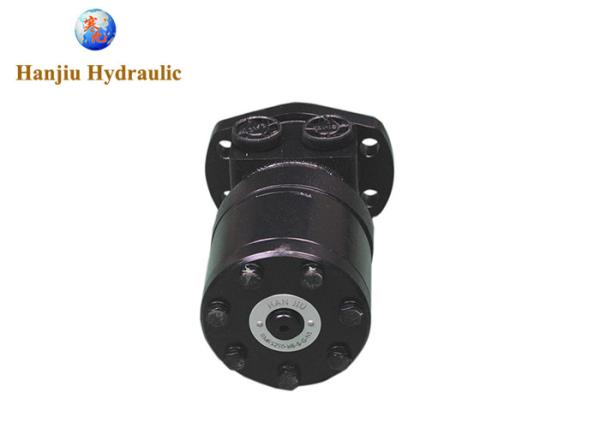

Needel bearing Engine OMR 250, 250ml/r, 4 bolt flange, SAE 6B shaft, big radial force with needle bearing


Quick review:

Hanjiu BMM = Danfoss OMR

Model Number:

BMRS-250-H6-S-G-N1

Details:

Product Orbital Hydraulic Motor
Model No. BMRS-250-H6-S-G-N1
Size 250 ml/r
Flange 4-Ø13.5Rhomb-flange, pilot Ø82.5×2.8
Shaft Sub-shaft Ø25.4,splined tooth SAE 6B
Rotation Clockwise
Port G1/2, G1/4
Features Danfoss interchangeable

Specification:

Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Technical data for BMR with 31.75 and 32 shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Needel Bearing Engine OMR 250 Danfoss Motor 250ml/R 4 Bolt Flange SAE 6B Shaft Big Radial Force

BMR series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation
