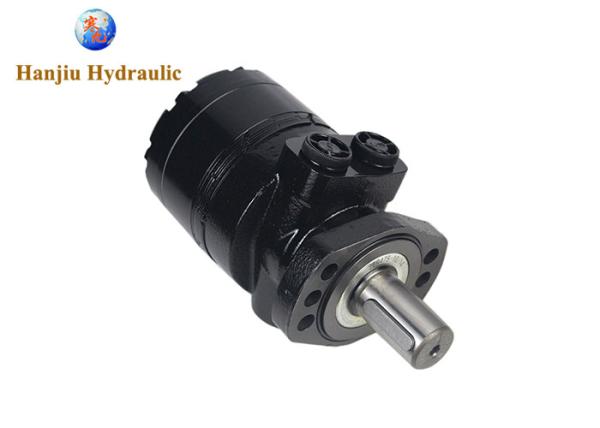

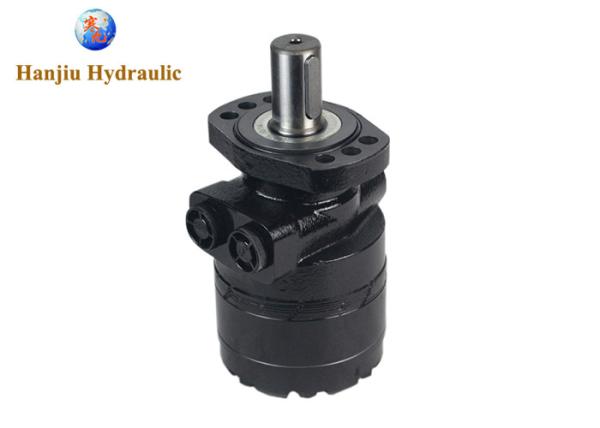

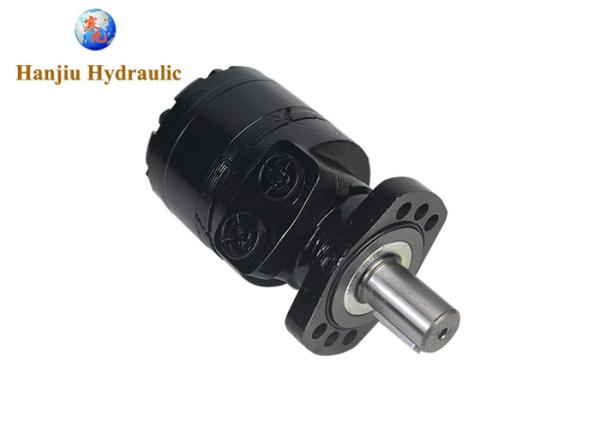

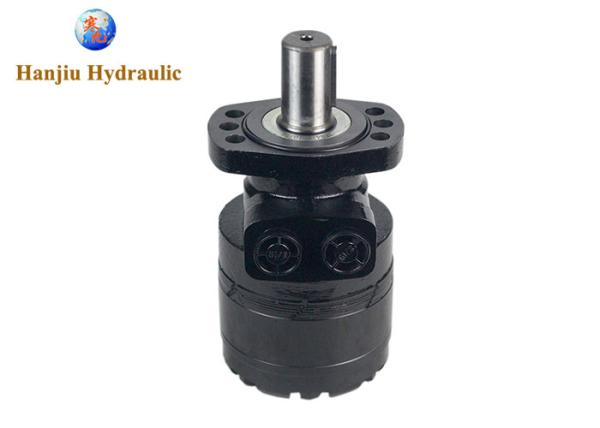

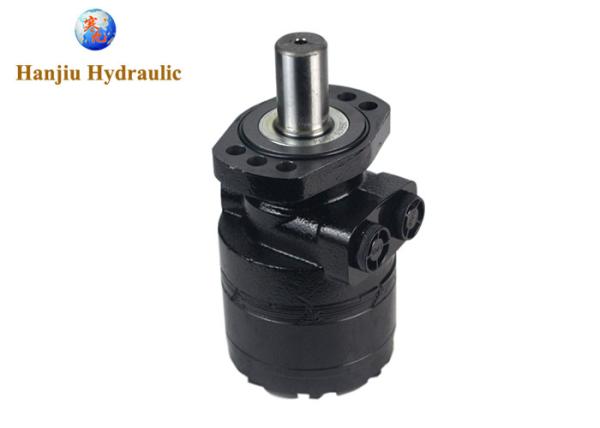

BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft
Specifications
Brand Name :
HANJIU
Model Number :
BMER-2-475-FD-M1
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
170 usd/pc
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Low Speed High Ttoque Hydraulic Motor
Model No. :
BMER-2-475-FD-M1
Size :
475 ml/r
Flange :
6-bolt Magneto
Shaft :
35mm
Rotation :
CCW
Port :
1/2 BSP
Manufacturer :
Hanjiu
Description

BMER-2 Hydraulic Motor, 475ml/r 6-bolt Magneto Flange 35mm straight shaft

Quick review:

Model no.: BMER-2-475-FD-M1

displacement 475 ml/r
flange 6-13.5 magneto mount
pilot 82.55*2.8
ports 1/2 BSP
output shaft 35mm parallel key
rotation standard
paint black

BMER series motor adapt the advanced Geroler gear set designed with high speeddistribution flow and high pressure,and have good stability in low speed , and can keep highvolume efficiency. The unit can be supplied the individual variant in operating multifunction inaccordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure ofstart-up, provide smooth and reliable operation and high efficiency.
*The output shaft adapts in needle roller bearings that permit high axial and radial forces.The Caase can offers capacities of high pressure and high torque in the wide of applications.
*Advanced design in high speed distribution flow, which can automatically compensate inoperating with high volume efficiency and long life , provide smooth and reliable operation.
*Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster thanshaft speed. lt make the distribution in a high precision reduces life-cycle cost,maintain highvolume efficiencies and can run very smoothly at low speed, gear box not required.

Specification:

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90

BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft

More BMER series motors available:

BMER-2 Hydraulic Motor 475ml/R 6-Bolt Magneto Flange 35mm Straight Shaft

About Hanjiu:
We are HANJIU from China, Hanjiu manufactures hydraulic motors. Europe, North America, South America importers, dealers and users love to sell and use Hanjiu's Disc valve motors as Eaton Char-lynn compatible motors. The quality of Hanjiu's motors can meet the needs of users, and the price is low for importers. Importers can sell at a good price and get a good profit. At the same time, their customers have a high return rate.
We specialize in Eaton Char-lynn replacement/alternative/compatible motors
We specialize in Sauer Danfoss replacement/alternative/compatible motors
We specialize in Parker replacement/alternative/compatible motors
We specialize in Brevini replacement/alternative/compatible Motors
We are good at M+S replacement/alternative/compatible motor
