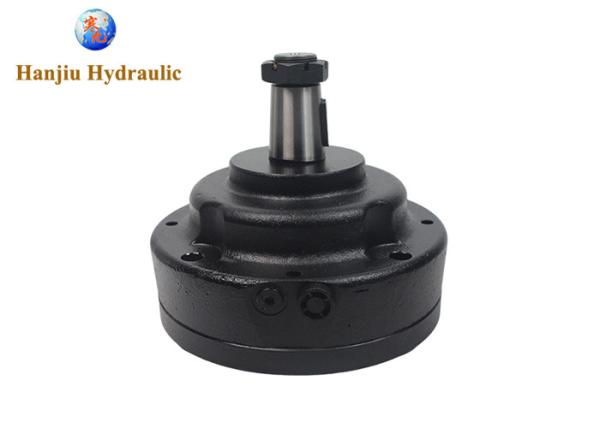

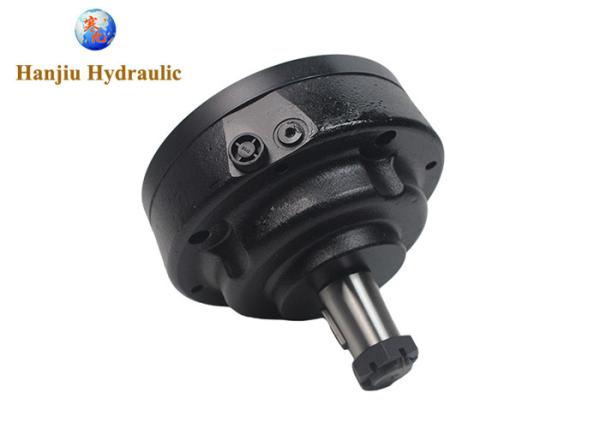

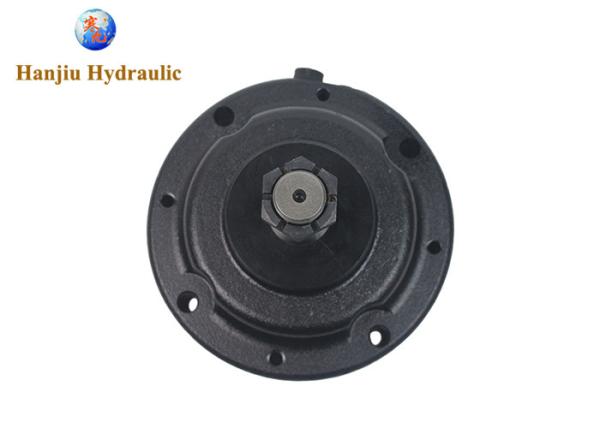

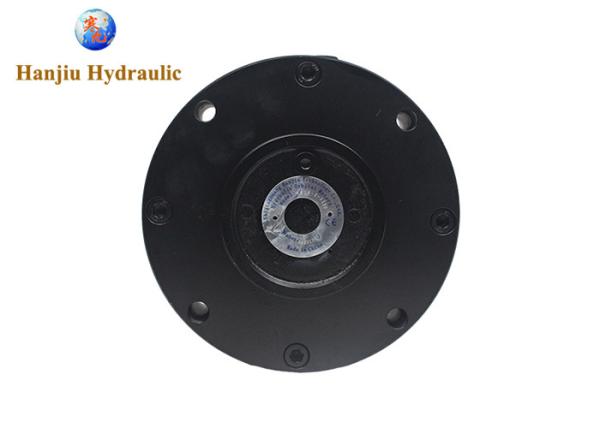

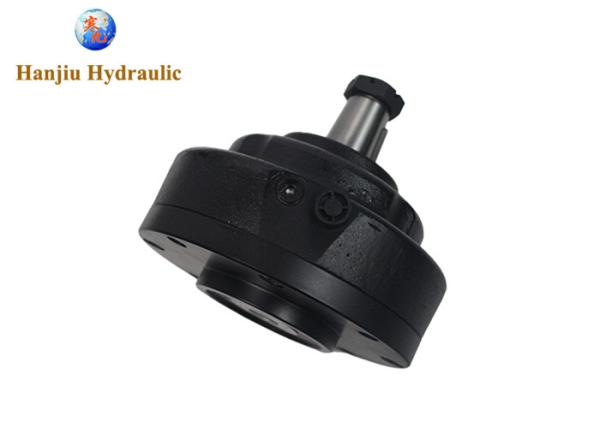

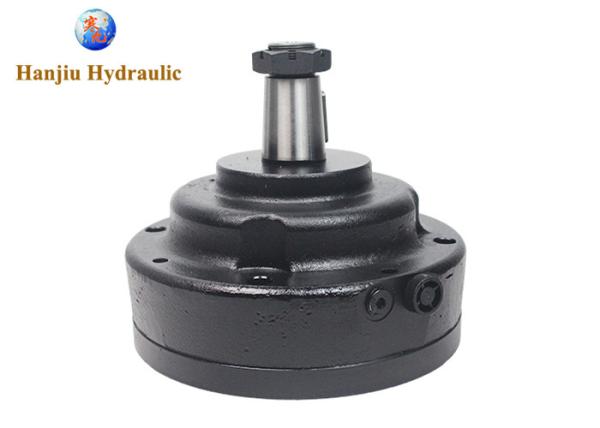

Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine
Specifications
Brand Name :
HANJIU
Model Number :
BK10-1-1150-T31-S1
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
70 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
100000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
1 pc/ inner carton, carton/ pallet
Type :
Hydraulic Motor Brake
Brand :
HANJIU
Model No. :
BK10-1-1150-T31-S1
Min static torque :
1150 Nm
Release Pressure :
2.8 MPa
Max release pressure :
21 MPa
Max Speed :
300 rpm
Release Volume :
12cm3
Max pressure in drain space :
0.05 MPa
Application :
Scissors aerial work platform and agriculture machine
Description

Quick details:

BK10 series hydraulic brake.

Type, Hydraulic Motor Brake
Brand, HANJIU
Model No., BK10-1-1150-T31-S1
Min static torque, 1150 Nm
Release Pressure, 2.8 MPa
Max release pressure, 21 MPa
Max Speed, 300 rpm
Release Volume, 12cm3
Max pressure in drain space, 0.05 MPa
Application, Scissors aerial work platform and agriculture machine

BK10 introduction:
BK10 series static wet hydraulic brake is suitable for lower speed application of scissors type aerial work platform and agricultural machinery and others with wheel mounting.

Feature:
* The output shaft adopts the same heavy duty roller bearing in front and behind, which is bigger ability on radial load.
* It adopts optimized disc brake piece and spring load, for reliable braking and good endurance.
* Optimizing piston and loading mechanism, to provide the minimum dimension of wheel connection method.
* With double braking release port, in order to discharge the braking cylinder gas or external brake fluid.
* Big braking torque, suitable for static braking

How to extend the service life of the brake system:

In order to make the BK10 series brake work under the best situation, we recommend the normal requirements as follows:

  • Assembly: 1st of all , we have to mount the brake BK10 with hydraulic motor, and then fill the brake with lubrication oil through the drain port, and then mount with other parts.
  • Fluid type:Mineral based-HM(GB/T763.2-87) (ISO6743/4) or HLP(DIN51524).
  • Temperature range:normal -20℃-90℃the best optimal situation 20℃-60℃
  • Viscosity range: 20~75mm2/s; the best optimal situation 42~74mm2/s at 40℃.
  • Filtration:nominal filtration of 25 micron, ISO code 20/16.
  • Maintenance: changed after the first 50~100h;then after every 500~1000h.

Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture MachineBrake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine

Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine

Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine

Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine

Brake Motor BK10 Static Torque Suit Scissors Aerial Work Platform And Agriculture Machine

Our Company:


Hanjiu Technology Co.,ltd. specializes in the design, research and development, manufacturing, sales and export of hydraulic cycloidal motors and brake motors. It is a well-known hydraulic brand in China and the world. Serving customers in all regions of the world, we have a wide range of types and varieties, which can best meet the needs of various regions, industries and customers.

If you are an importer or distributor of hydraulic products and want to find more suitable manufacturers and partners to make your business more competitive, please contact me. As long as you have strength, good sales channels, and With the determination and goal to open up the market, we are willing to work with you to achieve win-win strategic cooperation. Regardless of product, quality, price, after-sales service, or delivery time, we can satisfy your customers.

Looking forward to hearing from you.

Specification Data of Hydraulic Motors
Distribution type Model Displacement Max. operating pressure Speed range Max. output power
(cm3/rev.) (MPa) (rpm) (kW)
Axial distribution BMM 8-50 14 30-1950 3.2
BMP 36-400 16.5 30-879 10
BMR 36-375 20 30-970 15
BMH 200-500 20 30-430 17
Specification Data of Hydraulic Motor
Distribution type Model Displacement Max. operating pressure Speed range Max. output power
(cm3/rev.) (MPa) (rpm) (kW)
Disc distribution BMS 80-475 22.5 30-800 24
BMT 160-800 24 30-705 35
BMV 315-800 28 10-446 43
