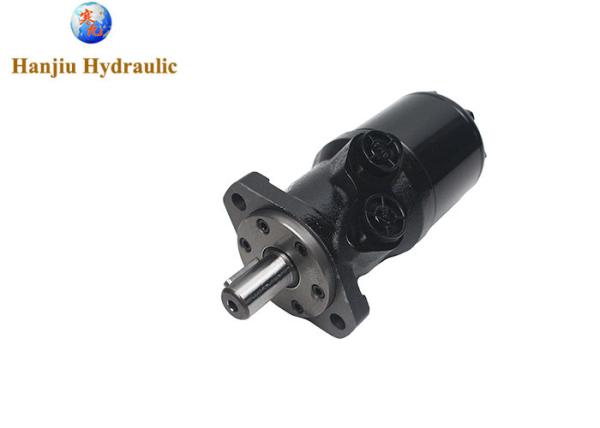

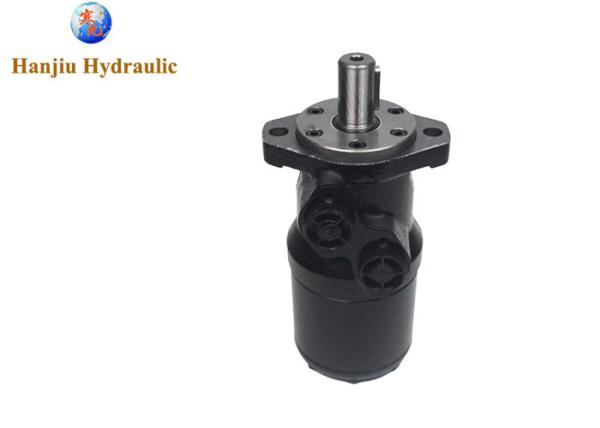

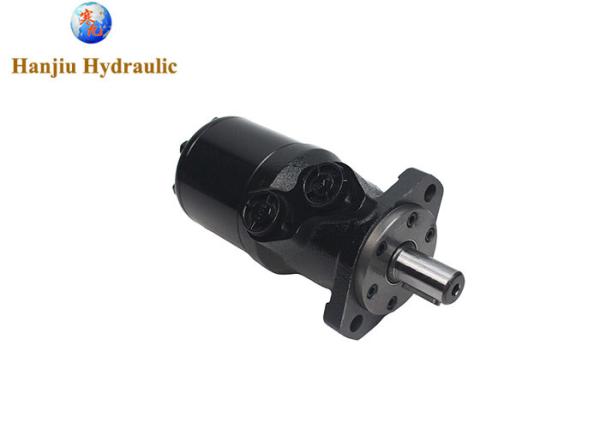

DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor
Specifications
Brand Name :
Hanjiu
Model Number :
BMR400
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
50 units
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal .
Supply Ability :
100,000 units / Year
Delivery Time :
10-15 working days
Packaging Details :
Carton packing , with a tray or wooden box if needed .
Product name :
Hydraulic Orbital Motors
Displacement :
400CC
Applications :
sweepers, augers,trenchers,bale wrappers
Replacement :
Hanjiu BMR = OMR, Eaton S,T series , M+S MR etc
ports size :
G1/2
shaft :
25mm key shaft
Description


DANFOSS OMR400 Orbital motor, 25mm straight key shaft, standard type hydraulic motor

Product details:

product type BMR 400 spool valve motor
displacement 400cc
flange 2-φ13.5 Rhomb-flange pilot φ82.5x8
shaft 25mm key shaft
oil ports G1/2 manifold mount 4-M8,G1/4


Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic MotorDANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor

DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor


DANFOSS OMR400 Orbital Motor 25mm Straight Key Shaft Standard Type Hydraulic Motor

Replace DANFOSS No

151F-0500 151F-0522 151F-2206 151F-2242 151F-2305 151F-2327 151F-2354
151F-0501 151F-0523 151F-2207 151F-2243 151F-2306 151F-2328 151F-2355
151F-0502 151F-0524 151F-2208 151F-2244 151F-2307 151F-2329 151F-2356
151F-0503 151F-0525 151F-2209 151F-2245 151F-2308 151F-2330 151F-2357
151F-0504 151F-0526 151F-2210 151F-2246 151F-2309 151F-2331 151F-2358


Replace Eaton/Char-Lynn

104-1001 104-1032 104-1066 104-1198 104-1376 104-1421 105-1060
104-1002 104-1033 104-1067 104-1199 104-1377 104-1422 105-1071
104-1003 104-1034 104-1068 104-1200 104-1378 104-1423 105-1072
104-1004 104-1035 104-1087 104-1201 104-1379 105-1001 105-1073
104-1005 104-1037 104-1088 104-1202 104-1380 105-1002 105-1074

Replace M+S Hydraulic

MS 80 MS 100 MS 125 MS 160 MS 200 MS 250 MS 315 MS 400 MS 475
MSS 80 MSS100 MSS 125 MSS 160 MSS 200 MSS250 MSS315 MSS 400 MSS 475
MLHS 80 MLHS100 MLHS125 MLHS160 MLHS200 MLHS250 MLHS315 MLHS 400 MLHS475
MLHSS80 MLHSS100 MLHSS125 MLHSS160 MLHSS200 MLHSS250 MLHSS315 MLHSS400 MLHSS475
MLHSW80 MLHSW100 MLHSW125 MLHSW160 MLHSW200 MLHSW250 MLHSW315 MLHSW400 MLHSW475
