Specifications
Brand Name :
HANJIU
Model Number :
BZZ1-E250
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
49 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200000 pieces per year.
Delivery Time :
15 - 25 Work Days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Product :
Hydraulic Steering Unit
Model No. :
BZZ1-E250
Displacement :
250ml/r
Brand :
Hanjiu
Description

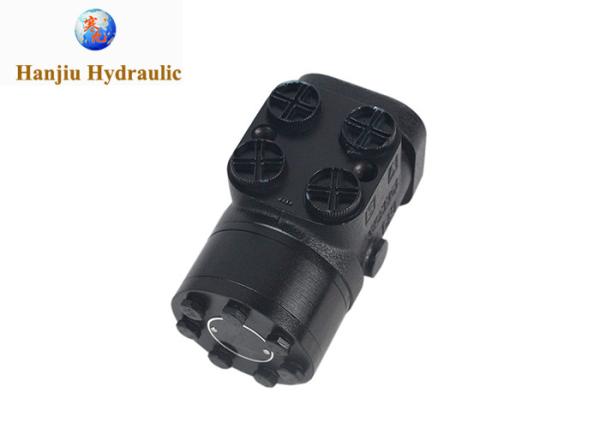

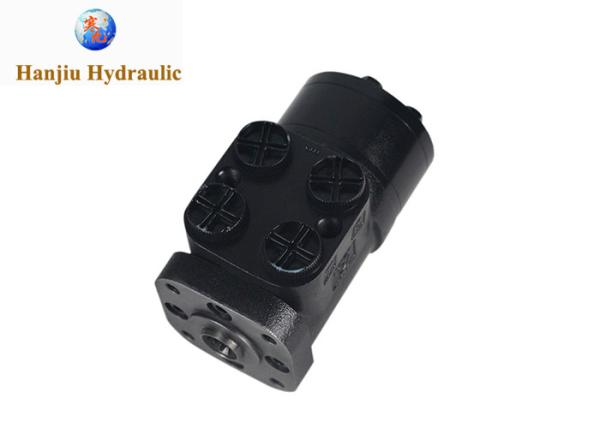

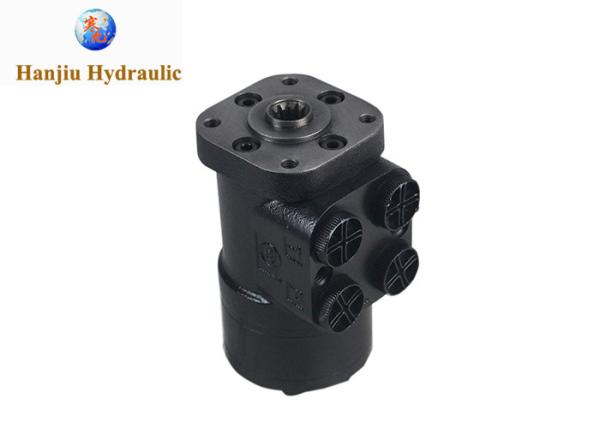

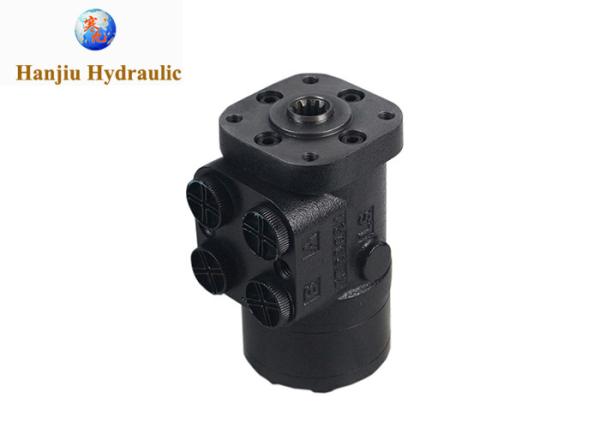

Steering Valve fit forklift, tractor, harvester and helm control, BZZ1-E250

Hydraulic Steering Unit (BZZ1, BZZ2, BZZ3)

Hydraulic steering control units (BZZ)
BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Widely applied to low speed and heavy load vehicles E.g. construction machinary, forklift, tractor, harvester and helm control etc.

The advantages of the hydraulic steering control units:

  • 1.Low cost, reliable.
  • 2.No load reaction on the steering wheel comfortable.
  • 3.Manual operation available when the pump doesnt work.
  • 4.Low control torque, continuous operation.
  • 5.According to the system, different function and pressure level valves available.

Type Displacement
(mL/r)		 Flow
(L/min)		 Max.input
pressure(MPa)		 Max.cont.back
pressure(MPa)		 Weight
(kg)
BZZ口-E50* 50 4 16 2.5 4.72
BZZ口-E63* 63 5 4.85
BZZ口-E80* 80 6 5.00
BZZ口-E100* 100 7.5 5.27
BZZ口-E125* 125 9.5 5.43
BZZ口-E160* 160 12 5.75
BZZ口-E200* 200 15 6.08
BZZ口-E250* 250 19 6.48
BZZ口-E280* 280 21 6.78
BZZ口-E315* 315 24 7.13
BZZ口-E400* 400 30 7.78
BZZ口-E500* 500 38 8.67
BZZ口-E630* 630 48 9.72
BZZ口-E800* 800 60 11.18
BZZ口-E1000* 1000 75 12.80

Note 1: represents Function Code, BZZ2 can be chosen for SCU with the displacement of 50-200mL/r. BZZ1 or BZZ3 can be chosen for SCU with the displacement of 50-1000mL/r.
Note 2: “Flow” that we suggest to use is the flow of 1.25 times as much as that at the steering wheel’s rotation speed of 60 r/min. If the design of the system can't meet the requirements, the flow is allowed to be adjusted a little bit.
