Specifications
Brand Name :
HANJIU
Model Number :
BMER-4-375-WS-T4-FYD
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
170 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
box, pallet
Product :
Hydraulic Motor
Model No. :
BMER-4-375-WS-T4-FYD
Size :
375 ml/r
Flange :
Wheel mount
Shaft :
31.75mm
Feature :
With valve cavacity on flange, no relieve valve inside
Description

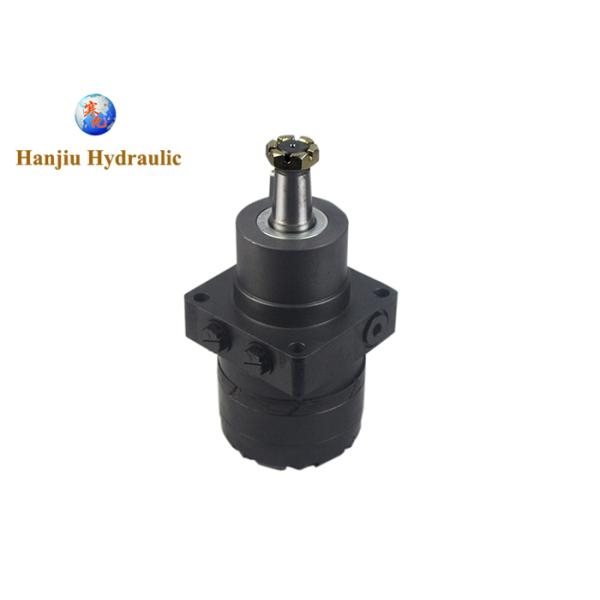

Parker TG series replacement motor with valve cavacity from China manufacturer Hanjiu

Quick review:

Hanjiu BMER = Parker TG

This BMER motor features selectable valve chamber in flange position
The valve chamber of ParkerTG motor is under the motor, while Hanjiud's design is at the flange position
Compatible with Parker TG valve chamber function in terms of performance
More compact and concise in design
Better cost control from a cost perspective
This motor is suitable for customers who pursue quality without paying too much for brand premiums.
If you are an OEM, this motor can help you obtain the necessary performance while saving unnecessary expenses.
If you are a hydraulic motor importer, this motor can complement the shortcomings of your existing products, provide your customers with another choice, demonstrate your professionalism in the field of hydraulic motors, and meet the needs of your target customer groups.

Specification:

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90

Parker Tg Series Replacement Hydraulic Motor Low Rpm ISO9001

More BMER series to match Parker TF series

More Parker replacement motor available:

  • TE
  • TB
  • TC
  • TF
  • TG
  • TJ
  • TK

Parker Tg Series Replacement Hydraulic Motor Low Rpm ISO9001

Hanjiu Technology Company production of LSHT hydraulic motors, a wide variety of types, their production of motors for the main markets of hydraulics including construction, agriculture, traditional industry, metallurgy, mining, shipbuilding and horticulture and other fields, Hanjiu company relies on its strong global distribution network to sell their products to various countries and regions, in many places can appreciate the Hanjiu technology hydraulic motors to provide fast and convenient services.
