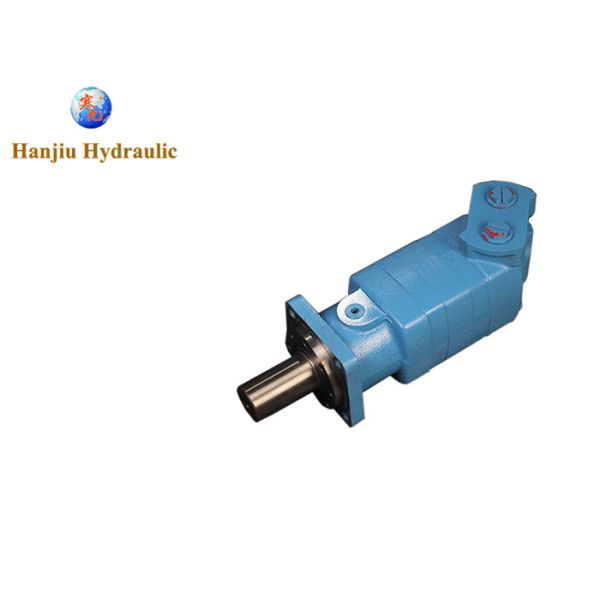

Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in
Specifications
Brand Name :
HANJIU
Model Number :
119-1042
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
350
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
35 - 45 work days
Packaging Details :
Carton, Box, Pallets
Item :
disc valve motors
Model :
119-1042-003
Displacement :
665.3 CM3/R [40.60 IN3/R]
Flange :
127.0 [5.00] PILOT DIA.
Shaft :
57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END
Port :
1.3125-12 UN-2B SAE O-RING STAGGERED PORTS
Description

Char-Lynn 10,000 Series Hyd Motor 119-1042-003 for Jaw Crusher-665cm³/r, 4-Bolt Flange, Straight Shaft, 2-1/4in

  • Corrugated Jaw Liner
  • Hydraulically Driven
  • Char-Lynn 10,000 Series Hyd Motor
  • 119-1042-003

SPECIFICATIONS
Series 10000 - Standard type
Displacement 665 cm³/r
Mounting Type 4-Bolt Flange - 5 in Pilot
Shaft Type Straight
Output Shaft Size 2-1/4 in Straight - Straight Key
Overall Height 5.79 in
Overall Length 17.74 in
Overall Width 5.91 in
Seal Type Standard
Operation Mode Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute
Drain Connection Size
1 1/4 inch Split Flange

PARAMETERS

Displacement cc/rev 345 480 665 940
Max. Speed rpm 501 354 254 179
Flow lpm 170 170 170 170
Torque Nm 1040 1475 2085 2700
Press. ∆bar bar 205 205 205 190

Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4inChar Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in

Char Lynn 10000 Series Hyd Motor 119-1042-003 For Jaw Crusher 665cm³/R 4-Bolt Flange Straight Shaft 2-1/4in

Eaton similar type motors are available we belows:

  • J (129-) HANJIU BMM
  • H (101-) HANJIU BMPH
  • S (103-) HANJIU BMRS
  • T (158-) HANJIU BMRS
  • W (162-) HAJJIU BMRW
  • 2000 (104-, 105-, 106-, 193-) HANJIU BMK2
  • 4000 (109-, 110-, 111-) HANJIU BMK4
  • 6000 (112-, 113-, 114-) HANJIU BMK6
  • 10000 (119-) HANJIU BMK10
