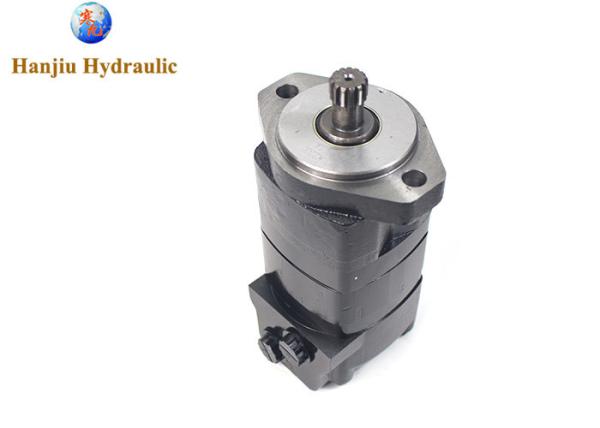

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports
Specifications
Brand Name :
HANJIU
Model Number :
BMK2-200-E2-I-SU
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
90 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
10000 pieces per year
Delivery Time :
35 - 45 work days
Packaging Details :
1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Type :
Orbital motor, Hydraulic motor
Brand :
HANJIU
Model No. :
BMK2-200-E2-I-SU
Displacement :
200ml/r
Flange :
2 bolt SAE A
Shaft :
13 tooth shaft
Port size :
7/8-14UNF O-RING
Drain line :
7/16-20UNF
Description

hydraulic low speed high torque motor 104-1647-006 with SAE A standard mounting 13 tooth shaft,7/8 -14 O-ring ports

Quick review:

order code:BMK2-200-E2-I-SU
matching:Eaton 104-1647-006
Output volume (cc/rev): 200cc
Shaft Ø (mm): 22.22 [.875] DIA. FLAT ROOT SIDE FIT, 13 TOOTH, 16/32 DP 30 DEG. SAE B INVOLUTE SPLINE, 15.2 [.60] MINIMUM FULL SPLINE LENGTH
max r.p.m.: 576
Torque max. (Nm): 560
Pressure difference (bar): 310
Volume flow max. (l/min): 115
Shaft seal version: Standard
Ports threads: 7/8-14UNF O-RING
Leakage oil connection: 7/16-20UNF

Main specifiction:

Main Specifications:
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250 315 400 475
Geometric displacement
(cm3 /rev.)		 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports

The Charlynn 2000 motors we supply

104-1445-006 104-3001-006 104-1888-006 104-1762-006 104-1621-006
104-1446-006 104-3005-006 104-1889-006 104-1763-006 104-1622-006
104-1447-006 104-3006-006 104-1890-006 104-1766-006 104-1623-006
104-1448-006 104-3008-006 104-1891-006 104-1767-006 104-1624-006
104-1449-006 104-3009-006 104-1892-006 104-1768-006 104-1625-006
104-1450-006 104-3010-006 104-1895-006 104-1769-006 104-1626-006
104-1451-006 104-3018-006 104-1896-006 104-1770-006 104-1627-006
104-1452-006 104-3021-006 104-1897-006 104-1772-006 104-1628-006
104-1453-006 104-3022-006 104-1898-006 104-1773-006 104-1631-006
104-1454-006 104-3023-006 104-1899-006 104-1774-006 104-1632-006
104-1455-006 104-3024-006 104-1900-006 104-1775-006 104-1634-006
104-1460-006 104-3026-006 104-1900-006 104-1776-006 104-1635-006
104-1461-006 104-3028-006 104-1903-006 104-1777-006 104-1636-006
104-1462-006 104-3034-006 104-1903-006 104-1778-006 104-1637-006
104-1463-006 104-3035-006 104-1904-006 104-1782-006 104-1644-006
104-1464-006 104-3036-006 104-1905-006 104-1783-006 104-1646-006
104-1465-006 104-3038-006 104-1908-006 104-1786-006 104-1647-006
104-1467-006 104-3039-006 104-1910-006 104-1788-006 104-1649-006
104-1468-006 104-3040-006 104-1911-006 104-1789-006 104-1651-006
104-1469-006 104-3041-006 104-1912-006 104-1790-006 104-1652-006
104-1470-006 104-3042-006 104-1917-006 104-1791-006 104-1653-006
104-1471-006 104-3043-006 104-1918-006 104-1792-006 104-1654-006
104-1472-006 104-3044-006 104-1919-006 104-1793-006 104-1655-006
104-1473-006 104-3045-006 104-1920-006 104-1794-006 104-1656-006
104-1474-006 104-3046-006 104-1921-006 104-1795-006 104-1660-006
104-1475-006 104-3048-006 104-1922-006 104-1796-006 104-1662-006
104-1476-006 104-3051-006 104-1923-006 104-1797-006 104-1666-006
104-1477-006 104-3052-006 104-1924-006 104-1799-006 104-1667-006
104-1478-006 104-3053-006 104-1926-006 104-1802-006 104-1668-006
104-1479-006 104-3054-006 104-1927-006 104-1803-006 104-1671-006
104-1482-006 104-3055-006 104-1928-006 104-1804-006 104-1675-006
104-1483-006 104-3056-006 104-1929-006 104-1806-006 104-1682-006
104-1484-006 104-3057-006 104-1930-006 104-1808-006 104-1687-006
104-1487-006 104-3058-006 104-1931-006 104-1809-006 104-1688-006
104-1488-006 104-3059-006 104-1933-006 104-1810-006 104-1690-006
104-1489-006 104-3060-006 104-1934-006 104-1811-006 104-1693-006
104-1491-006 104-3061-006 104-1935-006 104-1812-006 104-1699-006
104-1492-006 104-3062-006 104-1936-006 104-1814-006 104-1700-006
104-1493-006 104-3062-006 104-1937-006 104-1815-006 104-1701-006
104-1494-006 104-3063-006 104-1938-006 104-1818-006 104-1702-006
104-1496-006 104-3064-006 104-1940-006 104-1819-006 104-1704-006
104-1497-006 104-3065-006 104-1941-006 104-1820-006 104-1709-006
104-1498-006 104-3066-006 104-1942-006 104-1821-006 104-1711-006
104-1499-006 104-3067-006 104-1943-006 104-1822-006 104-1712-006
104-1500-006 104-3068-006 104-1944-006 104-1823-006 104-1716-006
104-1503-006 104-3069-006 104-1946-006 104-1824-006 104-1716-006
104-1504-006 104-3069-006 104-1947-006 104-1830-006 104-1717-006
104-1505-006 104-3070-006 104-1948-006 104-1831-006 104-1720-006
104-1506-006 104-3071-006 104-1949-006 104-1832-006 104-1721-006
104-1507-006 104-3074-006 104-1952-006 104-1833-006 104-1723-006
104-1508-006 104-3077-006 104-1954-006 104-1835-006 104-1725-006
104-1509-006 104-3078-006 104-1958-006 104-1836-006 104-1726-006
104-1510-006 104-1560-006 104-1960-006 104-1837-006 104-1727-006
104-1511-006 104-1561-006 104-1961-006 104-1838-006 104-1728-006
104-1513-006 104-1562-006 104-1963-006 104-1840-006 104-1729-006
104-1514-006 104-1563-006 104-1964-006 104-1841-006 104-1730-006
104-1519-006 104-1564-006 104-1965-006 104-1842-006 104-1734-006
104-1520-006 104-1565-006 104-1965-006 104-1843-006 104-1735-006
104-1521-006 104-1566-006 104-1968-006 104-1844-006 104-1737-006
104-1522-006 104-1567-006 104-1969-006 104-1845-006 104-1738-006
104-1523-006 104-1568-006 104-1971-006 104-1846-006 104-1739-006
104-1524-006 104-1569-006 104-1972-006 104-1849-006 104-1743-006
104-1525-006 104-1572-006 104-1973-006 104-1850-006 104-1744-006
104-1526-006 104-1573-006 104-1975-006 104-1851-006 104-1745-006
104-1527-006 104-1574-006 104-1977-006 104-1852-006 104-1746-006
104-1528-006 104-1575-006 104-1979-006 104-1853-006 104-1747-006
104-1529-006 104-1576-006 104-1980-006 104-1854-006 104-1748-006
104-1530-006 104-1577-006 104-1981-006 104-1855-006 104-1749-006
104-1531-006 104-1578-006 104-1982-006 104-1856-006 104-1751-006
104-1532-006 104-1579-006 104-1983-006 104-1858-006 104-1755-006
104-1533-006 104-1583-006 104-1984-006 104-1859-006 104-1756-006
104-1534-006 104-1584-006 104-1985-006 104-1860-006 104-1759-006
104-1535-006 104-1586-006 104-1986-006 104-1861-006 104-1760-006
104-1537-006 104-1587-006 104-1987-006 104-1863-006 104-1761-006
104-1538-006 104-1590-006 104-1988-006 104-1865-006 104-1883-006
104-1540-006 104-1591-006 104-1989-006 104-1866-006 104-1884-006
104-1543-006 104-1592-006 104-1991-006 104-1867-006 104-1886-006
104-1544-006 104-1593-006 104-1992-006 104-1868-006 104-1887-006
104-1546-006 104-1595-006 104-1993-006 104-1869-006 104-1875-006
104-1547-006 104-1596-006 104-1995-006 104-1870-006 104-1876-006
104-1548-006 104-1597-006 104-1996-006 104-1873-006 104-1877-006
104-1549-006 104-1598-006 104-1997-006 104-1618-006 104-1880-006
104-1550-006 104-1601-006 104-1998-006 104-1619-006 104-1881-006
104-1551-006 104-1602-006 104-1999-006 104-1612-006 104-1606-006
104-1552-006 104-1604-006 104-1611-006 104-1613-006 104-1607-006
104-1553-006 104-1605-006 104-1557-006 104-1617-006 104-1608-006
104-1554-006 104-1556-006 104-1559-006 104-1620-006

More Char-lynn version hydraulic motors available:

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports

APPLICATIONS:
Swing motor Snow Removal
Brush cutters and mowers Sprayers
Directional boring Trenchers
Turf equipment Grinders and mixers
Skid steer loaders Forestry equipment
Haversters Irrigation reels

104-1647-006 Low Speed High Torque Hydraulic Motor Sae A Standard Mounting 13 Tooth Shaft 7/8 -14 O-Ring Ports

hydraulic motors are devices that convert hydraulic energy into mechanical energy. They are widely used in different industries due to their ability to generate a large amount of force and power. In addition, they offer advantages such as high torque at low speeds and their ability to adapt to small spaces. However, it is important to carry out regular maintenance to ensure its proper functioning.if you have any questions about the hydraulic motors, pls feel free to check with me!
