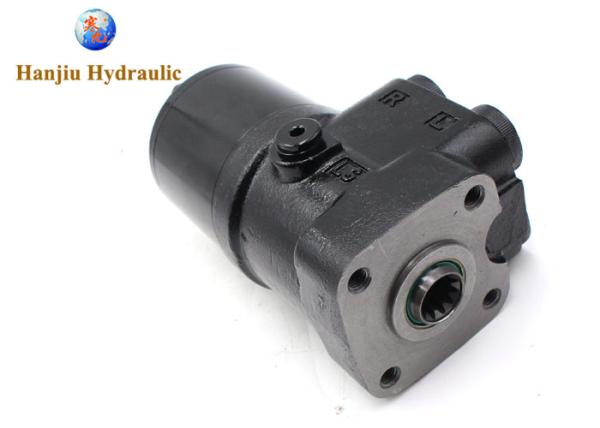

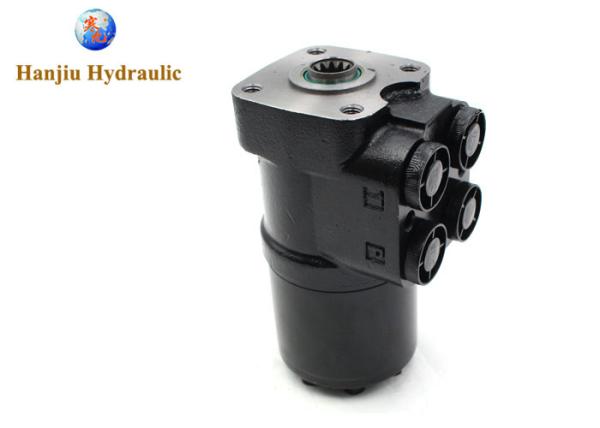

Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002
Specifications
Brand Name :
HANJIU
Model Number :
101-5T-500
Certification :
CE
Place of Origin :
CHINA
MOQ :
10 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
bulldozer HYDRAULIC PARTS
Relieve Valve :
15Mpa
Shock Valve :
21Mpa
Function :
Load sensing
Displacement :
500 ml/r
Max input speed :
75rpm
Description

hydraulic heavy machines parts bulldozer hydraulic steering units charlynn 263-4114-002

this type of hydraulic orbitrol steering units is for heavy equipment, like bulldozers,wheel loaders, backhole loaders.

earthmovers, .....

displacement:500liters

function:load sensing non reaction

crossing code:263-4114-002


Features:

  • Multi types, sizes, key or splind shafts available

  • Suitable for nearly all kinds of CARTERPILLAR,KOMATSU,DOOSAN,SHANTUI

  • Different oil port,different types of shaft, different flange can choose.

  • Many kinds of displacement, can suitable for any hydra ulic systems.

  • High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).

  • 100% replace the OEM parts,70%-80% save cost.


Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.

Specification:

Parameters Series
101S-5(T)(TE)(L)(E)-***
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400 500
Max.input speed(rpm) 100 75
Max.input pressure(Mpa) 17.5
Max.cont.back pressure 2.5
Relief Valve Pressure Settings(Mpa) 06,07,08,10,12,14,15,165,17.5
Shock Valves Pressure Settings(Mpa) 12,13,14,16,18,20,21,22,23.5
Weight(kg) 5.75 5.81 5.89 5.93 6.1 6.3 6.5 6.73 6.91 7.1 7.5 8.3
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176 183



Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002

Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002

Hydraulic Heavy Machines Parts Bulldozer Hydraulic Steering Units Charlynn 263-4114-002

related OEM parts

We also make analogue steering orbitrol of M+S, , Eaton, , New Holland, Massey Ferguson, Claas, , ...
Hanjiu OEM
101s 100 CN AL41291
AL55308
OSPC-160CN
HKUS160/7/3		 1550 (50 Series), 1640 (40 Series),
1750 (50 Series), 1850 (50 Series)
1950 (50 Series), 2040 (40 Series),
2140 (40 Series), 2250 (50 Series),
2450 (50 Series), 2650 (50 Series),
2850 (50 Series), 3040 (40 Series),
3050 (50 Series), 3140 (40 Series),
3150 (50 Series), 3340 (40 Series),
3350 (50 Series)
Hanjiu Massey FergusonOEM Massey Ferguson
101s 125 ON K207419
4WD 125cc-3/4”
HKUS125/ON		 240 (200 Series), 253 (200 Series)
261 (200 Series), 265 (200 Series)
275 (200 Series), 290 (200 Series)
298 (200 Series), 340 (300 Series)
342 (300 Series), 350 (300 Series)
352 (300 Series), 355 (300 Series)
360 (300 Series), 362 (300 Series)
365 (300 Series), 372 (300 Series)
Hanjiu Fiat OEM Fiat
101s 100 ON
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
 100-90 (90 Series), 110-90 (90 Series)
115-90 (90 Series), 130-90 (90 Series)
140-90 (90 Series), 160-90 (90 Series)
180-90 (90 Series), 55-90 (90 Series)
60-90 (90 Series), 70-90 (90 Series)
80-90 (90 Series), 85-90 (90 Series)
