Specifications
Brand Name :
HANJIU
Model Number :
BMR-bk01
Certification :
CE
Place of Origin :
China
MOQ :
20 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
300000 pieces per year
Delivery Time :
25-30 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Hydraulic Oil Motor
Brand :
HANJIU
Model No. :
BMR-bk01
Displacement :
160CC
Speed :
341 RPM - 372 RPM
Flow :
55 lpm -60 lpm
pressure :
14mpa-17.5mpa
output :
11.3-15.2kw
Description

Fluid power systems Orbit Hydraulic Motor-brake B/MR integral brake motor compact hydraulic components

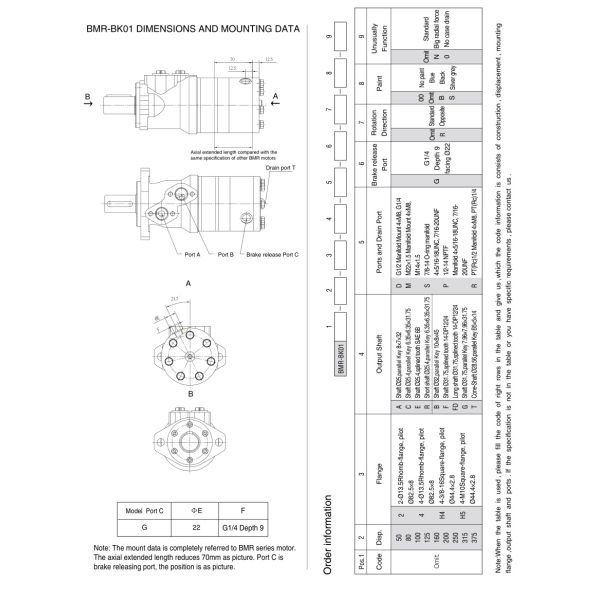

Specifications:

  1. B/MR = M+S B/MR
  2. displacement = 160cc
  3. 2= 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
  4. A = Shaft Ø25mm
  5. D = G1/2 Manifold Mount, 4-M8, G1/4

Shijiazhuang hanjiu technology is strong at motor produce, type , Eaton, Char-lynn, Parker, White, Brevini, TRW, M+S can be provided,good quality,affordable price, fast delivery time and best after sales service.

Suitable in many hydraulic motor markets, the hydraulic motor with integral brake is ideal for applications where space in the overall machine design is an issue.

This solution eliminates the need for a separate braking unit and provides up to 1580 Nm [14,000 lb-in] of reliable holding torque in a single compact package.

Features and benefits
The compact housing design provides a high power to weight ratio

The heavy duty drive link is the most durable in its class, receiving full flow lubrication for reduced wear and overall increased motor life

The three zone orbital valve precisely meters oil to produce exceptional volumetric efficiencies

A rubber energized, steel faced seal in the orbital valving provides greater protection against seal extrusion and overheating

A standard drain increases the overall shaft seal life by reducing the pressure on the shaft seal

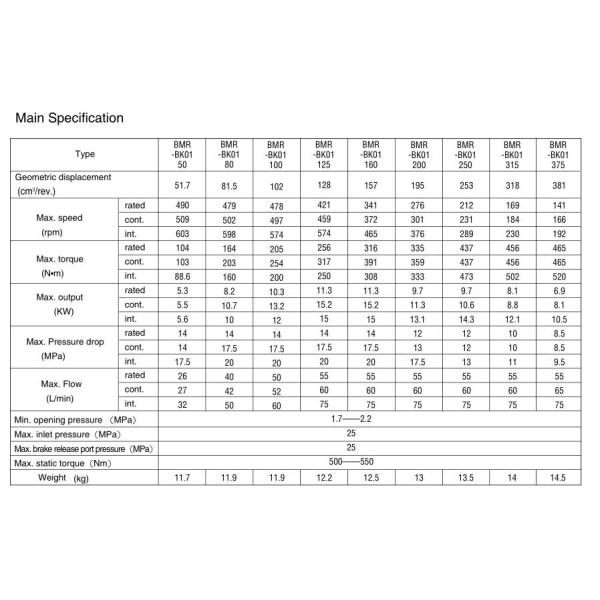

Specifications:

Fluid Power Systems Orbit Hydraulic Motor Brake B/Mr Integral Brake Motor Compact Hydraulic Components

Fluid Power Systems Orbit Hydraulic Motor Brake B/Mr Integral Brake Motor Compact Hydraulic Components

Applications:

1.conveyors
2.Feeding mechanism of robots and manipulators
3.Metal working machines
4.Textile machines
5.Agriculture machines
6.Food industries
7.Mining machinery

​

Fluid Power Systems Orbit Hydraulic Motor Brake B/Mr Integral Brake Motor Compact Hydraulic Components

Hanjiu hydraulic is the perfect hydraulic manufacture for your hydraulic components,Hydraulic solutions supplier

Fluid Power Systems Orbit Hydraulic Motor Brake B/Mr Integral Brake Motor Compact Hydraulic Components
