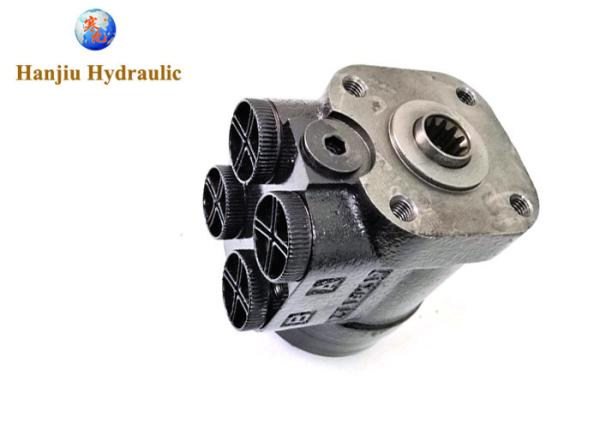

Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E Hydrostatic Steering Unit
Specifications
Brand Name :
HANJIU
Model Number :
101S-80CC
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
CAT steering motor
Model. No. :
101S-80
Relieve Valve :
15Mpa
Function :
open center reaction
Max back pressure :
2.5 MPa
warranty :
12months
Description

Eaton Charlynn Hydraulic Steering Units Open Center Load Sense 80cc WVQ150Z23F2E hydrostatic steering unit


Quick details:

  • we produce hydraulic steering valves for Forklifts, Loaders, Backholes, Tractors, excavators
  • 9 different types available from BZZ, 101, 101S, 102, 102S, 103S, 109, 109S, 060 series
  • different types with same specifications with most OEM parts, also OSPB, OSPC, HKU, HKUS
  • meet all application on Heavy duty equipment, Ag machinery, Industrial


Features:

  • Multi types, sizes, key or splind shafts available

  • Suitable for nearly all kinds of ,Massey Ferguson, Fiat, MTZ, New Holland, tractors.

  • Different oil port,different types of shaft, different flange can choose.

  • Many kinds of displacement, can suitable for any hydra ulic systems.

  • High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).

  • 100% replace the OEM parts,70%-80% save cost.


Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.

Specification:

Parameters Series
101*-***-**-*
Function code 1,2,3 1,3
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 31.5 40
Max.input pressure(Mpa) 17.5
Max.cont.back pressure 2.5
Weight(kg) 5.7 5.76 5.84 5.91 6.05 6.25 6.45 6.68 6.86 7.06 7.45
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176

We also make analogue steering orbitrol of M+S, , Eaton, , New Holland, Massey Ferguson, Claas, , ...
Hanjiu OEM
101s 100 CN AL41291
AL55308
OSPC-160CN
HKUS160/7/3		 1550 (50 Series), 1640 (40 Series),
1750 (50 Series), 1850 (50 Series)
1950 (50 Series), 2040 (40 Series),
2140 (40 Series), 2250 (50 Series),
2450 (50 Series), 2650 (50 Series),
2850 (50 Series), 3040 (40 Series),
3050 (50 Series), 3140 (40 Series),
3150 (50 Series), 3340 (40 Series),
3350 (50 Series)
Hanjiu Massey FergusonOEM Massey Ferguson
101s 125 ON K207419
4WD 125cc-3/4”
HKUS125/ON		 240 (200 Series), 253 (200 Series)
261 (200 Series), 265 (200 Series)
275 (200 Series), 290 (200 Series)
298 (200 Series), 340 (300 Series)
342 (300 Series), 350 (300 Series)
352 (300 Series), 355 (300 Series)
360 (300 Series), 362 (300 Series)
365 (300 Series), 372 (300 Series)
Hanjiu Fiat OEM Fiat
101s 100 ON
(5140383) / 5143319/ 2WD
HKUS100/ON
OSPC100/ON
 100-90 (90 Series), 110-90 (90 Series)
115-90 (90 Series), 130-90 (90 Series)
140-90 (90 Series), 160-90 (90 Series)
180-90 (90 Series), 55-90 (90 Series)
60-90 (90 Series), 70-90 (90 Series)
80-90 (90 Series), 85-90 (90 Series)
