DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve
DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve
DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve
DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve
DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve
DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve
Specifications
Brand Name :
HANJIU
Model Number :
P40, P80, DCV120, DCV200
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Start from 50 usd
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
15 - 45 work days
Packaging Details :
Carton, Box, Pallets
Item :
Direction Control Valve
Model :
P40, P80, DCV120, DCV200
Apply to :
Tractor Loader
Spool :
2
Function :
Single Float
Circuit :
Parallel
Description

Hydraulic Directional Control Valve for Tractor Loader w/ Joystick, 2 Spool (Single Float Spool Optional), 11 GPM

Model: 2P40-J

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

Common Uses:


Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors (“D” Spool Required)
Install rear remotes on a tractor


Benefits:


2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) – closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages

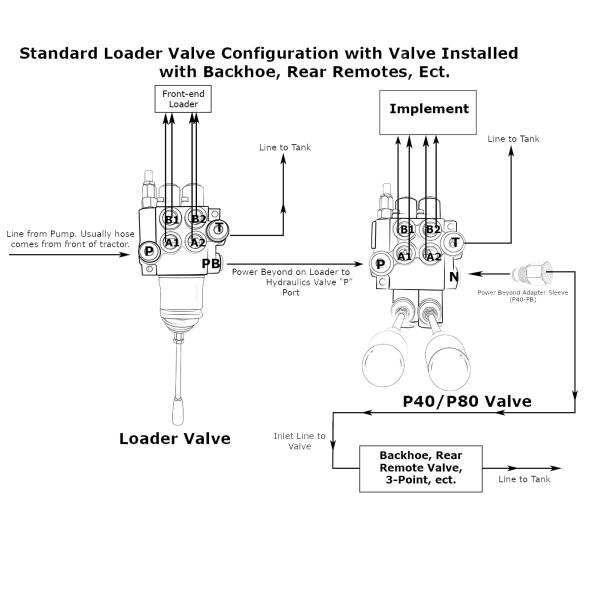

Capable of closed center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Preset Pressure Relief: 2610 PSI
Used as motor or single-acting spool possible (#8 SAE port plug required)


Features:


Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
2 – 5/16” Mounting Holes
Single Float Spool option available for raise & lower bucket
Made by Hanjiu

DCV200 Tractor Loader 11gpm Hydraulic Directional Control Valve

Valve Monoblock
Description Model Control Quotation Remark
P40 manual 1 P40/ 1 manual US$ more function available
P40 manual 2 P40/ 2 manual US$ more function available
P40 manual 3 P40/ 3 manual US$ more function available
P40 manual 4 P40/ 4 manual US$ more function available
1-6 lever available
P80 manual 1 P80/ 1 manual US$ more function available
P80 manual 2 P80/ 2 manual US$ more function available
P80 manual 3 P80/ 3 manual US$ more function available
P80 manual 4 P80/ 4 manual US$ more function available
1-6 lever available
* manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic available
