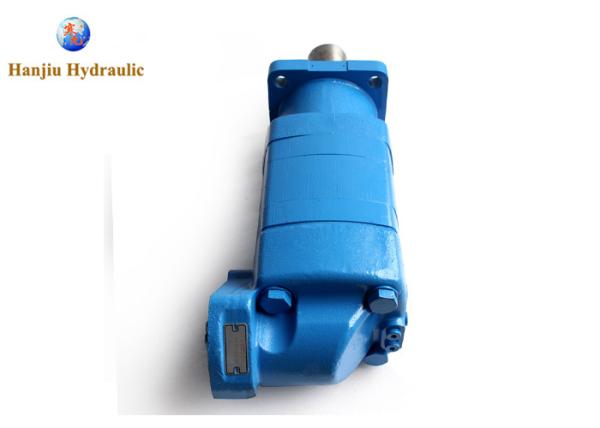

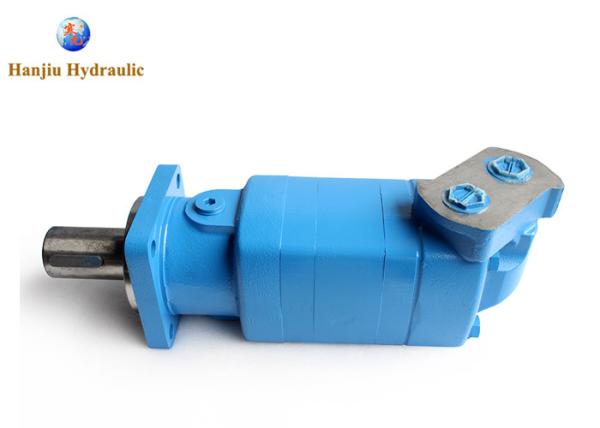

EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
Specifications
Brand Name :
HANJIU
Model Number :
119-1031-003
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact seller to ask
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
35 work days
Packaging Details :
Box, Pallet
Item :
Hydraulic Motors
Type :
Low Speed High Torque Hydraulic Motors
Model No. :
119-1031-003
Description

EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor, 2700 Nm, 179 Rpm

PRODUCT DETAILS

  • Disc Motor
  • Geroler
  • Disc Valve
  • 7/8-14 SAE O-Ring Port
  • 40.6 Cubic Inch Displacement Per Rev

SPECIFICATIONS
MOUNT TYPE 4 Bolt
SHAFT SIZE & TYPE 2 1/4 in x 1/2 in Straight
BOLT CIRCLE DIA. 6 3/8 in
GEROTER/GEROLER OPTIONS Standard
INLET PRESSURE [MAX] 4000 psi
MOUNTING TYPE CODE A
DISPLACEMENT (IN³/REV) 40.6
ROTATION Standard Rotation
PORT LOCATION Side Port
(CATALOG) SHAFT TYPE 2 1/4 in x 1/2 in Straight
SPECIAL FEATURES HARDWARE CODE 0
SHAFT TYPE Straight
DUTY Standard-Duty
SEAL MATERIAL Buna-N
CORROSION RESISTANT No
SPLINES 0
OUTPUT SHAFT CODE 1
MOUNTING HOLE SIZE 0.66 in
MOTOR TYPE Disc Valve
RETURN PRESSURE [MAX] 4000 psi
FLANGE ORIENTATION Standard
MAXIMUM SPEED @ CONTINUOUS FLOW 179 / 45 rpm
MOUNTING HOLES 0.660 in
PORT TYPE SAE O-Ring
FLOW RATE 45 gal/min
PILOT DIAMETER 5 in
RPM [MAX] 179 rpm
SHAFT SIZE 2 1/4 in
PAINT/PACKAGING Individual Box
VISCOCITY (SUS) [MAX] 70
SERIES 10,000 Series
10000 Series
PORT SIZE & LOCATION SAE-16 Side
OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) 23897 in lb
MOTOR ELEMENT Geroler
DRAIN 0.5625-18 UNF-2B SAE O-Ring Port Drain
MATERIAL Cast Iron
PAINT CODE 0
FLOW [MAX] 45 gal/min
PORT CODE A
PRESSURE [MAX] 2750 psi
PORT SIZE SAE-16
39308
WEIGHT 108.0 LB

Part Number Displacement cm³/rev (in³/rev)
119-1029-003 480 (29.3)
119-1030-003 665 (40.6)
119-1031-003 940 (57.4)

119-1031 CHAR-LYNN. HYDRAULIC MOTOR, CHAR-LYNN (CHARLYNN) 10,000 SERIES, 57.4 IN3 DISPLACEMENT, 4 BOLT MOUNT, 2-1/4" KEYED SHAFT, #16 ORING PORTS. EATON CHAR-LYNN (CHARLYNN) #119-1031, 119-1031-002, 119-1031-003.

EATON / CHAR-LYNN 119-1031-003 Hydraulic Geroler Disc Valve Motor 2700Nm 179Rpm
