BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
Specifications
Brand Name :
HANJIU CHINA
Model Number :
BMSY
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
Contact the seller to get a quote
Payment Terms :
L/C, D/A, T/T, Western Union, Payple
Supply Ability :
100000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
Box, Pallet
Item :
Hydraulic Motor
Type :
Low speed high torque
Flange :
4 hole, Rhomb
Size :
80cc - 500 cc
Description

BMSY Low Speed High Torque Motors for Agri and Construction Attachment

Distribution Type: Disc Distribution
Model: BMSY
Displacement: [in/rev] [4.88~22.88] cm/rev 80~415
Max Operating Pressure: PSI = 3263 MPa = 22.5
Speed Range: RPM = 30~800
Max. Output Power: [HP] [32] Kw = 24

Main Specifications:
Type BMSY
BMSE
80		 BMSY
BMSE
100		 BMSY
BMSE
125		 BMSY
BMSE
160		 BMSY
BMSE
200		 BMSY
BMSE
250		 BMSY
BMSE
315		 BMSY
BMSE
375
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

APPLICATION GUIDELINES:
For optimum results the following working conditions are recommended:
* Oil temperature should be between 20o - 60o C [68o - 180o F] * Oil filter of 10 - 20 micron
* Oil viscosity 42 - 74 mm2 at 40o C
* Different shafts are used when there is a radial load or not. Check data pages
* For longer life we suggest the motor at start up, run for a shorter period of time (one hour) at
no more than 30% of rated speed and pressure.

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

The OEM project we serve are Sweeper motors, Lawn mower motors, Rotary drilling motors,
Auger motor, Wood splitter motors, Fishing winch motors, Harvester motor etc.

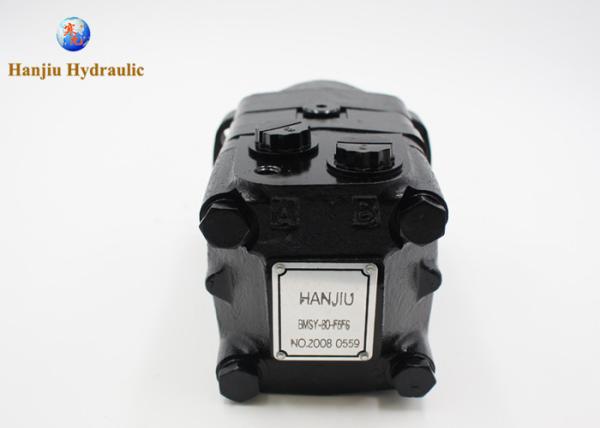

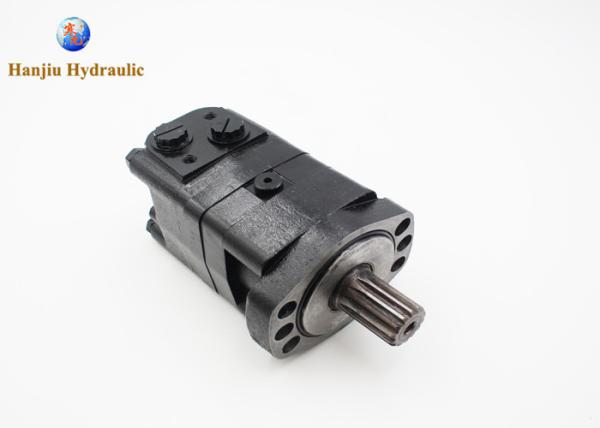

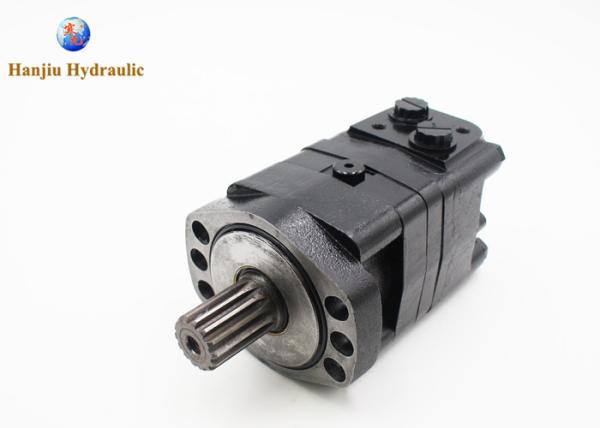

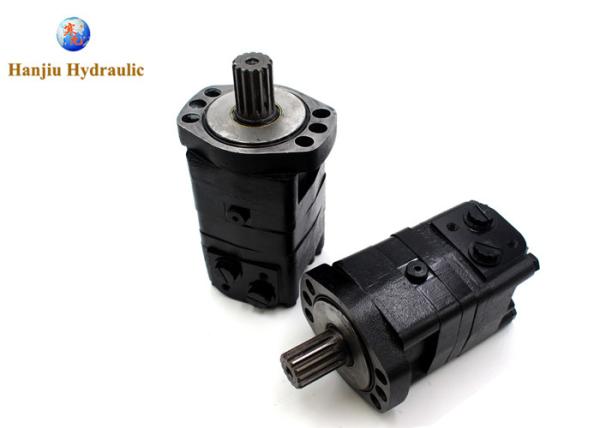

Bellow are reference photos.
BMSY Low Speed High Torque Motors For Agri And Construction Attachment
BMSY Low Speed High Torque Motors For Agri And Construction Attachment

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

BMSY Low Speed High Torque Motors For Agri And Construction Attachment

BMSY Low Speed High Torque Motors For Agri And Construction Attachment
