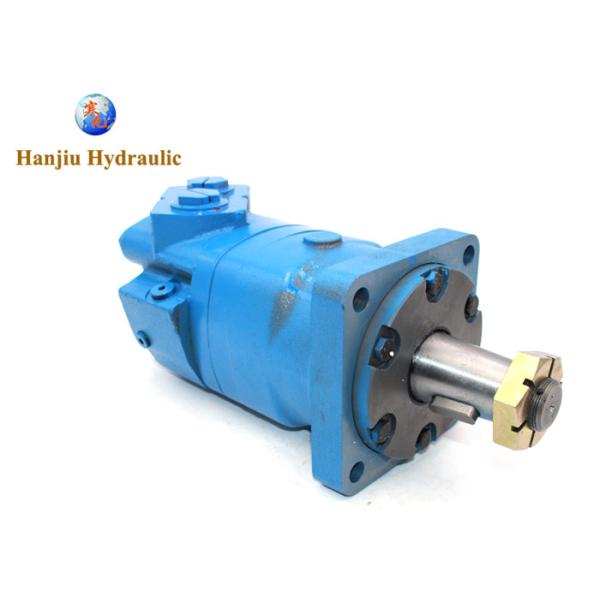

Rotating Hydraulic Motor Drilling Rig charlynn 6000series 112-1076-006

Hanjiu BMK6 = EATON CHAR-LYNN 6000 = EATON CHAR-LYNN 6K = OMT = M+S MT

Model number: BMK6-200-CCT1SF5
Replace Char-lynn motor 6000 Series
Displacement: 200cc
Flange: 4x13.5 Square flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: φ45mm tappered
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Blue

BMK6 series motor adapt the advanced Gerloer gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordanbe with requirement of appications.

CHARACTERISTIC FEATURES:

• Advanced manufacturing devices for the Geroler gear set,which use low pressure of star-up ,provide smooth and reliable operation and high efficiency.
• The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
• Advanced design in disc distrbution flow,which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliabel operation.

Main Specification

Applications:

• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
