Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
Specifications
Brand Name :
HANJIU CHINA
Model Number :
OMV630
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Unit
Price :
Start from 160 usd/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 sets per year
Delivery Time :
45-55 work days
Packaging Details :
Standard export package
Product :
Orbital Motor
Model No. :
OMV630
Flange :
4 hole square
Shaft :
Straight 40mm with paraller key
Description

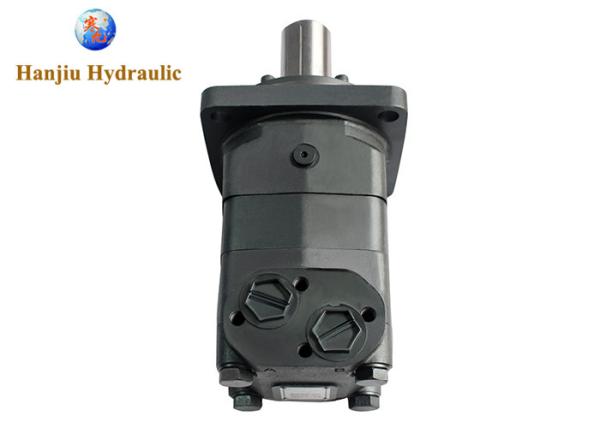

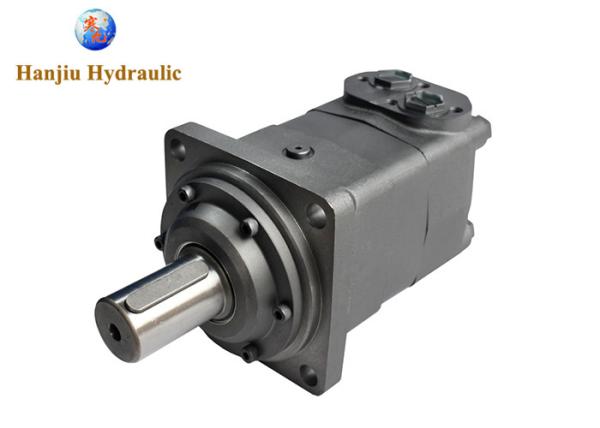

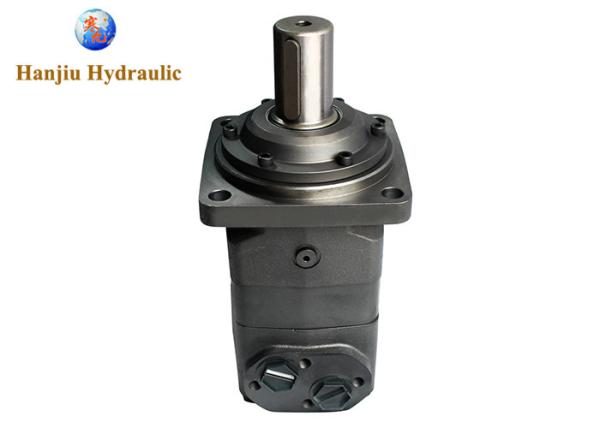

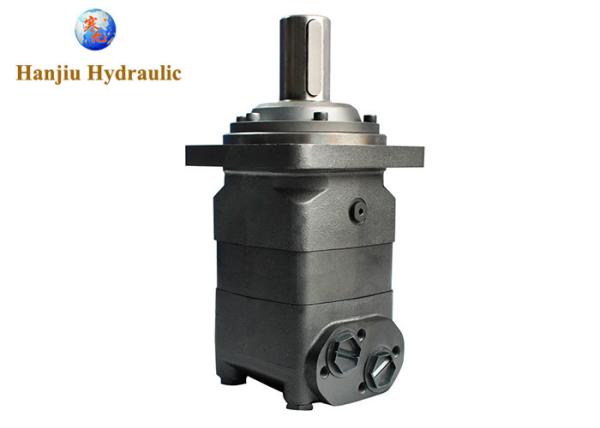

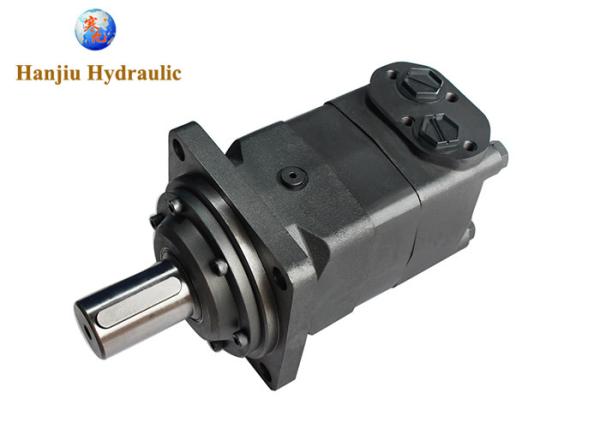

Orbital Motor OMV630 compatible with Danfoss 151B3103, Displacement 629.1 cm3

Quick review:

This is an OMV630 Orbital Motor with standard flange. It is form, fit and function compatible with Danfoss OMV630 151B3103. Dealers and users of Danfoss sell and use it directly as an OMV630 151B3103 compatible motor.

Technical information
"Tapered shaft Ø35 mm Flange 4 bolt
Ø200 - centring Ø160 mm lateral port
1""BSP - Drain 1/4 BSP ref Danfoss
151B3103"

Main Specifications:

Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.


About manufacturer:

Hanjiu is a hydraulic orbital motor manufacturer from China. Currently a strong contender in Europe for Danfoss, White, M+S, Brevini. In North America, Latin America and Australia are strong contenders for Eaton, Parker. You can get high-end motors in Hanjiu that are compatible with Danfoss, M+S, White, Dana Brevini, Eaton, Parker in form, fit and function, with a complete range, more reasonable prices, stable and fast delivery.

Contact us to discuss your needs, tell us your needs, and we will assist you in solving your difficulties and achieving a reliable and competitive supply.




Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3


Omv 630 Orbit Hydraulic Motor Compatible With Danfoss 151b3103 Displacement 629.1 Cm3
