Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing
Specifications
Brand Name :
HANJIU
Model Number :
BMPW200
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Wheel motor
Model No. :
BMPW200
Speed :
cont.310/int.385rpm
Torque :
cont.360/int.440 Nm
Max Power :
cont.10/int.12KW
Max Flow :
cont.60/int.75LPM
Description

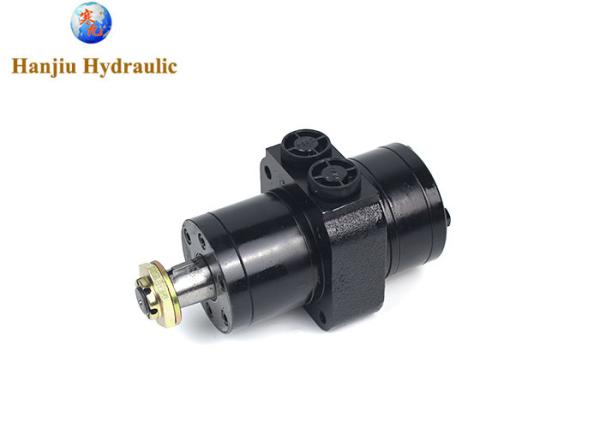

Danfoss Wheel Motor Hydraulic Engine OMPWN 1515306, Tap. Ø28.5 Mm Shaft With Needle Bearing

Hanjiu BMPWN-200 motors has the same specification of OMPWN 151-5306

hydraulic motors specification as below:


- Displacement: 200cc
- Flange :wheel Ø103mm
- Shaft: Tap. Ø28.5 mm
- Ports: G1/2

- Drain port:G1/4

Specification:

Type BMP
36		 BMP
50		 BMP
80		 BMP
100		 BMP
125		 BMP
160		 BMP
200		 BMP
250		 BMP
315		 BMP
400		 BMP
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing


Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing

Ompwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle BearingOmpwn 1515306 Danfoss Wheel Motor Tap ø28.5 Mm Shaft With Needle Bearing

HANJIU Technology is specializing in producting the hydraulic orbit motors, with quick leading time, excellent quality and 7/24 hours aftersales service

we have the most competley range of hydraulic motors, 100% same as below types

choose Hanjiu, is your best business coopeartion partner!

OMPW125 151-5304 OMPWX125 N 11186750

OMPW160 151-5305 OMPWX160 N 11185882

OMPW200 151-5306 OMPWX200 N 11186748

OMPW250 151-5307 OMPWX250 N 11185884

OMPW315 151-5308 OMPWX315 N 11185885

OMPW400 151-5309 OMPWX400 N 11185886

OMPW200 151-5310 OMPWX200 N 11186749

OMPW40 151-5324 OMPWX40 N 11185889

OMPW50 151-7101 OMPWX50 11185873

OMPW80 151-7102 OMPWX80 11185875

OMPW100 151-7103 OMPWX100 11185877

OMPW125 151-7104 OMPWX125 11185876

OMPW160 151-7105 OMPWX160 11186746

OMPW200 151-7106 OMPWX200 11186747

OMPW250 151-7107 OMPWX250 11185870

OMPW315 151-7108 OMPWX315 11185871

OMPW400 151-7109 OMPWX400 11185872

OMPW200 151-7110 OMPWX200 11185869

OMPW160 151-7120 OMPWX160 11185868
