P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return
P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return
P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return
P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return
P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return
P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return
Specifications
Brand Name :
HANJIU
Model Number :
P120
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
30 units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
2P120
Warranty :
12-18 months
Spool :
1, 2, 3,
Flow :
40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Function :
O/Y/P/A
application :
hydraulic system,excavators,trenchers...
Description

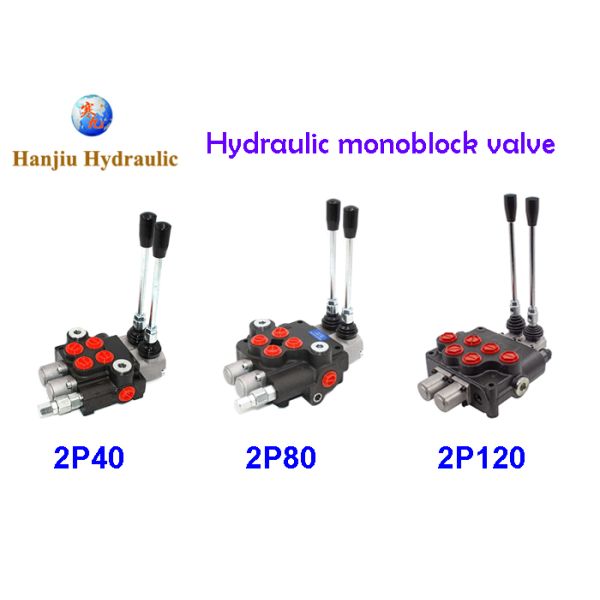

Hydraulic Monoblock Valve P120 A1 GKZ1 2spool Section Valves Spring Return

Product details

3/4" Ported Double Acting 1 Bank Monoblock Valve
Built in Adjustable Main relief valve
Nominal Flow Rating - 120L/Min
Max Flow - 130L
Max Operating Pressure - 250 Bar - 3600 Psi
Spring Return To Neutral

also can be made by Detent Return

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 250 bar
Back pressure 50 bar
Nominal flow 120 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools 1-3


P120 A1 GKZ1 2 Spool Section 2p120 Hydraulic Monoblock Valve Spring Return

We have a diverse range of products to help with any area of your needs in the field of Hydraulics.

HANJIU TECHNOLOGY has a complete production line and mature manufacturing technology, which can ensure that every customer's order can be efficiently and quality output. If you don't know how to choose the type of hydraulic directional control valve, or want to know about the product use process and installation procedure, you can check the relevant information on our official website www.hjhydraulic.com.

HANJIU TECHNOLOGY is committed to building a first-class brand of hydraulic components at home and abroad. Choose HANJIU TECHNOLOGY to equip your hydraulic system with the most advanced and high-quality hydraulic components!
