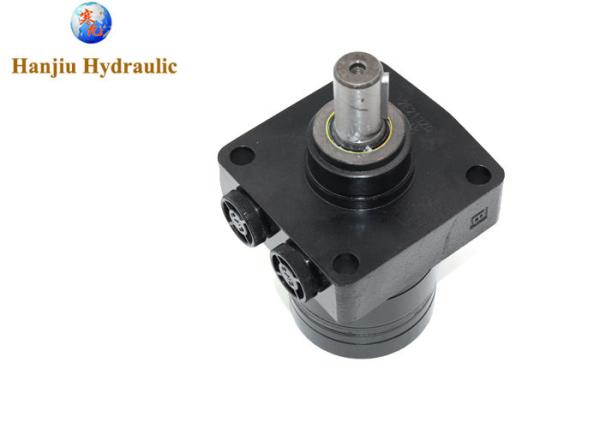

Te0130 Hydraulic Motor Parker Lsht Torqmotor And Nichols Motors 130cc
Te0130 Hydraulic Motor Parker Lsht Torqmotor And Nichols Motors 130cc
Te0130 Hydraulic Motor Parker Lsht Torqmotor And Nichols Motors 130cc
Te0130 Hydraulic Motor Parker Lsht Torqmotor And Nichols Motors 130cc
Te0130 Hydraulic Motor Parker Lsht Torqmotor And Nichols Motors 130cc
Te0130 Hydraulic Motor Parker Lsht Torqmotor And Nichols Motors 130cc
Specifications
Brand Name :
HANJIU
Model Number :
TE0130
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
20-25 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Type :
high torque hydraulic motor
Max Speed :
724rpm-924rpm
Displacement :
130cc
Warranty :
12-18 months
Application :
sweepers,trenchers, winch,roller etc.
torque :
295N.M-5445N.M
flow :
75--95 L/MIN
pressure :
21mpa-315mpa
Description

TE0130 Hydraulic motor Parker LSHT Torqmotors And Nichols Motors

TE0036

TE0050

TE0065

TE0080

TE0100

TE0130

TE0160

TE0195

TE0260

TE0295

TE0330

TE0365

TE0390

Hydraulic orbit motor


BME2 series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Applications:
• Mini Skid Steer Attachments
• Zero Turn Radius Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Specialty Harvesters Such as Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Bulk Feed Trucks



Main Specifications:

Type BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2
65 80 100 125 160 200 230 250 295 315 375
Geometric displacement 66.8 81.3 101.6 127 157.2 193.6 226 257 287.8 314.5 370
(cm3 /rev.)
Max. speed (rpm) cont. 667 543 439 350 283 229 247 216 296 178 152
int. 842 689 553 441 355 289 328 287 254 235 199
Max. torque (N*m) cont. 126 157 191 245 307 382 378 381 393 448 439
int. 176 215 268 335 422 520 528 543 547 587 613
Max. output (kW) cont. 8.3 8.8 7.9 8.9 8.9 9 9.9 9.3 8.7 8 7.6
int. 13.9 14.4 13.5 14.1 15.6 15.7 17.9 16.5 15.6 14.3 14
Max. pressure drop (MPa) cont. 14 14 14 14 14 14 12 11 10 10 9
int. 19 19 19 19 19 19 16.5 15.5 14.5 13.5 12.5
peak 20 20 20 20 20 20 18 18 17 16 16
Max. flow (L/min) cont. 45 45 45 45 45 45 57 57 57 57 57
int. 57 57 57 57 57 57 75 75 75 75 75

1, model number BME2-130-WD-AB
2, displacement 130ml/r
3, flange 4-bolt Wheel Mount
4, shaft key shaft 25.4mm
5, oil port 7/8-14 UNF
6, drain ---
7, rotation Standard
8, paint Black
9, replace Parker TE TG TF
