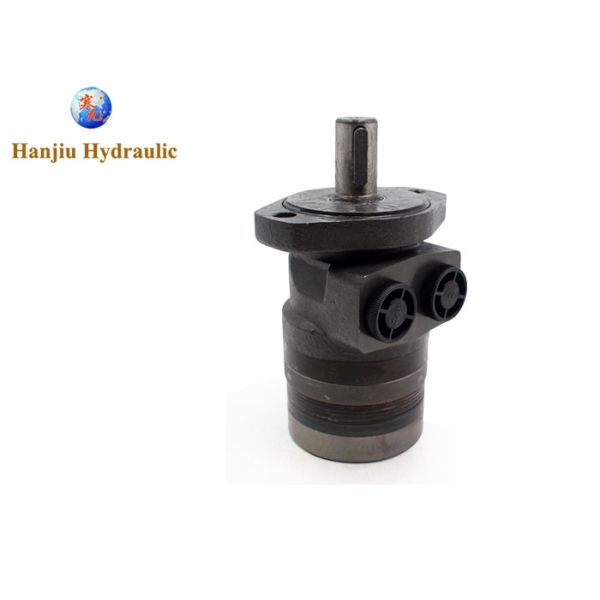

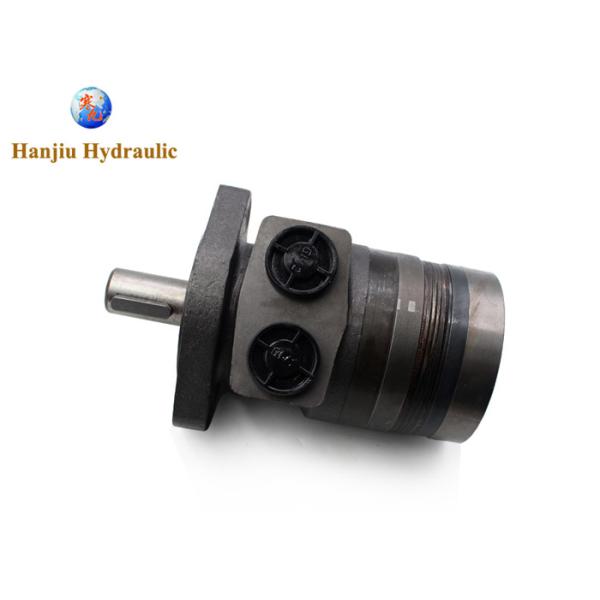

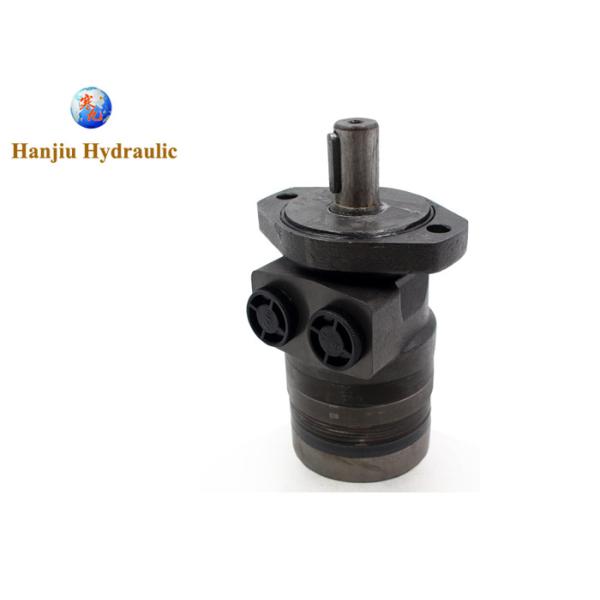

John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
Specifications
Brand Name :
HANJIU
Model Number :
TE0295
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
20-25 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Type :
high torque hydraulic motor
Max Speed :
724rpm-924rpm
Displacement :
295cc
Warranty :
12-18 months
Application :
sweepers,trenchers, winch,roller etc.
torque :
295N.M-5445N.M
flow :
75--95 L/MIN
pressure :
21mpa-315mpa
Description

HYDRAULIC MOTORS JOHN DEERE 3510/3520 ROD CUTTER GENUINE SPARE PARTS CB11423252

John Deere, JD spare parts, components--hydraulic motors/orbit motors/geroler motors

CB11480557

CB11480558

CB11480559

CB11423252


BME2 series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.


Main Specifications:

Type BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2 BME2
65 80 100 125 160 200 230 250 295 315 375
Geometric displacement 66.8 81.3 101.6 127 157.2 193.6 226 257 287.8 314.5 370
(cm3 /rev.)
Max. speed (rpm) cont. 667 543 439 350 283 229 247 216 296 178 152
int. 842 689 553 441 355 289 328 287 254 235 199
Max. torque (N*m) cont. 126 157 191 245 307 382 378 381 393 448 439
int. 176 215 268 335 422 520 528 543 547 587 613
Max. output (kW) cont. 8.3 8.8 7.9 8.9 8.9 9 9.9 9.3 8.7 8 7.6
int. 13.9 14.4 13.5 14.1 15.6 15.7 17.9 16.5 15.6 14.3 14
Max. pressure drop (MPa) cont. 14 14 14 14 14 14 12 11 10 10 9
int. 19 19 19 19 19 19 16.5 15.5 14.5 13.5 12.5
peak 20 20 20 20 20 20 18 18 17 16 16
Max. flow (L/min) cont. 45 45 45 45 45 45 57 57 57 57 57
int. 57 57 57 57 57 57 75 75 75 75 75

1, model number BME2-295
2, displacement 295ml/r
3, flange 2-bolt SAE flange
4, shaft key shaft 25.4mm
5, oil port 7/8-14 UNF
6, drain ---
7, rotation Standard
8, paint Black
9, replace Parker TE TG TF


John Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295ccJohn Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295ccJohn Deere 3510/3520 Rod Cutter Cb11423252 Orbit Hydraulic Motor 295cc
