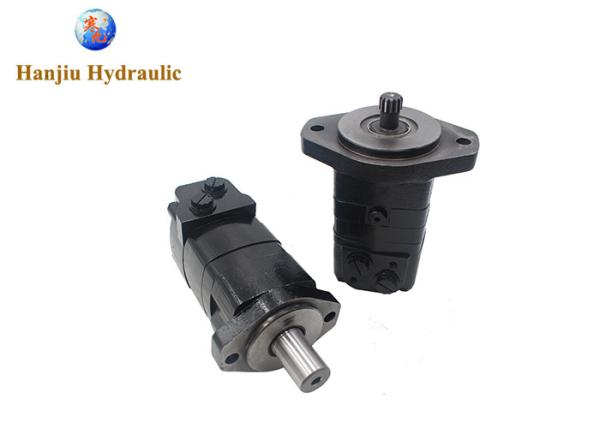

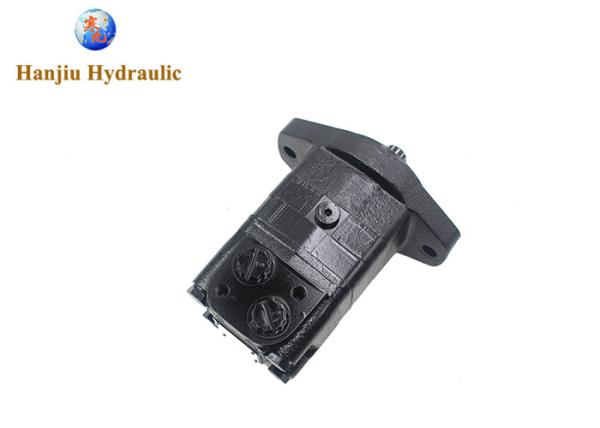

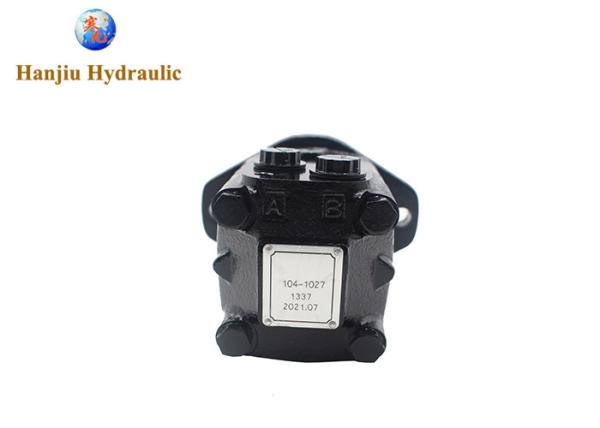

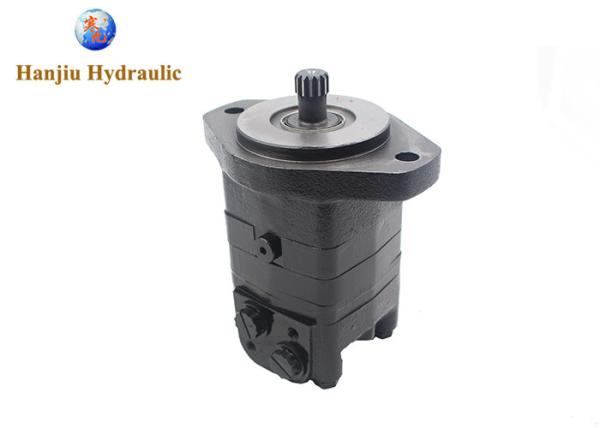

104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
Specifications
Brand Name :
HANJIU
Model Number :
104-1027-006,
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the seller to get a quote
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per year
Delivery Time :
55 work days
Packaging Details :
Box, Pallet
Item :
Hydraulic Geroler Disc Valve Motor
OEM # :
104-1027-006,
Manufacturer :
Hanjiu
Displacement :
244.3ml/r
Mounting flange :
2-hole wheel flange
Shaft type :
Straight
Description

104-1027-006, Hydraulic Geroler Disc Valve Motor 2000 series Standard, 244.3 cm³/r Max Geometric Displacement

This is a 104-1027-006 replacement motor.

OVERVIEW

* Three-zone design for longer life and true bi-directionality

* Bearings that meet the highest standards of the industry

* Options to optimize performance in every application

* Integrated crossover relief valve option

* Two-bolt flange: SAE A with 3-1/4" pilot diameter

* drain: 7/16"-20 UNF-2B O-ring port size 4

SPECIFICATIONS

Series 2000 - Standard
Displacement 14.91 in³/r
Mounting Type 2-Bolt Flange - 3.25 in Pilot - SAE A
Shaft Type Straight
Maximum Operating Temperature 180 °F
Output Shaft Size 1-1/4 in Straight - Straight Key
Seal Type Standard
Drain Connection Size .4375-20 Unf-2b O-ring Port Size -4

104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
