Specifications
Brand Name :
HANJIU CHINA
Model Number :
hyd motor
Certification :
CE/ISO9001:2015
Place of Origin :
CHINA
MOQ :
50 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
100000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
2pcs/32x32x17cm
Product :
sweepers,broom utility parts
Displacement :
400ml/r
Flange :
4 bolts square flange
Shaft :
cone shaft
Max Flow :
cont.75/int.90 L/min
Max Speed :
cont.185/int.225rpm
Description

Compatible Equipment Models CAT 2579370 Utility Broom BU115 BU118 Hyd Motor

Product details

Flange:4 bolts square flange φ106.4,pilotφ82.5X6.3

shaft:Shaft Ø 31.75 , cone shaft

ports:G1/2 Manifold Mount; side ports

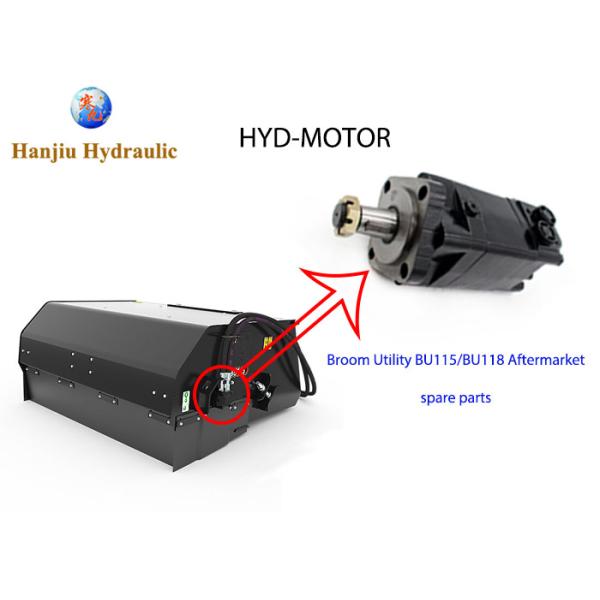

fit:CAT broom utility BU115/BU118

quality:aftermarket OEM quality

Main Specifications:

Type BMSY
80		 BMSY
100		 BMSY
125		 BMSY
160		 BMSY
200		 BMSY
250		 BMSY
315		 BMSY
400

BMSY

475
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 394 475
Max. speed (rpm) cont. 800 748 600 470 375 300 240

185

 155
int. 988 900 720 560 450 360 280 225 185
Max. torque (N·m) cont. 190 240 310 316 400 450 560 880 910
int. 240 300 370 430 466 540 658 980 990
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11 9
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 12 11
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 16 14
int. 21 21 21 21 16 16 14 19 15
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 21 17.5
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6 14.3

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

CAT 2579370 Utility Broom BU115 BU118 Hyd Motor Compatible Equipment Models

CAT 2579370 Utility Broom BU115 BU118 Hyd Motor Compatible Equipment Models

CAT 2579370 Utility Broom BU115 BU118 Hyd Motor Compatible Equipment Models

CAT 2579370 Utility Broom BU115 BU118 Hyd Motor Compatible Equipment Models

CAT 2579370 Utility Broom BU115 BU118 Hyd Motor Compatible Equipment Models

HANJIU TECHNOLOGY owns the best quality hydraulic motors in the hydraulic market. You don’t need to worry about quality when buying HANJIU TECHNOLOGY products. Its high quality is enough to make you buy it with your eyes closed. If you say which supplier's hydraulic motor is the most cost-effective in the current market, HANJIU TECHNOLOGY definitely has a place.

Consumers who have bought the hydraulic motor produced by HANJIU TECHNOLOGY are full of praise for it. How high-quality is the hydraulic motor of HANJIU TECHNOLOGY? Can you gain a good reputation in the market? Such high-quality, if you don’t buy it, wouldn’t it be a big loss?

The answer is yes, HANJIU TECHNOLOGY is such a high-quality hydraulic motor, who can buy it without saying a word? The hydraulic motors produced and sold by HANJIU TECHNOLOGY are rich in types and complete in specifications. They are widely used in the fields of agricultural machinery, forestry machinery, mining equipment, and construction machinery. The applicable mechanical equipment is very wide.
