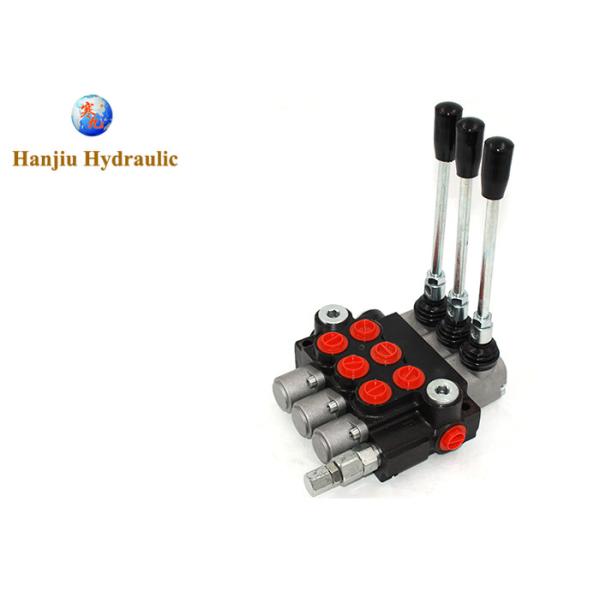

Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
Specifications
Brand Name :
HANJIU
Model Number :
3P40
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
3P40
Warranty :
one year
Spool :
1, 2, 3, 4, 5, 6,7 ...
Flow :
40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool function :
spring function
port size :
BSP,Metric,US vision
Description

pruning Sweeper hydraulic monoblock valve 3P40 high pressure G1/2 port threads

Product details

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 200 bar
Back pressure 50 bar
Nominal flow 40 l/min
Spool stroke 9 mm
Actuating force < 200 N
Structure 3sections

Control type:

Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool

Ports threads

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
M27 M27X2

The high-quality integral manifold has the characteristics of compact structure, stable operation and strong versatility.

It allows you to control a double-acting actuator or (after blocking one of the ports) a single-acting actuator.

Can be connected in series to existing systems (requires pressure sleeve).

application:
This distributor is widely used for hydraulically driven machines and equipment.

Can be used in agriculture, horticulture, forestry and construction.

Universal manifolds are used in various types of machines such as:
tractors

pruning sweepers

grape machines
loader
plow
forklift etc.


Three-position lever (1 - 0 - 2)
On the spring it returns to vertical on its own
Neutral 0 position (rod vertical), actuator piston rod stationary - oil flows to overflow.
In working position 1 (lever set in forward tilted position), the piston rod of the actuator is extended.
Working position 2 (lever set diagonally back), actuator piston rod retracted.

Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool

Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool

Pruning Sweeper Hydraulic Monoblock Valve 3p40 High Pressure G1/2 Port Threads 6 Spool
