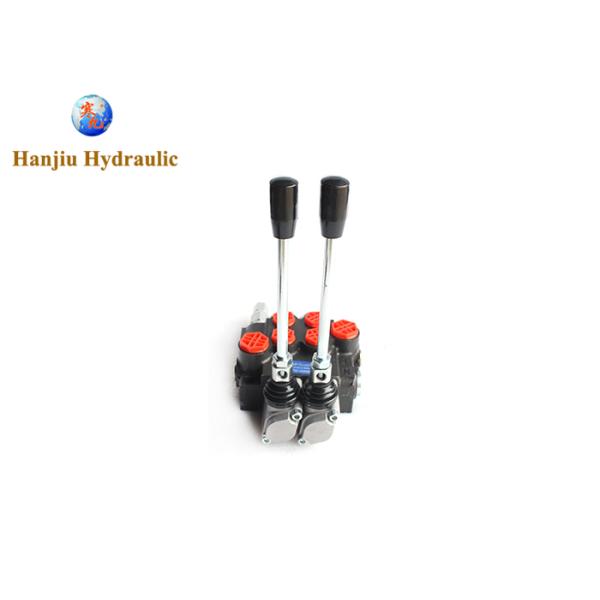

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
Specifications
Brand Name :
HANJIU
Model Number :
2P40
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Model No. :
2P40
Warranty :
12-18 months
Spool :
1, 2, 3, 4, 5, 6, ...
Flow :
40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool function :
O/Y/A
warranty :
12months
Description

GRANIT Two-section hydraulic distributor 40L ,NPT 1/2 Ports for agricultural machinery

Characteristic:

Nom. working pressure P - N: 250 bar
nom. working pressure A - B: 300 bar
nom. operating pressure T: 50 bar
connection: P-T NPT 3/4
connection: A-B NPT 1/2
flow: 40 l / min oil temperature: -15 ° C to + 80 ° C

Comparative no .: 2P40-1-A1 (2x) GKZ1

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 250bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7

Ports thread

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
M27 M27X2

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery

The task of the hydraulic distributor is to control the flow of oil in the hydraulic system to a given receiver. Our products are of one-piece construction and can be quickly installed in a variety of simple hydraulic systems.
Hanjiu hydraulics, one, two and three parts, flow 40 l/min, with various control combinations: lever, cable and joystick

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural MachineryGranit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery

Granit Two Section Distributor 40l Dcv Valve Npt 1/2 Ports For Agricultural Machinery
