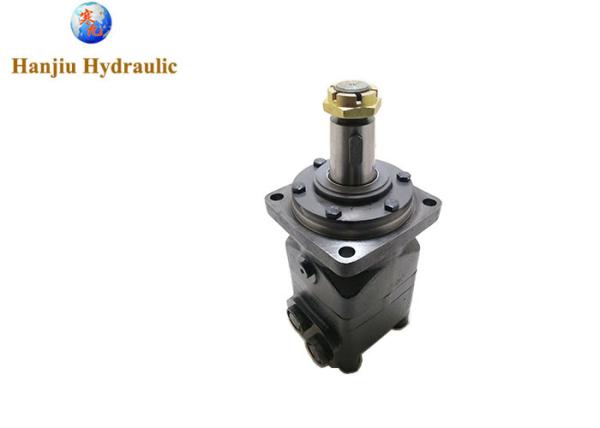

Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
Specifications
Brand Name :
HANJIU
Model Number :
BMT315
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
100,000 Sets per year
Packaging Details :
Carton Packing, and finally with pallet or wooden box
Categories :
Hydraulic Wheel Motor
Name :
OMT315/MT315
Max.output :
cont.31.2kw/int.35kw
max torque :
cont.1080N.m/int.1260N.m
Flange :
φ200mm wheel motors
Shaft :
Cone shaft 1:10
Description

Danfoss OMT 315 Motor 4 Bolts Hydraulic orbit motor tapered shaft BSP Port threads

  • Output volume (cc/rev): 326.3
  • Shaft: cone shaft 1.5 inch
  • max r.p.m.: 380
  • Torque max. (Nm): 950/1140
  • Power max. (kW): 30
  • Pressure difference (bar): 180
  • Inlet pressure (bar): 280
  • Volume flow max. (l/min): 125
  • Engine version: with non-return valves
  • Connection: G 3/4"
  • Leakage oil connection: G 1/4"

Main Specifications:

Type BMT
160		 BMT
200		 BMT
230		 BMT
250		 BMT
315		 BMT
400		 BMT
500		 BMT
630		 BMT
800
displacement (cm3/rev. ) 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed
(rpm)		 cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N.m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (KW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max.pressure drop (MPa) cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) rated 80 100 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet
pressure (Mpa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port ThreadsDanfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port ThreadsDanfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port ThreadsDanfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads

other types we supply same as Danfoss

151B3009 OMT 315

151B3010 OMT 400

151B3011 OMT 500

151B3012 OMT 160

151B3013 OMT 200

151B3014 OMT 250

151B3015 OMT 315

151B3016 OMT 400

151B3017 OMT 500

151B3018 OMT 160

151B3019 OMT 200

151B3020 OMT 250

151B3021 OMT 315

151B3022 OMT 400

151B3023 OMT 500

151B3042 OMT 160

151B3043 OMT 200

151B3044 OMT 250

151B3045 OMT 315

151B3056 OMT 250

151B3057 OMT 400

151B3062 OMT 500

Danfoss OMT 315 Hydraulic Orbit Motor 4 Bolts Tapered Shaft BSP Port Threads
