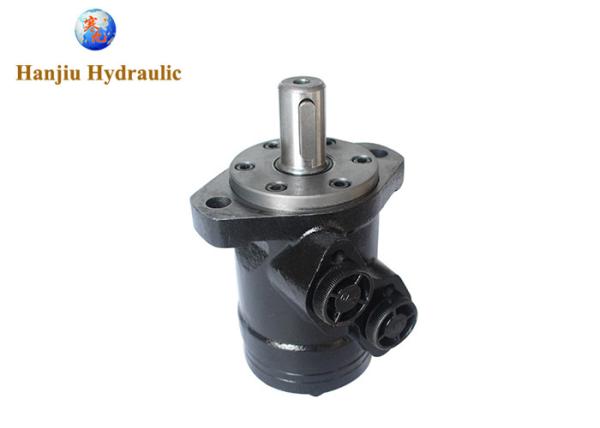

BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
BMP-50-2-A-D Gerotor Hydraulic Motor 50ml/R 2 Bolt Flange Shaft 25mm
Specifications
Brand Name :
HANJIU
Model Number :
BMP-50-2-A-D
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
start from 45 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
10 - 15 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
Gerotor hydraulic motor
Manufacturer :
HANJIU
Model :
BMP-50-2-A-D
Displacement :
50 ml/r
Shaft :
Ø25,parallel key 8x7x32
Port :
G1/2 Manifold Mount 4×M8, G1/4
Description

Geroler and Gerotor motor BMP-50-2-A-D, 50 ml/r, 2 bolt flange, Shaft Ø25mm

BMP is a hydraulic orbital motor widely used in agricultural machinery and plastic machinery. It has the characteristics of safety, excellent performance and low cost.

Quick review : BMP-50-2-A-D

Displacement : 50 ml/r

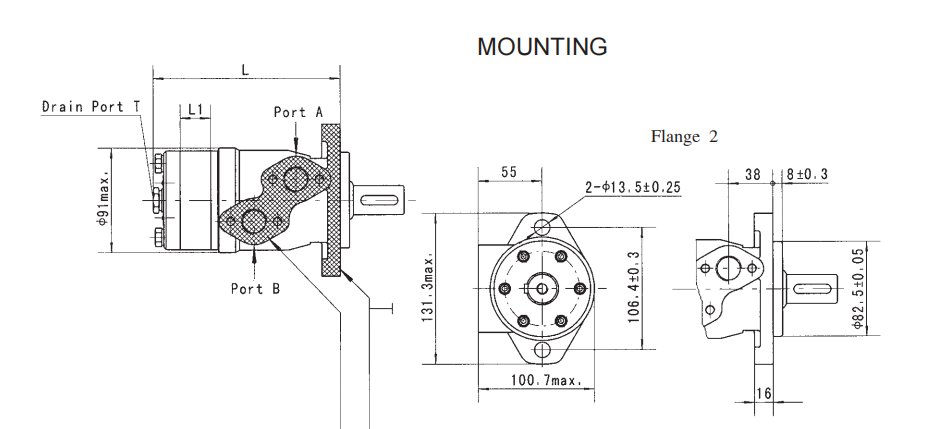

Flange,Pilot : 2-Ø13.5 Rhomb-flange ,pilot Ø82.5×8

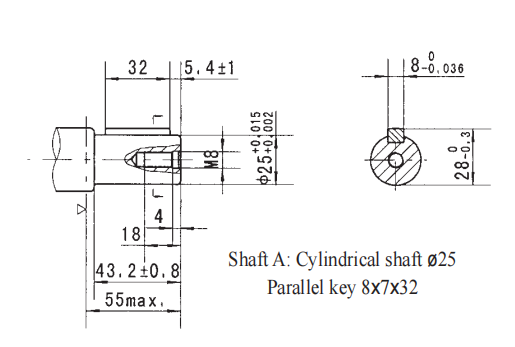

Output Shaft : Shaft Ø25,parallel key 8x7x32

Port : G1/2 Manifold Mount , 4×M8, G1/4

Rotation Direction : Left and Right

Spec:

Type BMP BMP BMP BMP BMP BMP BMP BMP BMP BMP BMP
36 50 80 100 125 160 200 250 315 400 500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N•m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 6.7 6.9 7.4 8
