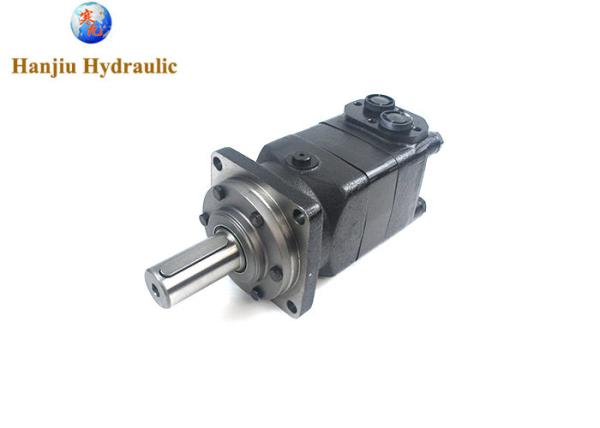

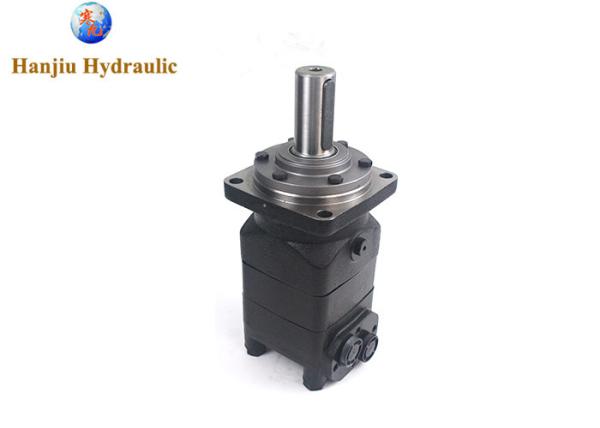

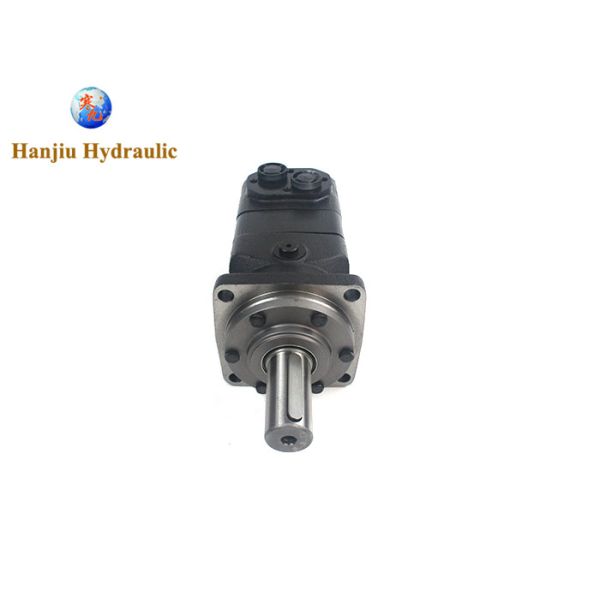

orbit hydraulic motor OMT630 For Screening Rotated Buckets, 4 bolts square flange, key straight shaft

Details

• Output volume (cc/rev): 630cc
• Shaft: φ40 straight key shaft, parallel key 12x8x70
• max r.p.m.: 380
• Torque max. (Nm): 950/1140
• Power max. (kW): 30
• Pressure difference (bar): 180
• Inlet pressure (bar): 280
• Volume flow max. (l/min): 125
• Engine version: with non-return valves
• Connection: G 3/4
• Leakage oil connection: G 1/4

Main Specifications:

Key Role of Hydraulic Motors

Rotation of the screening drum The primary function of the hydraulic motor is to rotate the cylindrical screening drum at a desired speed.

Additional functions In some designs, hydraulic motors may also be used to operate other components such as the bucket's tilt mechanism or the conveyor belt for material discharge.

Types of Hydraulic Motors Used

The specific type of hydraulic motor used in a screening rotated bucket will depend on factors such as

Bucket size and capacity Larger buckets may require more powerful motors.

Desired rotation speed The required speed will influence the motor's selection.

Torque requirements The motor must be capable of overcoming the resistance of the material being screened.

Commonly used motor types include

Orbital motors Offer high torque and smooth operation.

Piston motors Can provide higher speeds and power, but may be more complex.

Gear motors Used in specific applications where a combination of torque and speed is required.

Factors Affecting Motor Performance

Motor size and displacement Directly impacts the motor's power output.

Operating pressure The hydraulic system's pressure determines the motor's performance.

Motor efficiency Impacts the overall energy consumption of the system.

Motor mounting The motor's mounting options should be compatible with the bucket design.

By carefully selecting the appropriate hydraulic motor, the efficiency and productivity of the screening process can be significantly improved.
