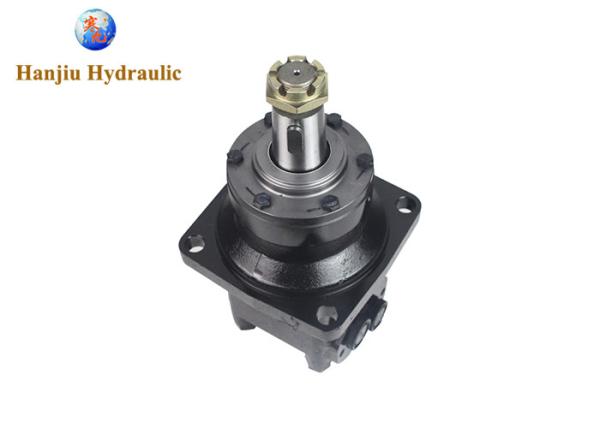

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation
Specifications
Brand Name :
HANJIU
Model Number :
BMT-500-W-T-D
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact the selle to get the best offer
Payment Terms :
T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
35 work days
Packaging Details :
Box, carton, pallet
Product :
Hydraulic Motor
Model No. :
BMT-500-W-T-D
Displacement :
500 cc
Brand :
Hanjiu
Description

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

Quick review:

Model No. BMT-500-W-T-D

Shaft

 45mm Cone shaft 1:10
Geometric displacement 500 cm³

Main Specifications:

Type BMT
160		 BMT
200		 BMT
230		 BMT
250		 BMT
315		 BMT
400		 BMT
500		 BMT
630		 BMT
800
displacement (cm3/rev. ) 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed
(rpm)		 cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N.m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (KW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max.pressure drop (MPa) cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) rated 80 100 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet
pressure (Mpa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

Dimentions:

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

More BMT series hydraulic motor available:

BMT 160 BMTE 230 BMTJ 230
BMT 200 BMTE 230 BMTJ 230
BMT 250 BMTE 250 BMTJ 250
BMT 315 BMTE 315 BMTJ 315
BMT 400 BMTE 400 BMTJ 400
BMT 500 BMTE 500 BMTJ 500
BMT 630 BMTE 630 BMTJ 630
BMT 800 BMTE 800

BMTJ 800

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

More hydraulic motors available:

BMT Hydraulic Wheel Motor, BMT-500-W-T-D, 500 ml/r, 4 bolt wheel flange, Cone-shaft 1:10, G 3/4 Manufold port, standard rotation

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
