Specifications
Brand Name :
HANJIU
Model Number :
4000 series
Certification :
ISO 2015:9001
Place of Origin :
CHINA
MOQ :
1 Sets
Price :
Start from 500 usd
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
15 - 45 work days
Packaging Details :
Carton, Box, Pallets
Item :
Disc Geroler motors
Model :
4000 series
Direction of rotation :
Reversible
Fastening :
4 Bolts standard type
Maximum pressure :
3500 bar
material :
cast iron
Description

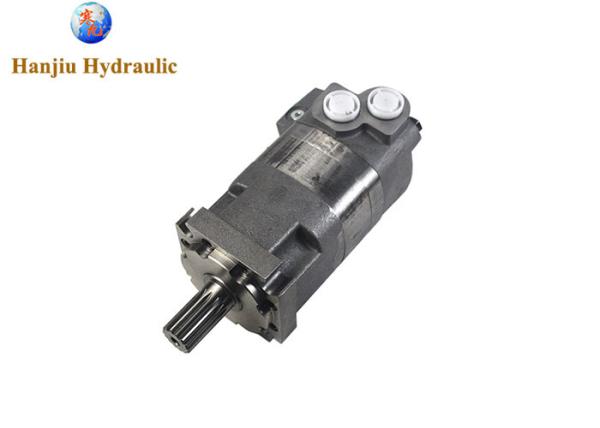

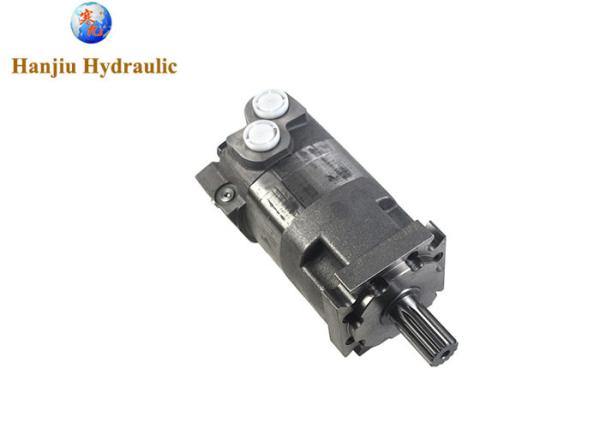

4 Bolt SAE-B Square Mount, 1-1/4″ 14 Tooth Splined Shaft Hydraulic Motor Fits for Eaton 4000 Series 109-1119-006

Part name:Hydraulic Motor

Part Number:109-1119-006 109-1119

Fitment Type:Direct Replacement

Condition:New

Details:

Disc Motor
Geroler
Disc Valve

Product details:

MOUNTING TYPE CODE STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B)
PORT TYPE 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS
DISPLACEMENT (IN3/REV) 311.8 CM3/R [19.03 IN3/R]
SHAFT SIZE & TYPE 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE, 38.1 [1.50] MINIMUM FULL SPLINE LENGTH WITH .375-16UNC-2B THREAD
RPM [MAX] 582 rpm
MOUNT TYPE 4 Bolt
OUTPUT TORQUE AT RATED PSI (INCH/POUNDS) 4290 in lb
SHAFT TYPE Splined
MOTOR TYPE Disc Valve
MOUNTING HOLES 0.58 in
FLANGE ORIENTATION Standard
DRAIN SAE-4 w/Check Valve
DUTY Standard-Duty
MOTOR ELEMENT Geroler
SERIES 4000 Series
ROTATION Standard Rotation
FLOW RATE 25 gal/min
PORT SIZE 3/4- unf
PILOT DIAMETER 4 in
PORT LOCATION Side Port
BOLT CIRCLE DIA. 5 in
MOUNTING HOLE SIZE 0.58 in
OUTPUT SHAFT CODE 3
SEAL MATERIAL Buna-N
INLET PRESSURE [MAX] 4500 psi
CORROSION RESISTANT No
PAINT/PACKAGING Individual Box
MAXIMUM SPEED @ CONTINUOUS FLOW 582 rpm @ 25 gal/min
SPECIAL FEATURES None
PAINT CODE black
WEIGHT 57.0 LB

4 Bolt SAE-B Square Mount 1-1/4″ 14 Tooth Splined Shaft Hydraulic Motor Fits For Eaton 4000 Series 109-1119-0064 Bolt SAE-B Square Mount 1-1/4″ 14 Tooth Splined Shaft Hydraulic Motor Fits For Eaton 4000 Series 109-1119-006

Part Number Displacement cm³/rev (in³/rev)
109-1115-006 130 (7.9)
109-1116-006 160 (9.9)
109-1117-006 205 (12.5)
109-1118-006 245 (15)
109-1119-006 310 (19)
109-1120-006 395 (24)
