Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port
Specifications
Brand Name :
HANJIU
Model Number :
110-1084
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Sets
Price :
Contact the selle to get the best offer
Payment Terms :
T/T, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
45 - 55 work days
Packaging Details :
Each piece for one wooden box
Item :
Gerotor Hydraulic Motor
Series :
110-1084-006
Origin :
China
Manufacturer :
Hanjiu
material :
cast iron
displacement :
12.54inr3
Description

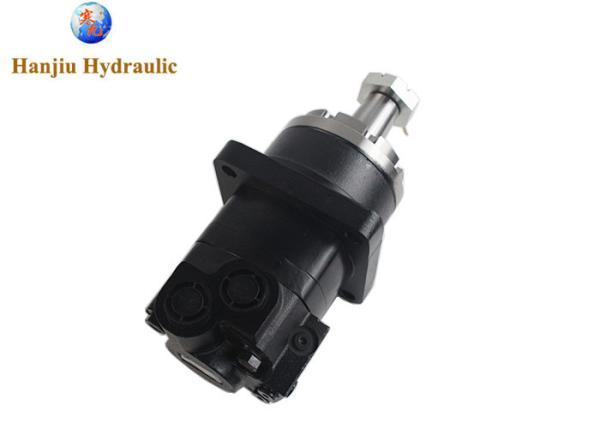

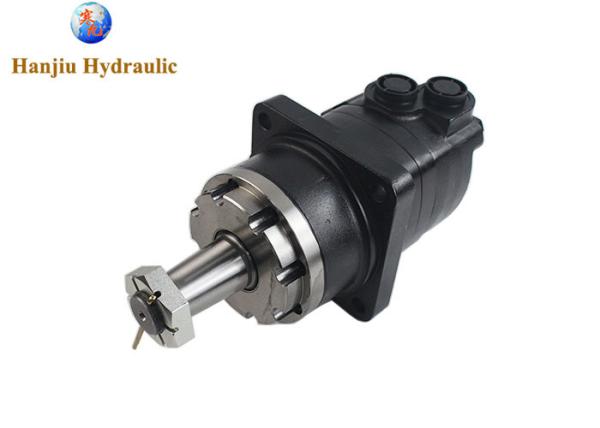

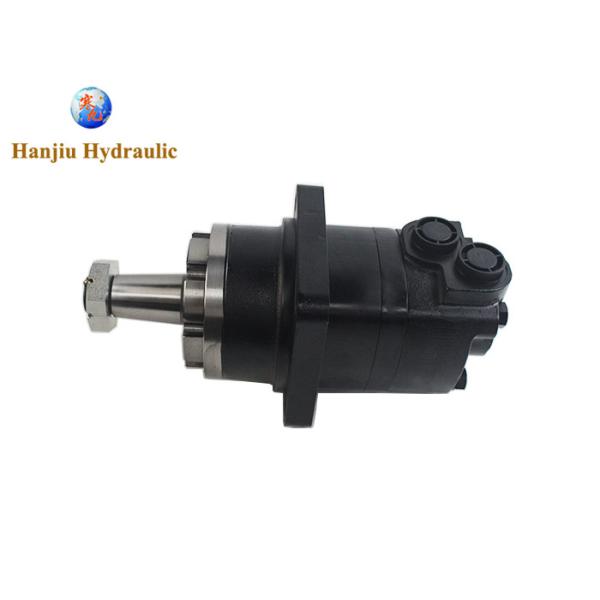

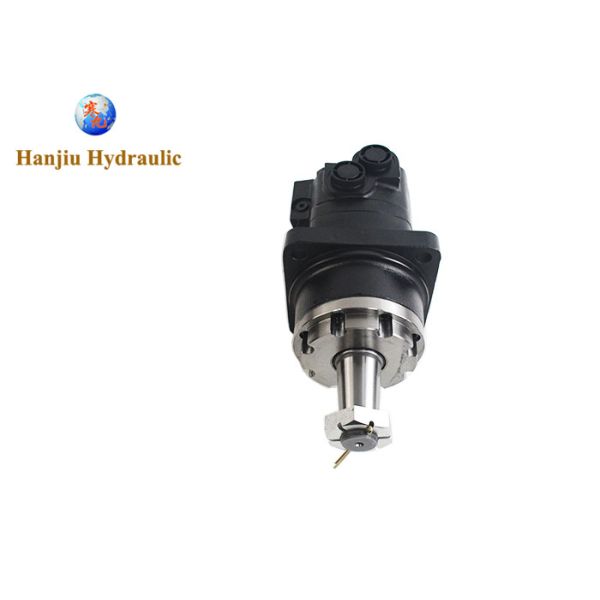

Cast Iron 4 Bolt Disc Geroler 110-1084-006 hydraulic orbit motor 205.5 CM3/R 4 Bolt 12.54 CID [12.54 IN3/R] O-Ring Port

Quick review:

110-1084-006

  • Displacement: 12.54 CID Mount: 4 BOLT WHEEL Shaft: 1.62 TAPERED - SLOTTED HEX NUT
  • Port: 1.06 SAE O RING STAGGERED SERIES: 4000 SERIES DISPLACEMENT: 205.5 CM3/R [12.54 IN3/R]
  • MOUNTING TYPE: WHEEL, 4 BOLT; 139.70 [5.500] PILOT DIA.14.27 [.562] DIA. HOLES ON 165.10 [6.500] DIA. BOLT CIRCLE. OUTPUT SHAFT: 41.28 [1.625] DIA. TAPERED WITH 11.112 [.4375] SQ X 31.75 [1.250] STRAIGHT KEY, 1.250-18UNEF-2A THREAD WITH SLOTTED HEX NUT
  • PORTS: 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS CASE FLOW OPTIONS: .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE

features

  • Standard, wheel or bearingless configurations
  • Lowest pressure drop motor in the industry
  • Highly-efficient Geroler motor provides energy savings

Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring PortCast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port

Here are examples we make 109- series motors , motor models contact us to get

Part # 　 Description Category
109-1001-006 EATON CHAR-LYNN M04067AB01AD02000000000000000F MOTOR 4000 SERIES
109-1002-006 EATON CHAR-LYNN M04099AB01AD02000000000000000F MOTOR 4000 SERIES
109-1003-006 EATON CHAR-LYNN M04125AB01AD02000000000000000F MOTOR 4000 SERIES
109-1006-006 EATON CHAR-LYNN M04067AB02AD02000000000000000F MOTOR 4000 SERIES
109-1008-006 EATON CHAR-LYNN M04125AB02AD02000000000000000F MOTOR 4000 SERIES
109-1011-006 EATON CHAR-LYNN M04067AB03AD02000000000000000F MOTOR 4000 SERIES
109-1012-006 EATON CHAR-LYNN M04099AB03AD02000000000000000F MOTOR 4000 SERIES
109-1013-006 EATON CHAR-LYNN M04125AB03AD02000000000000000F MOTOR 4000 SERIES
109-1052-006 EATON CHAR-LYNN M04190AE05AA01000000000000000F MOTOR 4000 SERIES
109-1053-006 EATON CHAR-LYNN M04240AE05AA01000000000000000F MOTOR 4000 SERIES
109-1054-006 EATON CHAR-LYNN M04080AB01AD02000000000000000F MOTOR 4000 SERIES
109-1055-006 EATON CHAR-LYNN M04150AB01AD02000000000000000F MOTOR 4000 SERIES
109-1056-006 EATON CHAR-LYNN M04190AB01AD02000000000000000F MOTOR 4000 SERIES
109-1057-006 EATON CHAR-LYNN M04240AB01AD02000000000000000F MOTOR 4000 SERIES
109-1059-006 EATON CHAR-LYNN M04150AB02AD02000000000000000F MOTOR 4000 SERIES
109-1061-006 EATON CHAR-LYNN M04240AB02AD02000000000000000F MOTOR 4000 SERIES
109-1062-006 EATON CHAR-LYNN M04080AB03AD02000000000000000F MOTOR 4000 SERIES
109-1063-006 EATON CHAR-LYNN M04150AB03AD02000000000000000F MOTOR 4000 SERIES
109-1064-006 EATON CHAR-LYNN M04190AB03AD02000000000000000F MOTOR 4000 SERIES
109-1065-006 EATON CHAR-LYNN M04240AB03AD02000000000000000F MOTOR 4000 SERIES
109-1087-006 EATON CHAR-LYNN M04067AB02AA01000000000000000F MOTOR 4000 SERIES
109-1094-006 EATON CHAR-LYNN M04171AB01AB02000000000000000F MOTOR 4000 SERIES
109-1100-006 EATON CHAR-LYNN M04067AB01AB02000000000000000F MOTOR 4000 SERIES
109-1101-006 EATON CHAR-LYNN M04080AB01AB02000000000000000F MOTOR 4000 SERIES
109-1102-006 EATON CHAR-LYNN M04099AB01AB02000000000000000F MOTOR 4000 SERIES
109-1103-006 EATON CHAR-LYNN M04125AB01AB02000000000000000F MOTOR 4000 SERIES
109-1104-006 EATON CHAR-LYNN M04150AB01AB02000000000000000F MOTOR 4000 SERIES
109-1105-006 EATON CHAR-LYNN M04190AB01AB02000000000000000F MOTOR 4000 SERIES
109-1106-006 EATON CHAR-LYNN M04240AB01AB02000000000000000F MOTOR 4000 SERIES
109-1107-006 EATON CHAR-LYNN M04067AB02AB02000000000000000F MOTOR 4000 SERIES
109-1108-006 EATON CHAR-LYNN M04080AB02AB02000000000000000F MOTOR 4000 SERIES
109-1109-006 EATON CHAR-LYNN M04099AB02AB02000000000000000F MOTOR 4000 SERIES

Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port

More EATON CHAY-LYNN Hydraulic Motors replacement
  • J (129-)
  • H (101-)
  • S (103-)
  • T (158-)
  • W (162-)
  • 2000 (104-, 105-, 106-,)
  • 4000 (109-, 110-,)
  • 6000 (112-, 113-, 114-)
  • 10000 ( 119-)

Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port

Cast Iron 4 Bolt Disc Geroler 110-1084-006 Hydraulic Orbit Motor 205.5 CM3/R 4 Bolt 12.54 CID 12.54 IN3/R O-Ring Port

Geroler motors offer several key advantages that make them well-suited for a wide range of applications

1. High Torque Output

Geroler motors are renowned for their exceptional torque output, even at low speeds.

This makes them ideal for heavy-duty applications where significant rotational force is required.

2. Smooth Operation

Geroler motors provide a smooth and pulsation-free operation, ensuring consistent performance and reduced noise levels.

3. Compact Design

Geroler motors are known for their compact size, allowing for efficient use of space in various installations.

4. Reversibility

Geroler motors can operate in both clockwise and counterclockwise directions, providing versatility in applications requiring reversible motion.

5. Wide Speed Range

Geroler motors are capable of operating over a wide range of speeds, making them adaptable to various requirements.

6. High Efficiency

Geroler motors generally exhibit high efficiency, converting hydraulic energy into mechanical energy with minimal losses.

7. Reliability and Durability

Geroler motors are designed for reliability and durability, ensuring long-term performance and minimal maintenance.

8. Versatility

Geroler motors are available in various sizes and configurations, making them suitable for a wide range of applications across different industries.

9. Low-Speed Performance

Geroler motors are particularly well-suited for low-speed applications, where they can maintain high torque output without sacrificing efficiency.

10. Ease of Maintenance

Geroler motors typically require minimal maintenance, with simple procedures for inspection and repair.

These advantages make Geroler motors a valuable choice for applications demanding high torque, smooth operation, and reliability.
