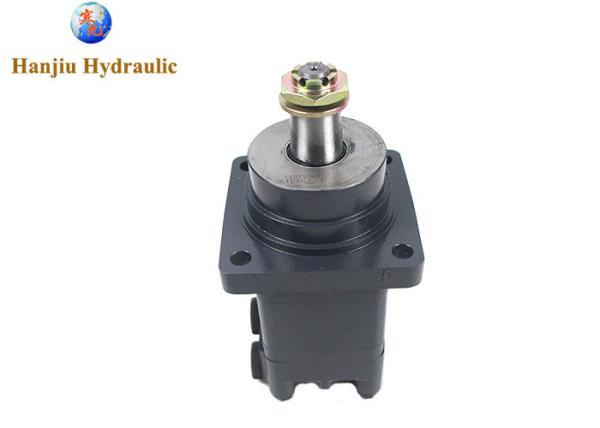

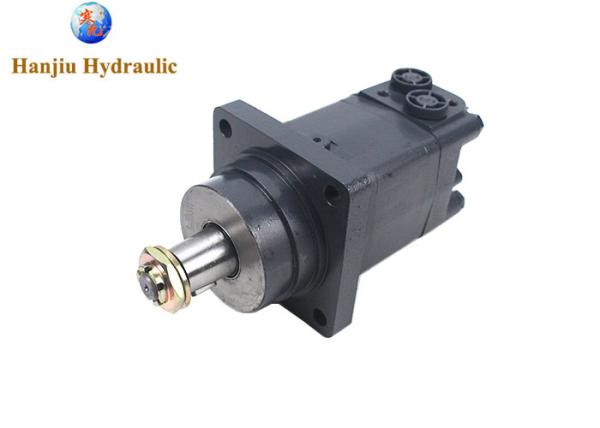

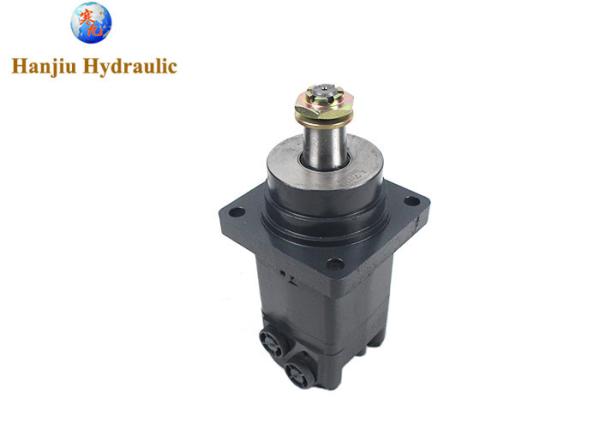

LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8
Specifications
Brand Name :
HANJIU CHINA
Model Number :
BMSY-315-WE-T1-D
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
Contact the seller to ask
Payment Terms :
L/C, D/A, T/T, Western Union, Payple
Supply Ability :
100000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
Box, Pallet
Item :
Hydraulic Motor
Type :
Low speed high torque
Flange :
wheel mounting
Shaft :
35mm cone-shaft
Material :
cast iron
warranty :
1 year
Description

LSHT Motor, 315cc, 240RPM, 7787in-lb, 2900psi Differential, 19.81GPM, Wheel Mount, tapered shaft φ35mm Shaft, Side Ported, #10 SAE (5/8")

Product details:

model type:BMSY-315-WE-T1-S

displacement:315cc

flange: wheel mounting

shaft:35mm cone-shaft

ports:7/8-14UNF

Main Specification:

Type BMSY
BMSE
80		 BMSY
BMSE
100		 BMSY
BMSE
125		 BMSY
BMSE
160		 BMSY
BMSE
200		 BMSY
BMSE
250		 BMSY
BMSE
315		 BMSY
BMSE
375
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8

More flange, shaft, oil ports, displacement can be provided as below:

LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8

LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8

LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8

LSHT Motor 315cc 240RPM 7787in-lb 2900psi Differential 19.81GPM Wheel Mount tapered shaft φ35mm Shaft Side Ported #10 SAE 5/8

The BMSY series motor adapts the advanced ROLORTORC gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
