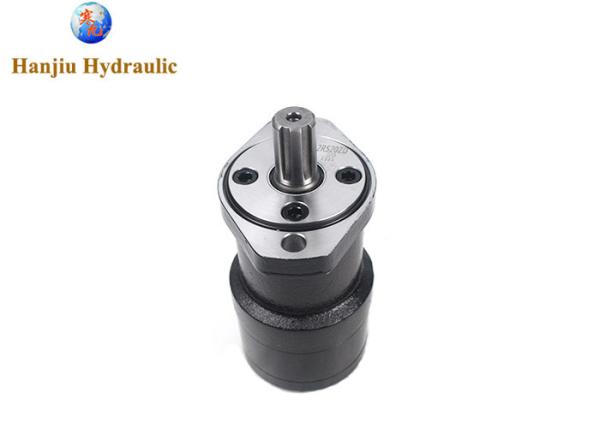

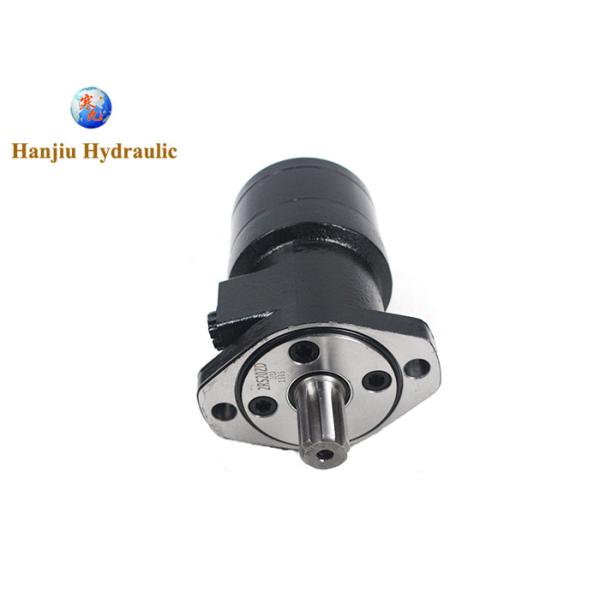

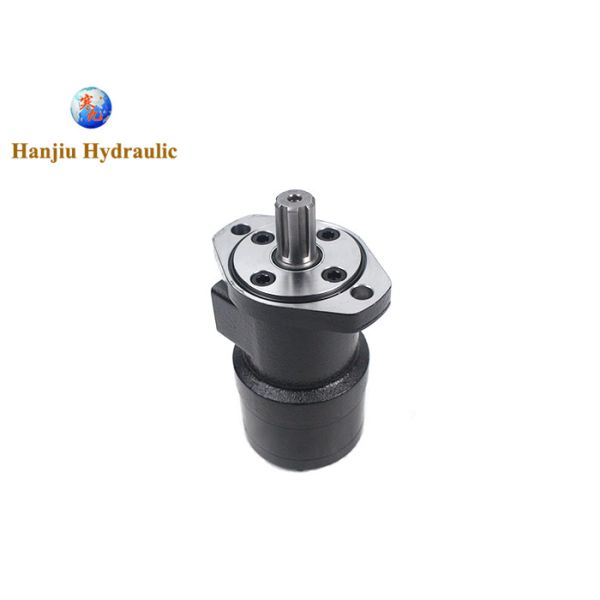

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
Specifications
Brand Name :
HANJIU
Model Number :
BMRS-200-H2R-S-S
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Contact seller for latest offer
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
200000 pieces per year
Delivery Time :
35 work days
Packaging Details :
Carton, Box, Pallets
Product :
Hydraulic motor,orbit motor
Model No. :
BMRS200
Manufacturer :
Hanjiu
Origion :
China
material :
cast iron
warranty :
1 year
Description

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree

Quick review:

Model number: BMRS-200-H2R-S-S
Displacement: 200 ml/r
Shaft:SAE 6B Spline shaft
Rotation, CW

specialty: the shaft is 90 degree rotated with flange
application:slew drive

Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
40		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
400
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Technical data for BMR with 31.75 and 32 shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

BMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degreeBMRS200 Hydraulic Motor Orbit Motor 2 Bolts Flange SAE 6B spline Shaft flange rotated 90 degree
