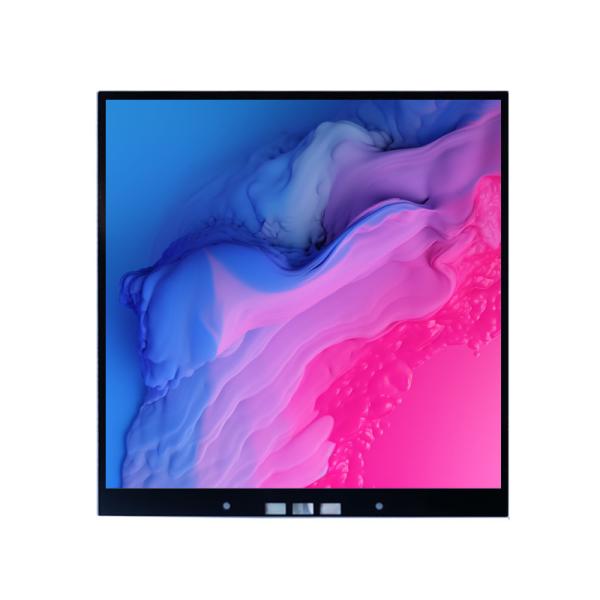

3.95 Inch Square TFT Display Module Custom Square LCD Display
3.95 Inch Square TFT Display Module Custom Square LCD Display
Specifications
Brand Name :
Manufacturer
Model Number :
90-39502-001
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, CHINA
MOQ :
1
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size(inch) :
3.95
Resolution :
720*720 pixels
Viewing Angle :
ALL
Active Area(mm) :
71.93*71.93
Module Size(mm) :
74.83*78.98*1.5
Interface :
RGB 40
Operating Temperature :
-20~70
Luminance(nits) :
300-1000
Description

Feature Description: 3.95-Inch IPS LCD Display with 720x720 Resolution

Custom TFT LCD Module 720*720 3.95 Inch Square LCD Display

The 3.95-inch IPS LCD display with a resolution of 720x720 pixels offers a range of features that contribute to

its visual quality and versatility. Here are the key features of this display:

1) High Resolution: The display boasts a resolution of 720x720 pixels, providing a sharp and detailed image quality.

This resolution ensures that text, graphics, and multimedia content are rendered with clarity and precision, offering an

immersive visual experience.

2) IPS Technology: The display utilizes In-Plane Switching (IPS) technology, which provides wide viewing angles without

color distortion or loss of image quality. This ensures that the displayed content can be viewed clearly and accurately

from various angles, making it suitable for applications where multiple viewers may be present.

3) High Contrast Ratio: The display offers a high contrast ratio, enhancing the distinction between bright and dark areas

on the screen. This results in sharper and more vivid visuals, improving the overall image quality and legibility

of the displayed content.

4) Durability and Reliability: The display is built to withstand rugged conditions, ensuring long-term reliability. It is

designed to resist shocks, vibrations, and temperature fluctuations, making it suitable for use in demanding environments.

More Details

Feature Description
Model Number 90-03502-001
Viewing Angle(RLUD) 60/60/50/50
View Direction 6
Interface MCU 40
Brightness(cd/m²) 350
LED Lifetime (hrs) 20K
Contrast Ratio 500
Operating Temperature -30℃ to 80℃
Storage Temperature -30℃ to 85℃
Application It can be utilized in various applications such as smartphones, handheld devices, wearable gadgets, embedded systems, and small displays where clear and detailed visuals are essential.
Touchscreen Support Optional touchscreen functionality (PCAP, capacitive or resistive)

Some Classic Products in our company for reference( All products can be tailored according to your requirements)

Size
(inch)		 Resolution Viewing
angle		 Active Area
(mm)		 Module Size
(mm)		 Interface OP℃ Luminance(nit)
2 320*240 IPS 40.8*30.6 46.1*40.96*2.43 RGB -20~70 200-500
2 240*320 IPS 30.6*40.8 36*51.6*2.45 MCU/RGB -20~70 200-500
3.5 320*480 IPS 48.96*73.44 60.2*97.7*3.39 MCU -20~70 200-500
3.5 1240*800 IPS 74.4*48 78.15*56.05*3.75 MIPI -20~70 200-500
4.3 480*272 TN 95.04*53.86 105.5*67.2*3 RGB -20~70 300-600
5 720*1280 IPS 61.78*109.82 64.15*117.25*1.49 MIPI -20~70 300-600
7 1024*600 IPS 154.21*85.92 164*97*2.6 MIPI -20~70 300-600
7 800*480 TN 154.08*85.92 164.9*100*5.7 RGB -20~70 300-600
8 800*1280 IPS 107.64*172.22 112.64*181.72*2.53 MIPI -20~70 300-600
8 1024*600 IPS 196.608*114.15 210.7*124.6*5 LVDS -20~70 300-600
9.7 1024*768 TN 196.61*147.46 210.2*164.2*4.9 LVDS -20~70 300-1000
9.7 1280*800 IPS 216.96*135.6 229.46*149.1*2.5 LVDS -20~70 300-1000
10.3 720*1600 IPS 106.92*237.6 115*250.8*4.6 MIPI -20~70 300-1000
10.25 1280*480 IPS 243.84*91.44 255.6*105.82*1.254 LVDS -20~70 300-1000
10.4 1024*768 IPS 211.2*158.48 225.8*174.3*5.6 LVDS -20~70 300-1000
12.1 1024*768 IPS 245.76*184.32 260.5*202*10.5 LVDS -20~70 300-1000
13.3 1920*1080 IPS 293.8*165.2 305.2*178.2*2.6 LVDS -20~70 300-1000
15 1024*768 TN 304.128*228.096 326.5*253.5*12 LVDS -20~70 300-1000
15 1600*1200 IPS 304.88*228.5 326.58*252.98*11 LVDS -20~70 300-1000
15.6 1920*1080 IPS 344.16*193.59 350.70*205.27*3.00 EDP -20~70 300-1000
17.3 1920*1080 IPS 381.888*214.812 389.888*227.012*3.5 LVDS -20~70 300-1000
