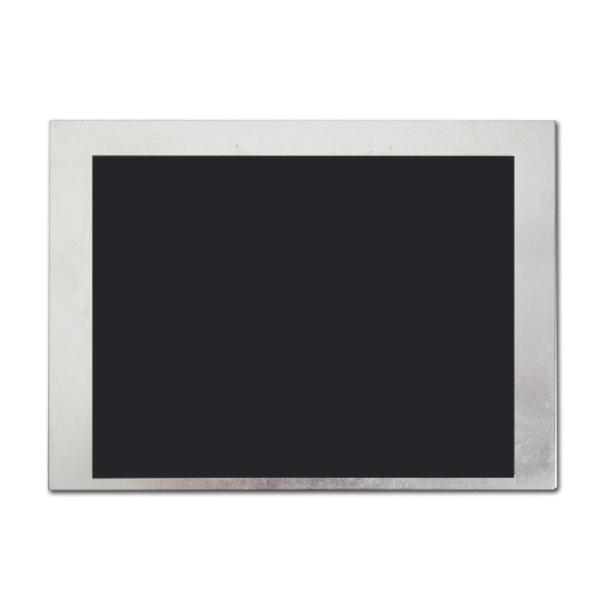

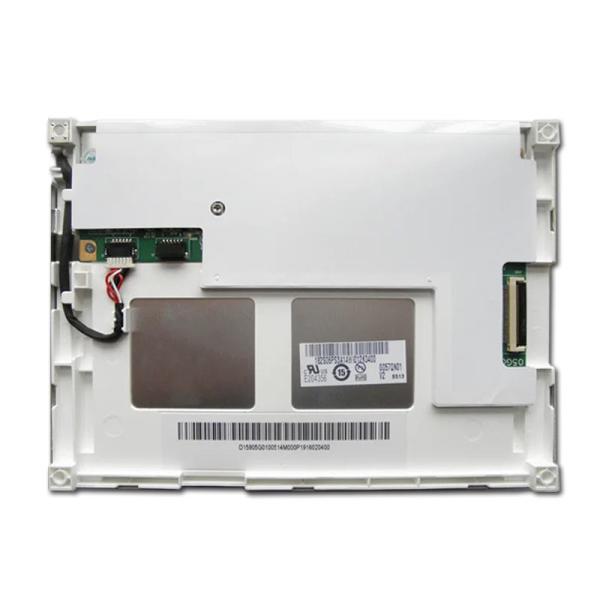

AUO G057QTN01.0 TFT LCD Module 5.7 Inch 320 RGB×240 Pixels
AUO G057QTN01.0 TFT LCD Module 5.7 Inch 320 RGB×240 Pixels
AUO G057QTN01.0 TFT LCD Module 5.7 Inch 320 RGB×240 Pixels
AUO G057QTN01.0 TFT LCD Module 5.7 Inch 320 RGB×240 Pixels
Specifications
Brand Name :
AOU
Model Number :
AUO G057QTN01.0
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, CHINA
MOQ :
1
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size(inch) :
5.7
Resolution :
320(RGB)×240
Viewing Angle :
TN
Active Area(mm) :
115.2(W)×86.4(H)
Module Size(mm) :
144(W)×104.6(H)×12.8(D)
Interface :
CMOS
Operating Temperature :
-30~85
Luminance(nits) :
500
Description

General Specification

Parameter Specification Unit
LCD size 5.7 (Diagonal) inch
Number Of Pixels 320(RGB)×240 pixels
Active Area (W*H) 115.2(W)×86.4(H) um
Outline Dimension (W*H*T) 144(W)×104.6(H)×12.8(D) mm
Viewing angle(RLUD) 80/80/70/70 mm
View Direction TN
Interface CMOS
Brightness 500 cd/m²
LED Lifetime 50k hrs
Contrast Ratio 700
Operating Temperature -30℃-85℃
Storage Temperature -30℃-85℃

The AUO G057QTN01.0 TFT LCD Module has a 5.7-inch display and offers a resolution of 320 x 240 pixels. It can generate clear and vivid visuals that are applicable to numerous kinds of applications.

This module is constructed with a TN (Twisted Nematic) panel. It ensures dependable performance and has a viewing angle that is suitable for typical usage circumstances. With a brightness level of 500 nits, it provides remarkable visibility even in brightly lit environments.

The display is furnished with a 33-pin CMOS interface. This interface simplifies the integration process with a variety of microcontrollers and systems. It is designed to work effectively within a temperature range from -30°C to 85°C. This wide temperature range makes it perfect for both indoor and outdoor applications, especially in harsh conditions.

As an A-grade product, the AUO G057QTN01.0 assures high quality and durability. It guarantees a stable supply and reliable performance for a wide range of projects, such as industrial control systems, medical devices, and portable electronics.
