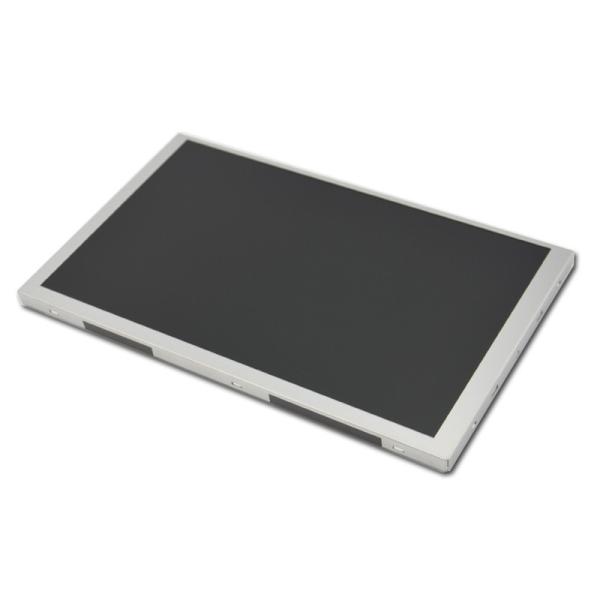

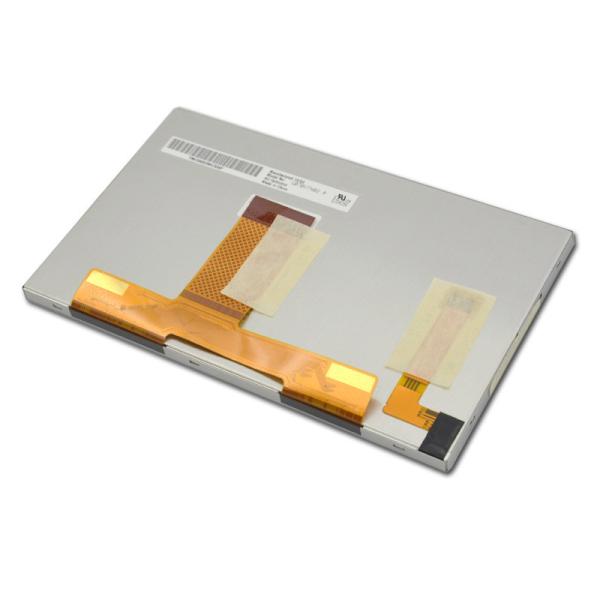

G070VTN02.0 7 Inch TFT LCD Screen From AU Optronics Corporation
G070VTN02.0 7 Inch TFT LCD Screen From AU Optronics Corporation
G070VTN02.0 7 Inch TFT LCD Screen From AU Optronics Corporation
G070VTN02.0 7 Inch TFT LCD Screen From AU Optronics Corporation
Specifications
Brand Name :
AOU
Model Number :
G070VTN02.0
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, CHINA
MOQ :
1
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size(inch) :
7.0
Resolution :
800(RGB)×480
Viewing Angle :
TN
Active Area(mm) :
152.4(W)×91.44(H)
Module Size(mm) :
169(W)×103.51(H)×6.52(D)
Interface :
RGB
Operating Temperature :
-30~70
Luminance(nits) :
1500
Description

General Specification

Parameter Specification Unit
LCD size 7 (Diagonal) inch
Number Of Pixels 800(RGB)×480 pixels
Active Area (W*H) 152.4(W)×91.44(H) um
Outline Dimension (W*H*T) 169(W)×103.51(H)×6.52(D) mm
Viewing angle(RLUD) 65/65/50/60 mm
View Direction TN
Interface RGB
Brightness 1500 cd/m²
LED Lifetime 10k hrs
Contrast Ratio 600
Operating Temperature -30℃-70℃
Storage Temperature -40℃-95℃

The G070VTN02.0 incorporates TN (Twisted Nematic) technology. Thanks to this technology, it can offer an outstanding brightness level of 1500 nits. Such a high brightness ensures exceptional visibility even in brightly lit environments. Consequently, it is highly ideal for outdoor applications where clear readability is of crucial importance.

This display is able to operate efficiently within a temperature range that stretches from -30 to 70 °C. This makes it suitable for use in rather demanding conditions.

It features an RGB interface, which simplifies the process of integrating it into existing systems. Moreover, it provides flexibility for different electronic setups.

The G070VTN02.0 has been designed with durability as a key aspect. Its backlight has a lifespan of around 10,000 hours. This long lifespan guarantees reliable performance over an extended period of time.

As an A-grade product, the G070VTN02.0 ensures high quality and stability. Therefore, it is a dependable choice for a variety of consumer and industrial applications.

Regardless of whether it is used for automotive displays, handheld devices, or other electronic products, the G070VTN02.0 TFT LCD Screen proves to be a solid option that can meet the requirements of modern technology.
