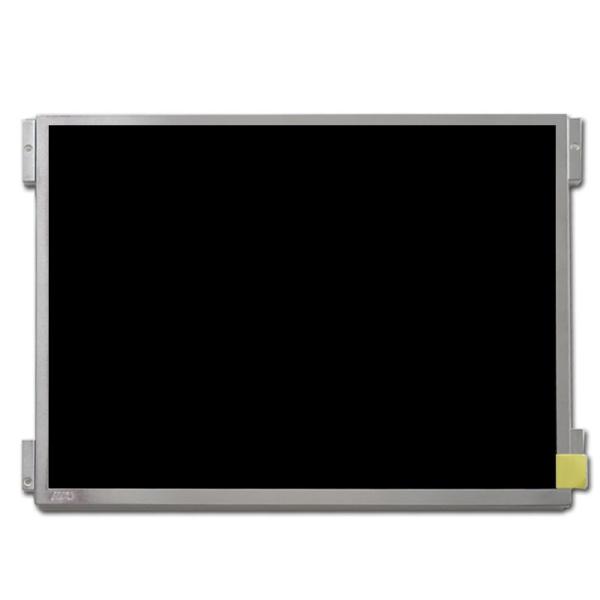

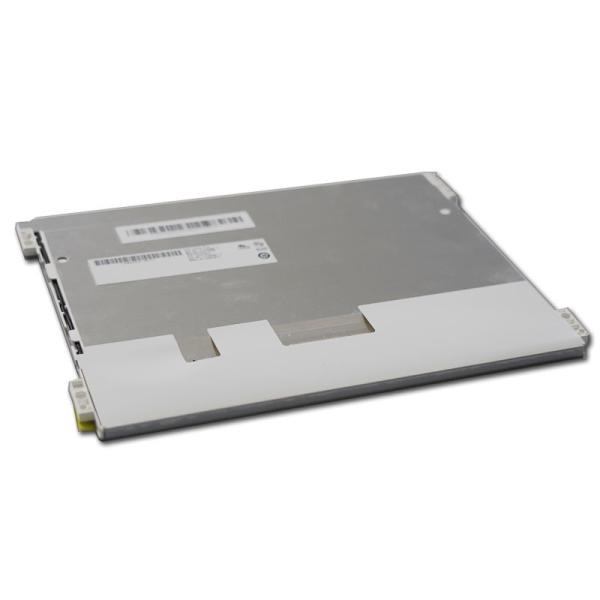

10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
10.4 inch 1024*768 Display AUO G104XVN01.010 IPS Display Panel Provider
Specifications
Brand Name :
AUO
Model Number :
G104XVN01.010
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Hangzhou, China
MOQ :
100
Price :
$2~$500 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5k-20k pieces per day
Delivery Time :
3-4 weeks
Packaging Details :
CUSTOMIZED
Size (inch) :
10.4
Resolution :
1024×768
Operating Temperature :
-30 ~ 80 °C
Brightness (cd/m²) :
470
Outline Dim(mm） :
238.6(W)×175.8(H) ×7.2(D)
Viewing angle(RLUD) :
IPS
Description

Product Description:

Genearal Features
Brand AUO Model Number G104XVN01.010
Diagonal Size 10.4" Resolution 1024(RGB)×768, XGA 123PPI
Active Area 210.4(W)×157.8(H) mm Outline Dim. 238.6(W)×175.8(H) ×7.2(D) mm
Luminance 470 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
Best View On Symmetry Response Time 15/10 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 Operating Mode AHVA, Normally Black, Transmissive
Interface LVDS (1 ch, 6/8-bit) , 30 pins Connector Life Span 70k
Weight 295g (Max.) Power Supply 3.3V (Typ.)
Environment Operating Temperature:-30 ~ 80 °C
Storage Temperature:-30 ~ 80 °C
More details please contact us

Features:

The AUO G104XVN01.010 is a high-performance 10.4-inch XGA display that offers exceptional image quality, wide viewing angles, and robust design for a variety of demanding applications. Here is a detailed product description:

XGA Resolution Display:

Resolution of 1024 x 768 pixels

Pixel density of 123 PPI

Provides crisp and detailed visual content for XGA-level applications

Superior Luminance and Contrast:

Typical luminance of 470 cd/m²

Impressive contrast ratio of 1000:1 (Typical)

Delivers vivid and high-contrast imagery, even in bright environments

Responsive Performance:

Fast response time of 15/10 ms (Typical) for Tr/Td

AHVA (Advanced Hyper-Viewing Angle) operating mode for wide viewing angles and excellent image quality

Symmetrical Wide Viewing Angle:

Viewing angles of 89/89/89/89 (Left/Right/Up/Down)

Symmetrical viewing for optimal visibility from any angle

Robust and Reliable Design:

Durable LVDS (1 ch, 6/8-bit) interface with a 70,000 connection lifecycle

Compact and lightweight design with a maximum weight of 295g

Wide operating temperature range of -30°C to 80°C and storage temperature range of -30°C to 80°C

Versatile Power Requirements:

Standard 3.3V (Typical) power supply

Suitable for a wide range of embedded and industrial applications


Applications:

The key strengths of the AUO G104XVN01.010 display include its high-luminance XGA AHVA panel, exceptional contrast ratio, fast response time, and wide viewing angles. These features make it an excellent choice for applications that require superior image quality, responsive performance, and robust reliability, such as:

Industrial automation and control systems

Medical equipment and devices

Digital signage and kiosks

Transportation and automotive applications

Outdoor or rugged environments (e.g., construction, military)

Handheld and portable devices

Support and Services:

- Troubleshooting and diagnosis of technical issues

- Repair and replacement services for defective parts

- Firmware and software updates for improved performance

- Technical documentation and user manuals

- Technical training for technicians and installers
