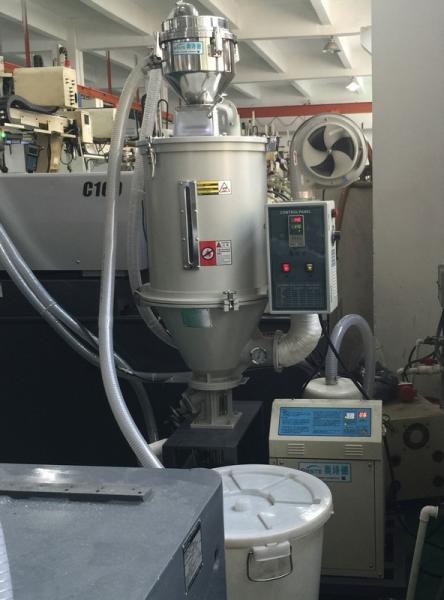

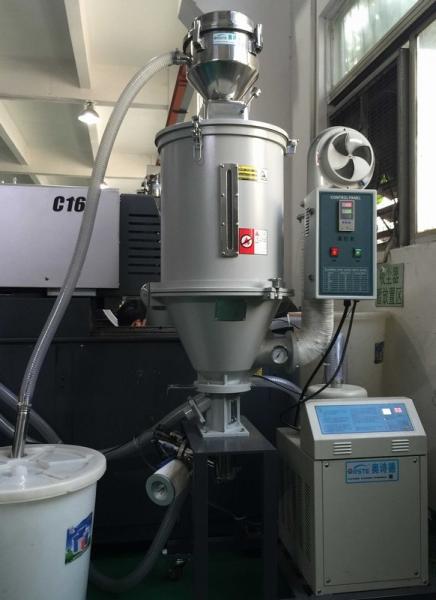

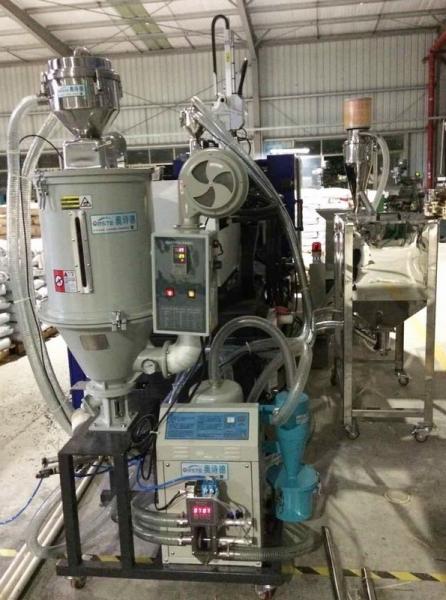

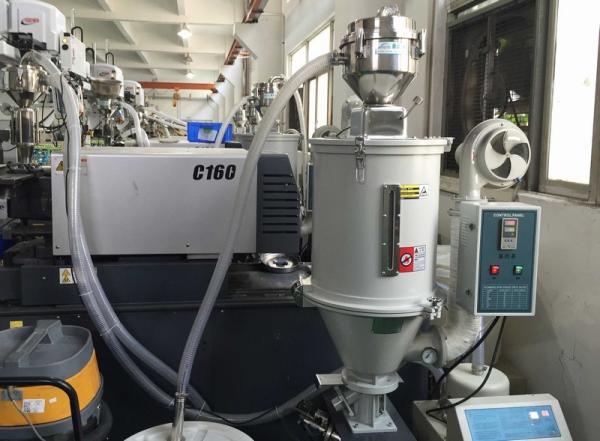

Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
Specifications
Brand Name :
Orste
Model Number :
ODL-40~ODL-600
Certification :
CE, ISO, TUV
Place of Origin :
Dongguan, Guangdong Province, China
MOQ :
1 Set
Price :
1,000~2,280USD/Set
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
1500 Sets/Year
Delivery Time :
30 Days
Packaging Details :
Standard Export Packing
Material :
Stainless Steel & Aluminum
Application :
Plastic Drying & Loading
Color :
Gray & Green
Origin :
China
Description

Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160

Drying Loader, Hopper Loader, Plastic Drying Loader, Compact Dryers, Plastic Loading Dryers

Naming Principle

ODL – xxx – xxx

① ② ③

① Orste Drying Loader

② Hopper Capacity (L)

③ Loader Model

Product Features

  • Material-contact surface made of stainless steel to eliminate material contamination.
  • The closely casting aluminum shell ensures excellent insulation.
  • Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.
  • The hopper design is convenient for cleaning and material change.
  • Accurate temperature controller guarantees easy control of temperature.
  • Overheat protection device makes machine run safely and reliably.
  • Dust-proof mute blower prevents dust from polluting material.
  • Material window in hopper and base makes it convenient to observe the material usage.

  • Working Principle

The plastic resin is loaded by the vacuum loader to the drying hopper, after drying, the dried resin is loaded to the feeding port of the molding machine. It's suitable for normal plastic resin drying, not suitable for hygroscopic resin drying. For drying of hygroscopic plastic granules, low dew-point dehumidifying dryers are needed for drying.

Parameters / Specifications

Model Applicable Dryer Applicable Loader Vacuum Hopper Receiver Conveying Capacity (kg/hr) Hopper Capacity (L) Measurement (mm) Weight (kg)
ODL-40 OHD-40 OAL-1.5S OAL-1S 1 x OMH-7.5L 300 1*7.5 620*1000*640 95
OAL-2S

1 x OPH-7.5L

1 x OMH-7.5L

 450 2*7.5
ODL-80 OHD-80 OAL-1.5S OAL-1S 1 x OMH-7.5L 300 1*7.5 750*1000*640 110
OAL-2S

1 x OPH-7.5L

1 x OMH-7.5L

 450 2*7.5
ODL-120 OHD-120 OAL-1.5S OAL-1S 1 x OMH-7.5L 300 1*7.5 850*1000*640 115
OAL-2S

1 x OPH-7.5L

1 x OMH-7.5L

 450 2*7.5
ODL-160 OHD-160 OAL-1.5S OAL-1S 1 x OMH-7.5L 300 1*7.5 950*1080*710 155
OAL-2S

1 x OPH-7.5L

1 x OMH-7.5L

 450 2*7.5
ODL-300 OHD-300 OAL-1S 1 x OMH-7.5L 300 1*7.5 2000*1080*710 160
OAL-2S

1 x OPH-7.5L

1 x OMH-7.5L

 450 2*7.5
ODL-600 OHD-600 OAL-2S 1 x OMH-7.5L 400 12 3850*1140*840 210
OAL-3S

1 x OPH-7.5L

1 x OMH-7.5L

 700 2*12
Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160Plastic Drying Hopper Loader Two-in-One Compact Dryers Hopper Loading Dryers ODL-160
