Plastic Resin Granule Drying Machine Hopper Dryer for Injection Molding Extrusion
Keywords: Hopper Dryer, Drying Hopper, Plastic Machine, Plastic Drying Machine, Plastic Auxilliary Equipment
Naming Principle
OHD - xxx
① ②
① Orste Hopper Dryer
② Hopper Capacity (L)
Product Features
OHD series adopt hot air diffuser to gain an even hot air flow to improve drying efficiency.
Material-contact surface made of stainless steel to eliminate material contamination.
The closely casting aluminum shell ensures excellent insulation.
Hot air inlet elbow design can effectively avoid burning caused by dust piling up at the bottom of the pipe heaters.
The hopper design is convenient for cleaning and material change.
Accurate temperature controller guarantees easy control of temperature.
Overheat protection device makes machine run safely and reliably.
Dust-proof mute blower prevents dust from polluting material.
Material window in hopper and base makes it convenient to observe the material usage.
Parameters / Specification
Model | Capacity | Heating (kw) | Blower (kw) | Measurement (mm) | Installation (mm) | Weight (kg) | |
L | kg | ||||||
OHD-20 | 20 | 12 | 1.8 | 0.05 | 610*320*925 | 110*110 | 35 |
OHD-40 | 40 | 25 | 3.5 | 0.09 | 760*486*1035 | 150*150 | 40 |
OHD-80 | 80 | 50 | 4.5 | 0.1 | 865*542*1210 | 160*160 | 45 |
OHD-120 | 120 | 75 | 6.5 | 0.25 | 940*605*1310 | 160*160 | 55 |
OHD-160 | 160 | 100 | 6.5 | 0.25 | 1012*695*1406 | 200*200 | 70 |
OHD-300 | 300 | 200 | 12 | 0.3 | 1180*838*2020 | 230*230 | 100 |
OHD-600 | 600 | 400 | 15 | 0.75 | 1475*1058*2020 | 275*275 | 165 |
OHD-900 | 900 | 600 | 20 | 1.1 | 1580*1158*2400 | 280*280 | 240 |

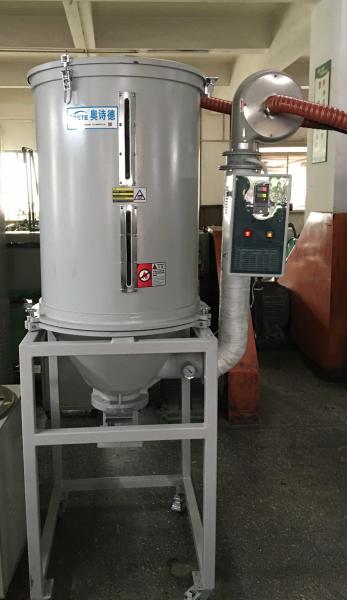

Product Photos
OHD series hopper dryer is normally applied for drying of non-hygroscopic engineering plastic resins or mildly hygroscopic plastic with not very strict moisture content requirement, like PE, PVC and etc. OHD hopper dryer is economic in cost, but not good drying effect. For medium and highly hygroscopic plastic resin drying, dehumidifying dryers are strong suggested.
