Specifications
Place of Origin :
Dongguan, China
Brand Name :
ORSTE
Certification :
CE, ISO, SGS
Model Number :
OG-1217-1LS ~ OG-3136-5LS
MOQ :
1 Set / Order
Price :
USD 1980 ~ 2999 / Set
Packaging Details :
Standard Export Packing
Delivery Time :
7-15 days
Payment Terms :
TT, LC, Paypal, West Union, Cash
Supply Ability :
500-3000 Sets / Year
Material :
SUS steel
Application :
Plastic Sprues
Motor :
Slow speed type
Capacity :
20 Kg/H
Volume :
Compact
Description

FEATURES

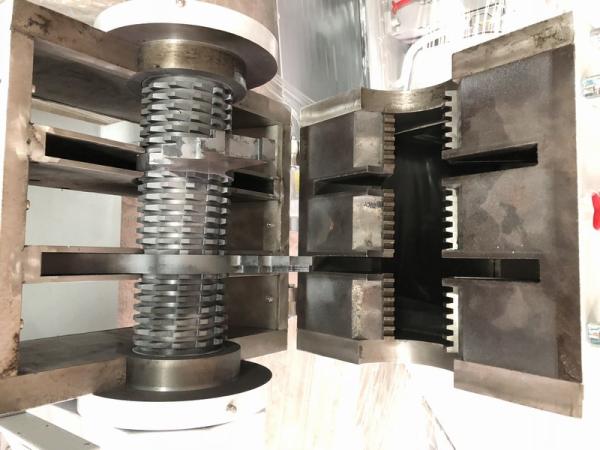

1. For OG- series granulators, teeth cutter and cutting blades are integrally fitted in one cutting chamber. Regrinds could be used with virgin materials.
2. New-type inclined teeth cutter reduces the possibility of stress concentration, enhance bearing capacity and converts force direction so that cutter lifespan can be prolonged.
3. The material collector is located outside the cutting chamber to avoid leakage.
4. Optimum cutting angle makes resistance small and avoid blockage to improve cutting efficiency.
5. Optimal design can effectively reduce vibration during operation of granulator.
6. Cutting chamber is made of mirror finished stainless steel, which is durable and elegant.
7. Low speed granulating ensures well-proportioned granules and low dust level.
8. Low speed and sound-proof material hopper brings a quiet operation environment.
9. Easy access to maintenance and cleaning.
10. Small in size with castors for easy moving.

APPLICATION

OG series granulators are applied to granulate sprues or few defects. They are always collocated with robots or belt conveyors beside the injection moulding machine. They feature low speed, big driving torque, low noise, few dust and easy operation.

PRODUCT PARAMETERS / SPECIFICATIONS

Model Motor Power Hopper Size (mm) Qty. of Staggered Cutter Qty. of Teeth Cutter Rotating Speed (rpm) Max. Capacity (kg/hr) Dimension L*W*H (mm) Weight (kg)
kw hp
OG-1217-1LS 0.75 1 230*165 1 2 27~35 15 540*320*880 165
OG-2326-2LS 1.5 2 230*255 2 3 27~35 20 540*400*900 200
OG-2626-3LS 2.2 3 260*261 2 3 27~35 20 540*400*900 220
OG-2636-3LS 2.2 3 260*360 3 4 27~35 25 610*500*920 250
OG-2636-5LS 3.75 5 260*360 3 4 27~35 25 610*500*920 270
OG-3136-5LS 3.75 5 310*360 3 4 27~35 30 610*500*920 300
