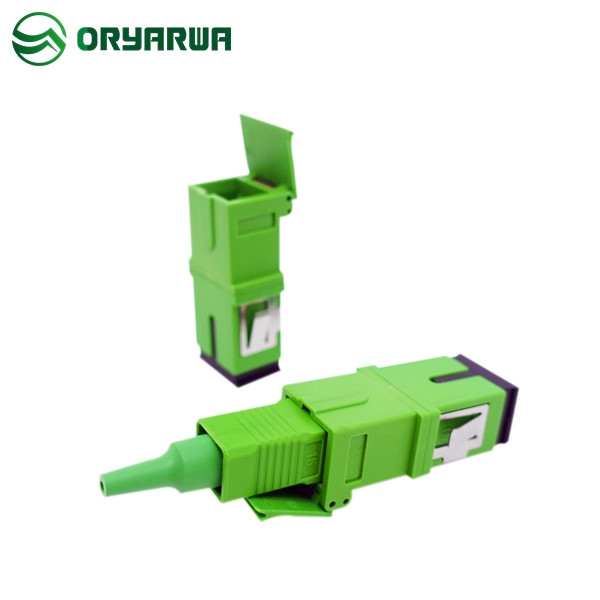

Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter
Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter
Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter
Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter
Specifications
Brand Name :
Oryarwa
Model Number :
SC Simplex Outer Shutter Fiber Optic Adapter
Certification :
ISO9001
Place of Origin :
Zhejiang
MOQ :
1000
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000000 PCS/Month
Delivery Time :
3-14 Days
Packaging Details :
25 Pcs/Plastic Tray; Carton: 47*24*34CM; 12KG/1000PCS /CTN
Product Name :
SC Simplex Outer Shutter Fiber Optic Adapter
Color :
Green
Mode Type :
Singlemode, Multimode
Insertion Loss :
≤0.2dB
Durability :
≤0.2dB( 500 Times)
Sleeve Pull Force :
2-5.9N
Operating Temp. :
-40℃～+80℃
Storage Temp. :
-40℃～+80℃
Meeting Standards :
IEC61754-4-2013 / IEC613000
Description

Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter

Welded Housing SC Simplex Ourter Shutter Fiber Optic Adapter without Flange

Hight Light: Eye Protection, good performerce laser proof with innner shutter

Detailed Product Description:

Product Name

SC Simplex Outer Shutter Fiber Optic Adapter

Color

Green

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

2-5.9N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃～ + 80℃

Standards

IEC61754-4-2013 / IEC613000

Environmental and Mechanism:

Properties

Test Condition

Conformance

Test Result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC

≤0.2dB

Storage Temperature

-40ºC to +85ºC

≤0.2dB

Features:

> Auto shutter protects against dust and contaminants

> Eye Protection

> Strict testing standards and methods for quality

> Strict testing standards and methods for quality
> Environment protection (ROHS Compliance)

> Precision connection with sleeve

> Zirconia Sleeve ,Compact design

> Complies with IEC 61754-4, Flammability UL94 V-0 standard

Fiber Optic Adapter Application:

> CATV
> Active device termination
> Telecommunication networks
> Metro
> Local Area Networks (LANs)
> Data processing networks
> Test equipment
> Premise installation
> Wide Area Networks(WANs)

Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter

Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter

Welded Housing SC Simplex Optical Fiber Adaptor Flangeless Ourter Shutter

FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.

Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.

Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.

Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.
