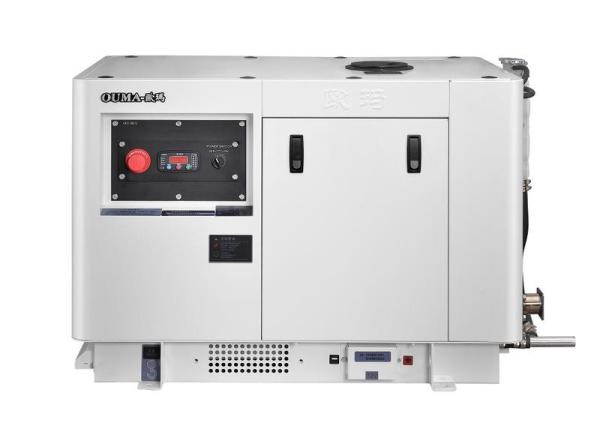

8KW three phase marine generator-OUMA FAWDE series
8KW three phase marine generator-OUMA FAWDE series
Specifications
Place of Origin :
Wuxi,Jiangsu,China
Brand Name :
OUMA
Certification :
CE,ISO
Model Number :
OM8CYZ3
Rated Output :
8KW/50HZ,11KW/60HZ
RPM :
1500RPM/50HZ,1800RPM/60HZ
MOQ :
5 units
Price :
To be inquired
Packaging Details :
Plastic wrap, then veneer case
Delivery Time :
20 working days
Payment Terms :
T/T or L/C at sight
Supply Ability :
100 units/day
Description

OUMA FAWDE series Marine generators ranging from 8kw to 20kw are powered by China first top engine FAWDE. As the second biggest partner for FAWDE in genset application, OUMA receives best service and support from FAWDE and in barcode system of FAWDE. Engine in white is unique to OUMA.

In China, OUMA is the leader in the marine generator industry as a nominated supplier and over 50% market share in China in fields of excursion boats, yachts, China Marine Bureau, China Fishery Administration, etc.

OUMA Marine generators have features to best suitable for the local application conditions:

  • 6-20kW powered by first top Chinese engine OUMA FAWDE or international brand Kubota.
  • Patent design of housing with perfect aesthetic, cooling and noise reduction effects.
  • Unique noise reduction technology, noise of silent gensets is within 62dbA.
  • Standard configuration of sea water filter, water-cooled silencer, wire remote controller, heat exchanger, sea water pump.
  • External cooling of engine by sea water or river water.
  • 60℃ radiator is used on all gensets so they can be used in all weather conditions
  • 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
  • Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF＜50%, THF＜2%, IP22.
  • Complete display of main parameters and protections on the control panel.
  • Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.
  • Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
  • Relay, fuse and AVR are in one box for easy maintenance or repair.
  • Smallest size compared with counterparts using the same engine and alternator for the same rating gensets. Save transportation cost and installation space.
  • Availability of manufacturer genuine spare parts for whole life of the gensets.
  • Assembling bolts are hidden covered by corrosion-resistant rubber cover.

Specifications:

Generator Set Model OM8CYZ3
Brand OUMA
Rated power(KW) 8 11
Rated voltage(V) 400/230 416/240
Rated current(A) 14.4 19
Rated frequency(Hz) 50 60
Waveform distortion Sinewave, distortion ≤5%
Noise level(dB@7m) 62
Battery(12V-Ah) None
Overall dimension
(L×W×H)(mm)		 ≤ 1070x680x750
Overall weight(kg) ≤480
Fuel tank capacity(L) None
Diesel Engine Model OM388
Brand OUMA
Power output(KW) 12 14
Type 3 cylinder, direct injection, four stroke
Displacement(L) 1.4
Bore×Stroke(mm) 88×95
Rotation speed(r/m) 1500 1800
Governor system Mechanical
Starting mode 12V DC
Filter system Dry air filter, fuel filter, oil filter
Cooling type External cycling sea water or river water
Exhaust muffler Water cooled
Heat exchanger(L) 9
Sea water pump suction(M) 1
Sea water filter Available
Fuel consumption(g/kw.h) ≤220
Oil capacity(L) 8.3
Alternator Model OM164CZ3
Brand OUMA
Rated power(KW) 8.5 11
Excitation mode Brushless, self-excitation
Voltage regulation Auto regulation
Number of phase Three phase,four wire
Number of pole 4
Rotation speed(R/M) 1500 1800
Temperature rise(℃) 125
Insulation grade(stator/rotor) H/H
Voltage regulation range w/o load ≥95%～105%
Steady-state voltage deviation Less ±1%
Interference factor TIF＜50,THF＜2%
IP grade IP22
Control panel Model OM588
Manufacturer OUMA
Power output Terminal post
Installation In-built and remote cable connected
Remote conrol w/ cable(M) 12
Manufacturer OUMA
Auto function Manual/auto protection/shutdown, water temperature alarm, oil pressure alarm
Parameter display AC voltage, frequency, running hour, charging voltage
