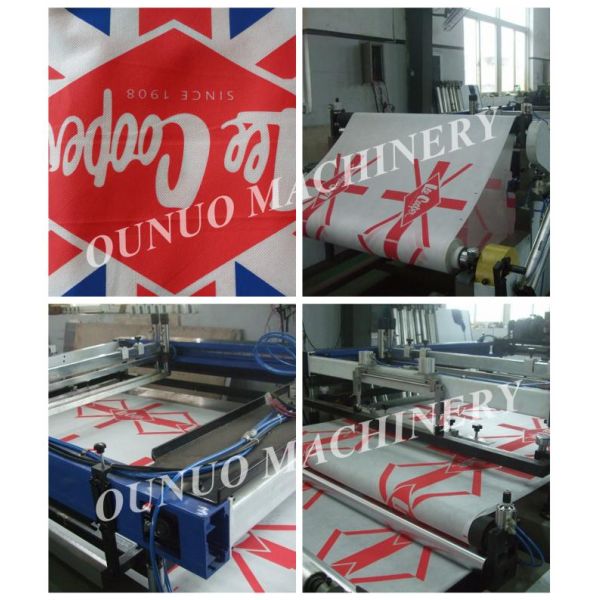

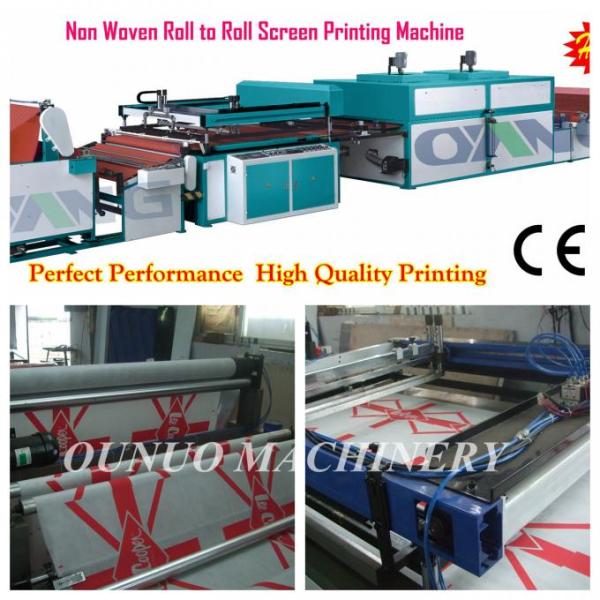

Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour
Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour
Specifications
Brand Name :
OUNUO
Model Number :
FB-NWF12010II
Certification :
CE,ISO9001:2000
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30set/month
Delivery Time :
30 days
Packaging Details :
wooden case
Max.Printing Size :
1200×1100mm
Printing Speed :
500-1500m/h
Thickness range :
45g/m²~100g/m²
Max.feeding width :
1250mm
Description

Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour

Performance and Features:

1. Automatic feeding printing,drying and collecting.Save labors and overcome restraints caused by weather conditions.

2. With Balanced pressure,with high ink thickness.Suitable for printing on high-quality non-woven products.

3. Applied to various sizes of printing screen frames.

4. Big-size printing area to print multiply layouts.Improve work efficiency.

5. Before and after full page printing,effective space between images can be reduced to

minimum 1 cm.Effectively reduce the material waste.

6. High precision of printing controlled by servo motor.

7. Connected with non-woven bag making machine to produce the bag automatically.Greatly improve work efficiency.

Main technical parameters:

Model FB-NWF12010II
Max.Printing Size 1200×1100mm
Nonwoven Fabric Rolls Width 1250mm
Nonwoven Fabric Thickness 45g/m²~100g/m²
Max.Diameter of Rolls 800mm
Printing Speed 500-1500m/h
Voltage&Total Power 380V 3P4N 24Kw
Machine Size 10500×1800×1720mm
Basic Structure Feeding Part+Printing Part+Drying Part+Collegting Part
Weight 2000kg

Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour

Automatic double color non woven fabric roll to roll screen printing machine , 1500m/hour
