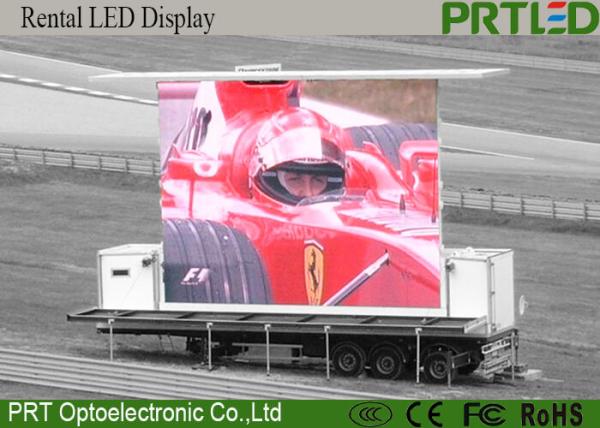

Energy Saving Truck Mounted LED Display P10 Mobile LED Display Truck
Energy Saving Truck Mounted LED Display P10 Mobile LED Display Truck
Specifications
Brand Name :
PRT
Model Number :
DIP346 P10
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen China
MOQ :
10 sq.m
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case(4 cabinets into a case)
Product Name :
P10 led sign
LED type :
DIP346 1r1g1b
Module density :
16 dots x 16 dots
Cabinet size :
960 mm x 960 mm or customized
Driving mode :
1 / 4 scan
IP Grade :
Waterproof IP 65
Description

Truck Mounted Outdoor Advertising LED Display , Mobile Traffic Control LED Sign



Features:

1. High Brightness: We are a professional factory which specialises in producting Outdoor Full color LED Display and LED Module, The Brightness is at least 7500cd/sq.m;
2. Waterproof: The Standard of LED Cabinet is IP65, which it can protect the rain and dust into the screen. You can fixed install the screen in the rainy day.
3. Wide Used in the outdoor: Widely used in Public, street advertising, shopping mall. plaza station, Building billboard, expressway,ect
4. Energy Saving and Pro-Environment: Such as P10 outdoor Full color led display,100sq.m; If it is spent for 14hours/day, total 365 days/year. The Energy Saving led display will be save over 10,000 hours than traditional screen each year.

Specifications:

The specifications of modules
Items LED Display Parameter
Product Model P10 Full Color Led Module
Module size 320mm*160mm or 160mm * 160 mm
Pixel pitch 10mm
Pixel density 10000dots/m2
Pixel configuration 1R1G1B
Module resolution 32dots(W)*16dots or 16 dots * 16 dots
Module maximum power consumption 20W
Module Thickness 25CM
Module Weight 0.45kg
Driving method Constant Current Driving
Scanning method 1/4 scan
Interface HUB75
Brightness 7500cd/m2
The specifications of cabinets
Cabinet size 960mm*960mm or customized
Module quantity 18pcs/36pcs
Power supply 5V/40A 5V/60A 5V80A
Cabinet resolution 96*96dots
Optimal viewing distance 10M~70M
Optimal viewing angle 160°(W) 120°(H)
RHWorking temperature (Work :-20°C~+50°C)
System operating humility 10%-95%
The specifications of power supplier
Operating Voltage AC220V±10%
Average power consumption 350W/H
Maximum power consumption ≤700W/m2
Electric current ≤20mA(single LED)
The specifications of control card
Control Panels Pentium4 or above
Operating system WIN98/2000/NT/XP
Control model Synchronization with PC or Asynchronization with USB
The specifications of the main technical parameters
Driving device Constant Current Driving
Refresh rate ≥920HZ
Grey scale RGB Each 256, can display 16.7M colors)
MTBF 9000hours
Power switch Automatic Switch
Display Mode 800*600/1024*768/1280*900

what is difference between SMD and DIP led display?

Surface Mounted Device LED is short for SMD, through the SMT technology encapsulating diode, soldering this lamp on the PCB board surface. Widely used for indoor projects.

Dual in-line Package is short for DIP, after soldering the LED lamp's feet to stable it on the PCB., so it names of DIP LED. Mainly used for outdoor projects.

The comparison of SMD and DIP. SMD with RGB 3 colors in 1 LED cup technology, with better colors uniformity, and wider viewing angle, usually, SMD can be done the small pitch pixels,
so for some high resolution LED screen, SMD is the best choice.

DIP technology with LED foot in PCB board, then the heat dissipation is better than SMD, and higher brightness, even under the sunshine, DIP LED screen can also show the contents well.
That is the reason why people like DIP for outdoor used.
